Starting (w/o Smart Key System): Notes

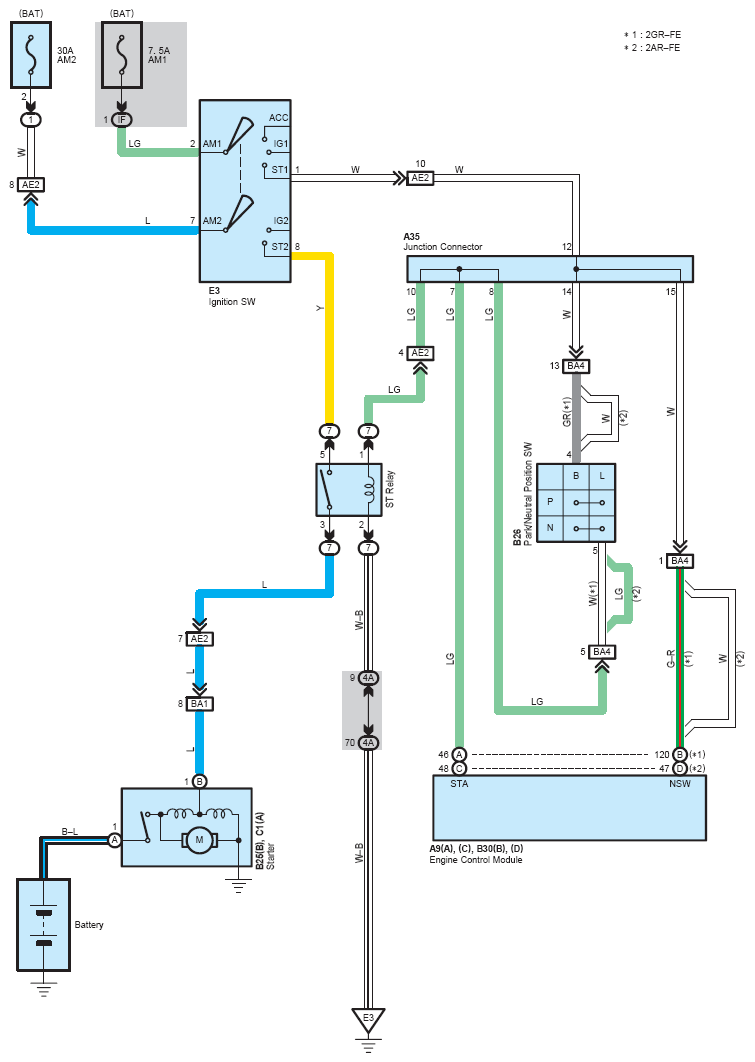

Fig 1: Starting (w/o Smart Key System) Wiring Diagram

G07130488

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
