Seat Belt Warning: Notes

Fig 1: Seat Belt Warning System Wiring Diagram (1 Of 2)
G07130560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

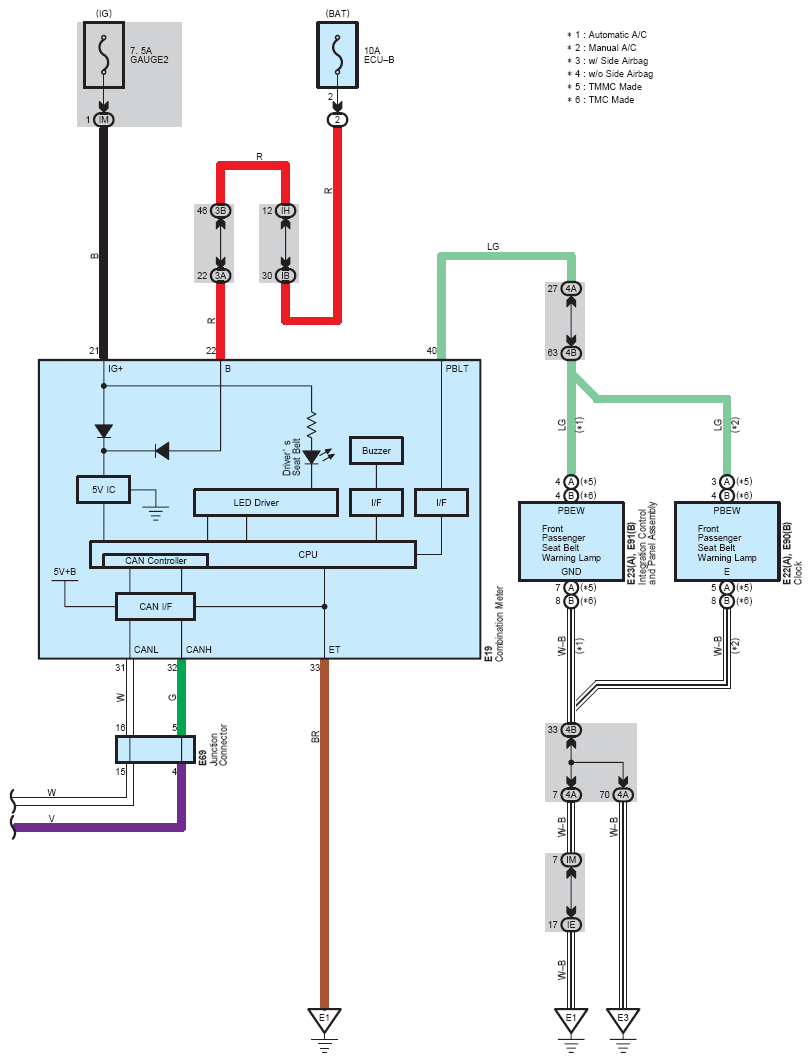

Fig 2: Seat Belt Warning System Wiring Diagram (2 Of 2)
G07130561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
