Ignition (2GR-FE): Notes

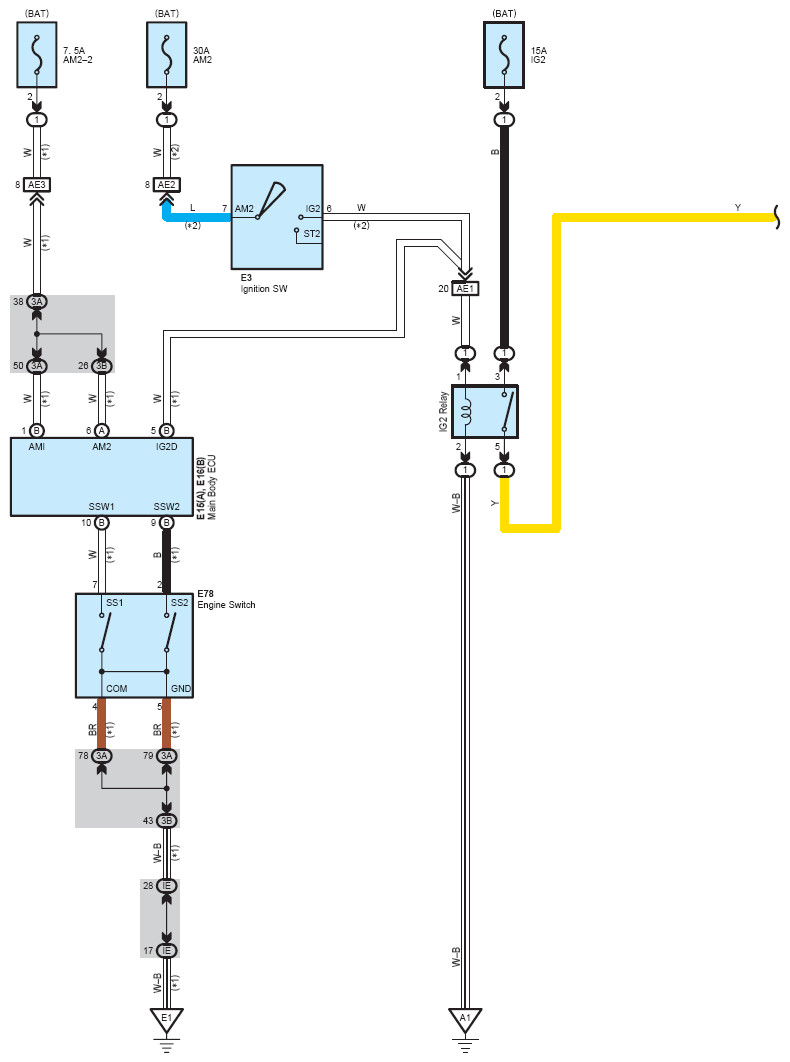

Fig 1: Ignition (2GR-FE) System Wiring Diagram (1 Of 3)
G07130489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

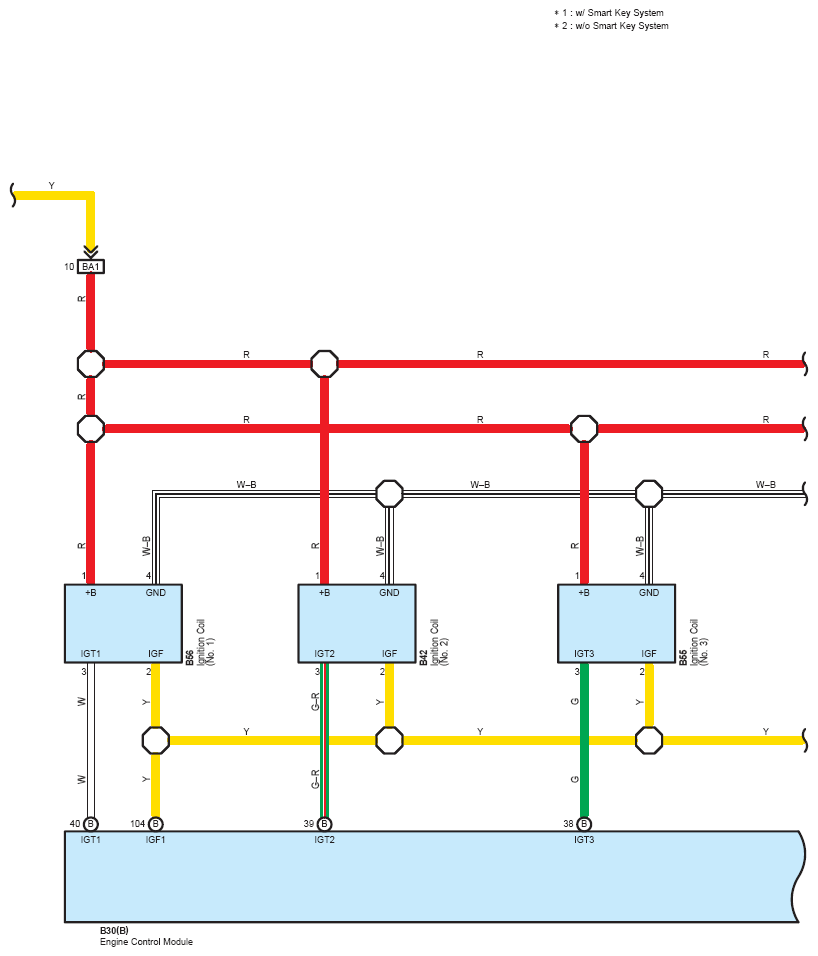

Fig 2: Ignition (2GR-FE) System Wiring Diagram (2 Of 3)
G07130490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

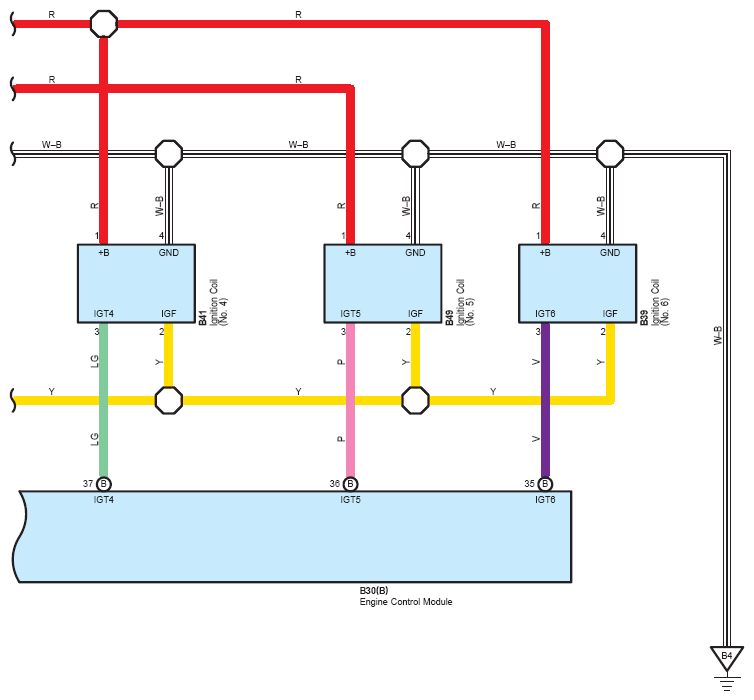

Fig 3: Ignition (2GR-FE) System Wiring Diagram (3 Of 3)
G07130491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
