OEM System Circuits: Horn: Notes

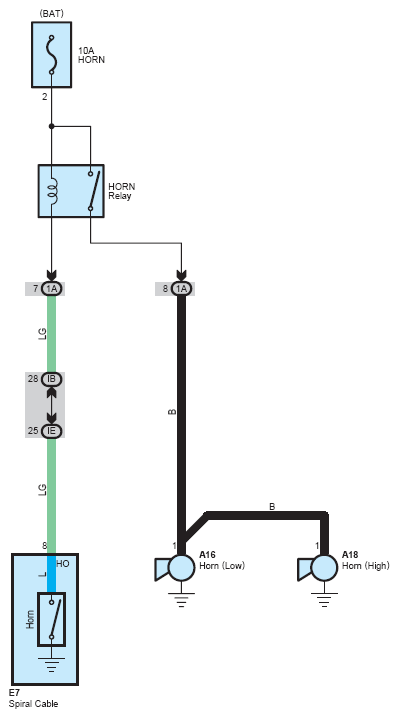

Fig 1: Horn System Wiring Diagram
G07130631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
