Front Wiper and Washer: Notes

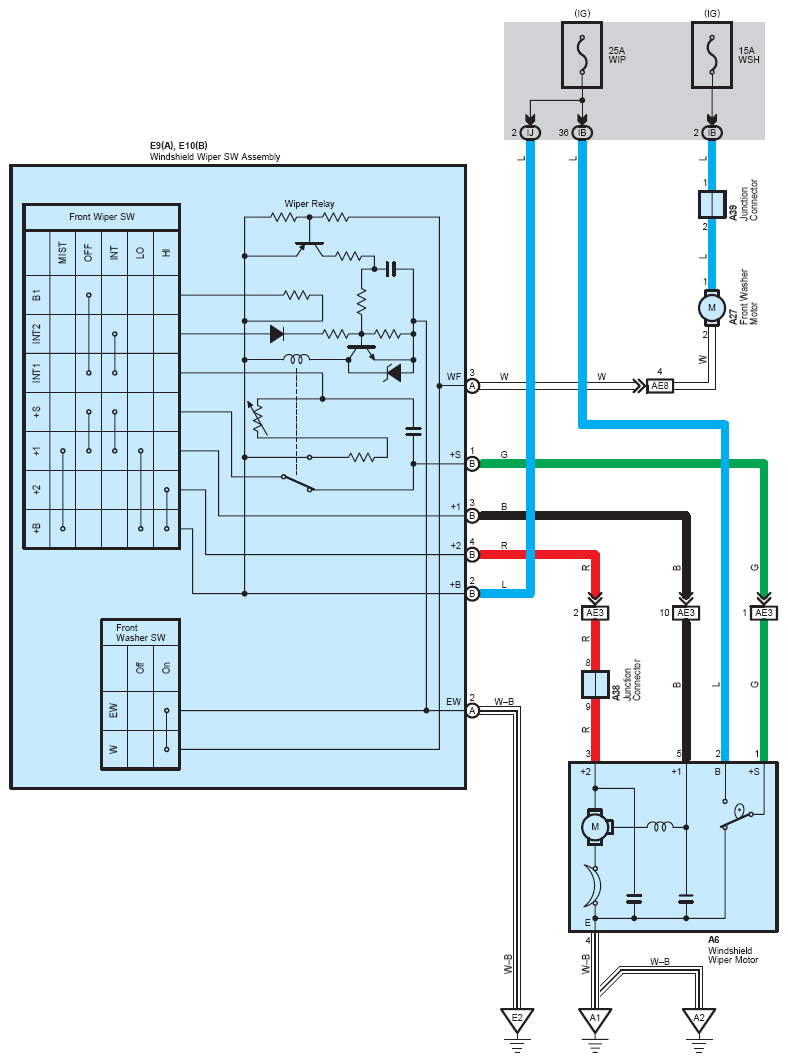

Fig 1: Front Wiper And Washer System Wiring Diagram

G07130567

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
