Cruise Control (2GR-FE): Notes

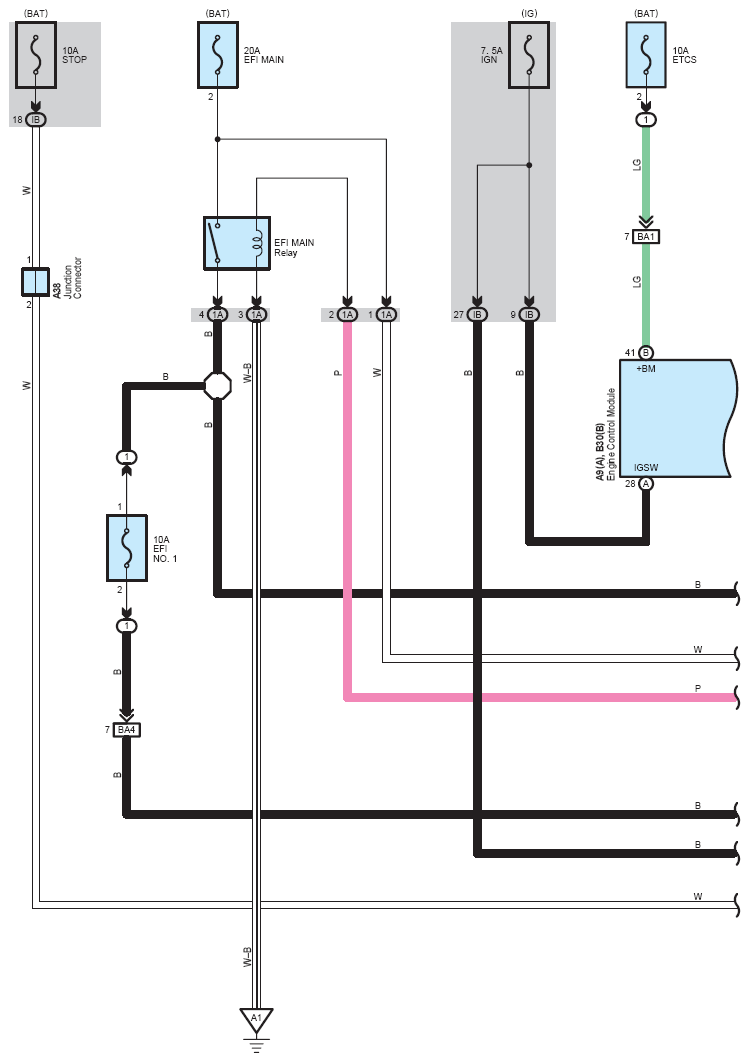

Fig 1: Cruise Control (2GR-FE) System Wiring Diagram (1 Of 6)
G07130596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Cruise Control (2GR-FE) System Wiring Diagram (2 Of 6)
G07130597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

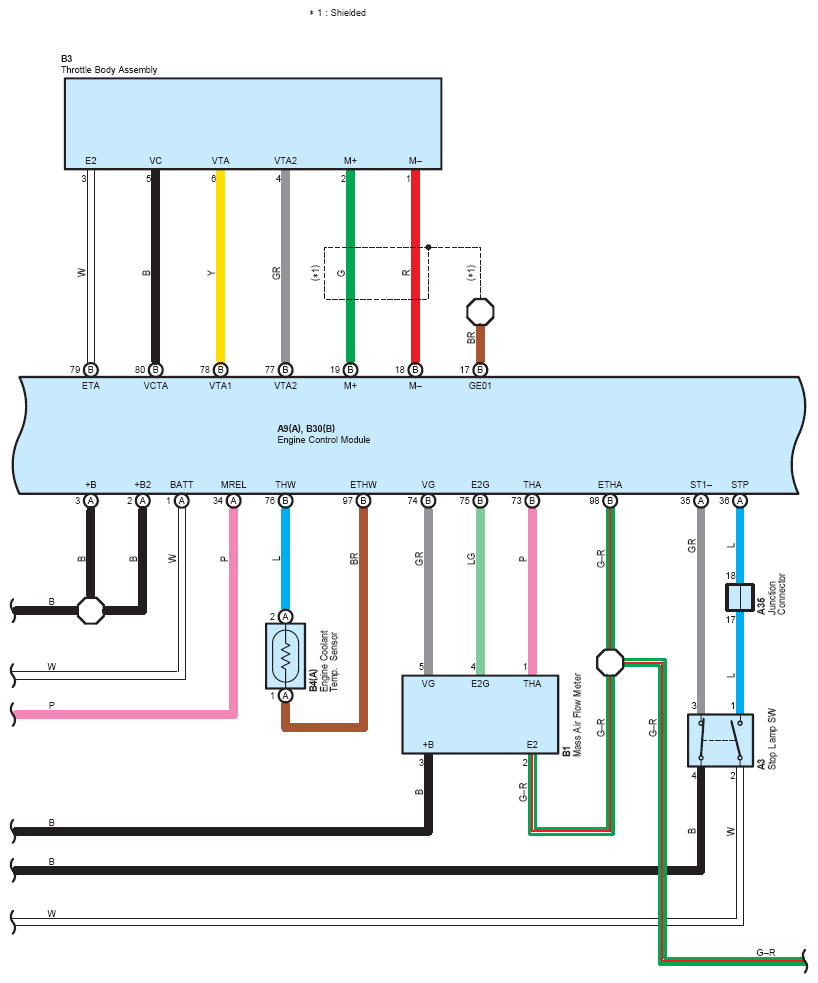

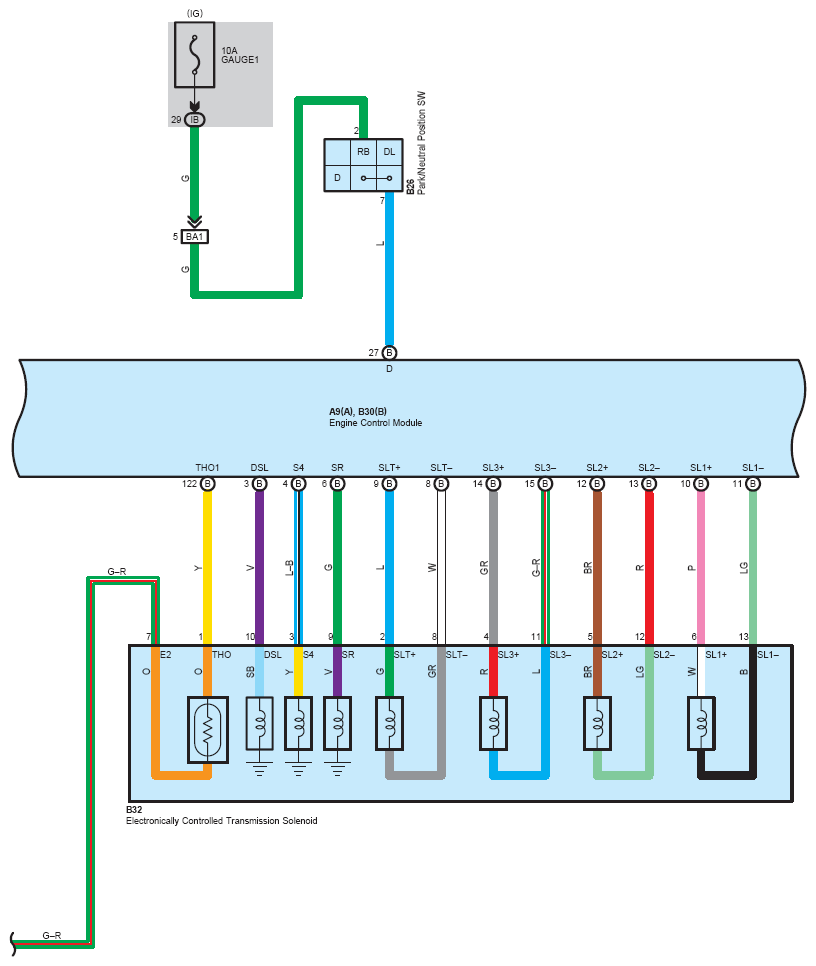

Fig 3: Cruise Control (2GR-FE) System Wiring Diagram (3 Of 6)
G07130598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

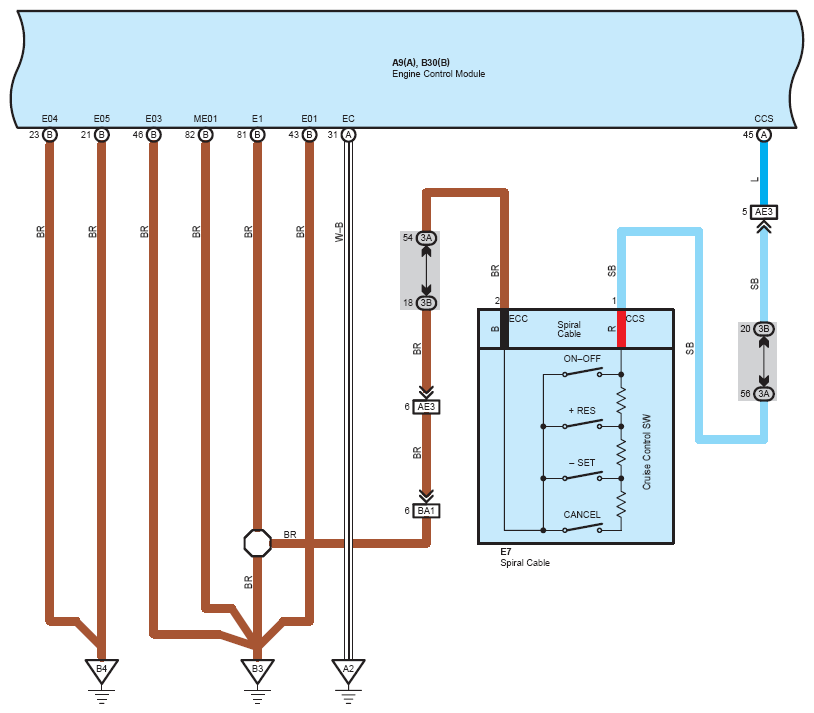

Fig 4: Cruise Control (2GR-FE) System Wiring Diagram (4 Of 6)
G07130599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

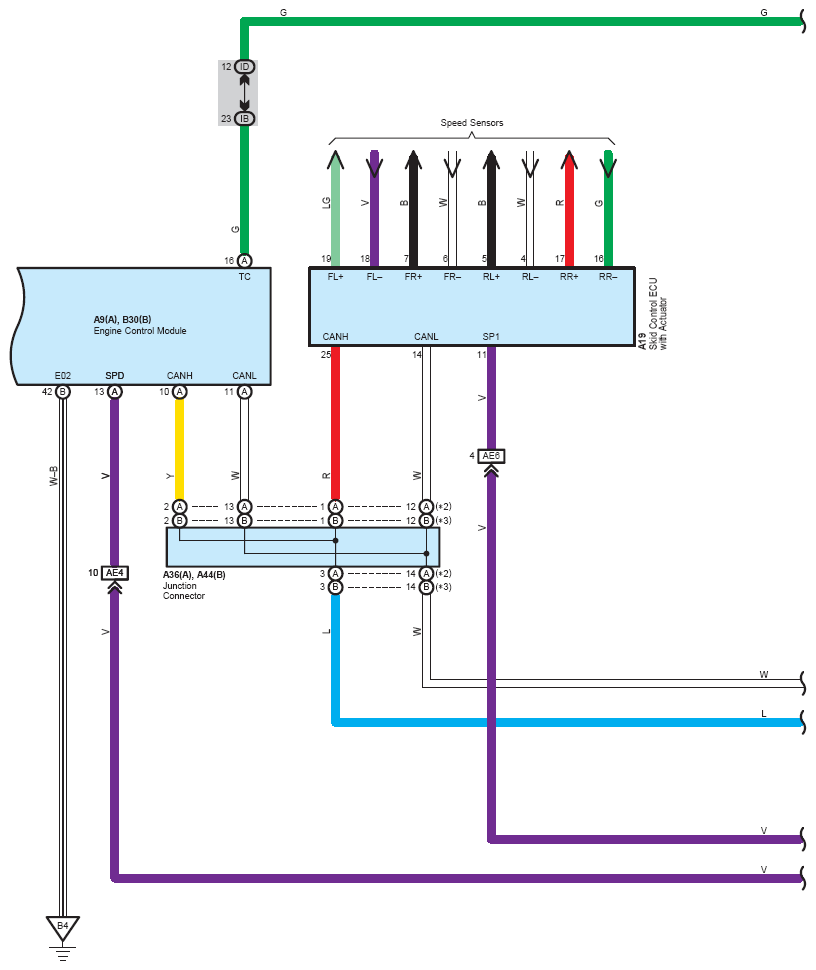

Fig 5: Cruise Control (2GR-FE) System Wiring Diagram (5 Of 6)
G07130600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

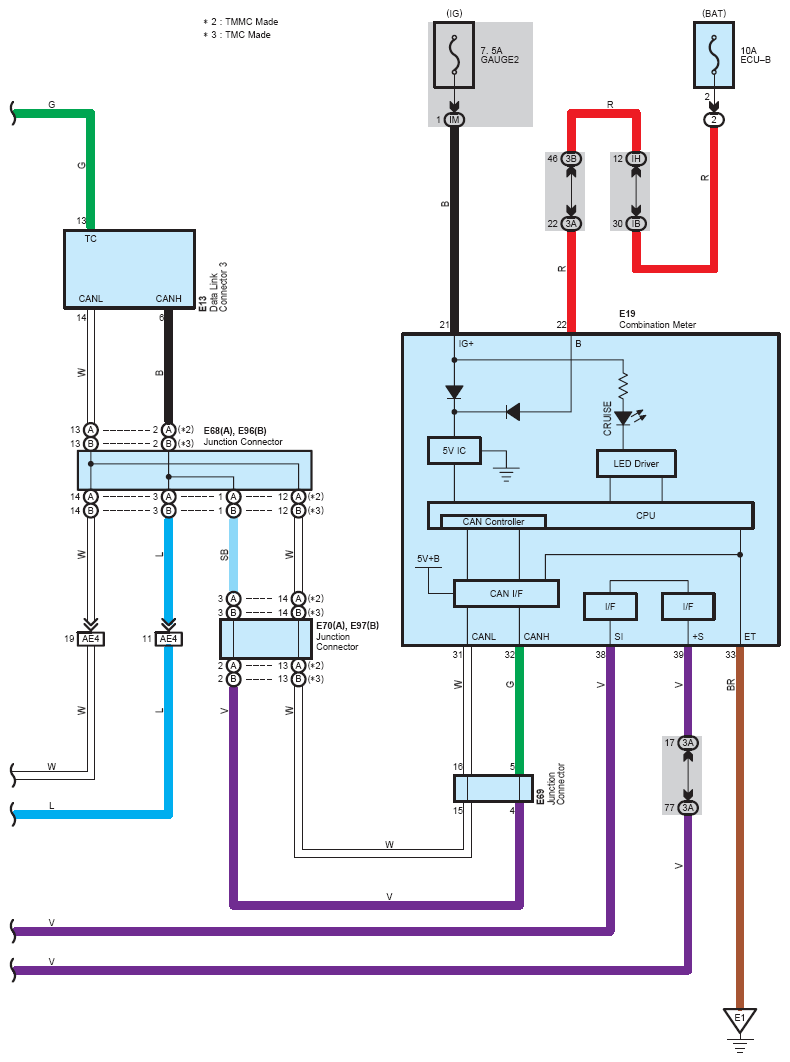

Fig 6: Cruise Control (2GR-FE) System Wiring Diagram (6 Of 6)
G07130601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
