Yaw Rate And Deceleration Sensor: Components: Illustration

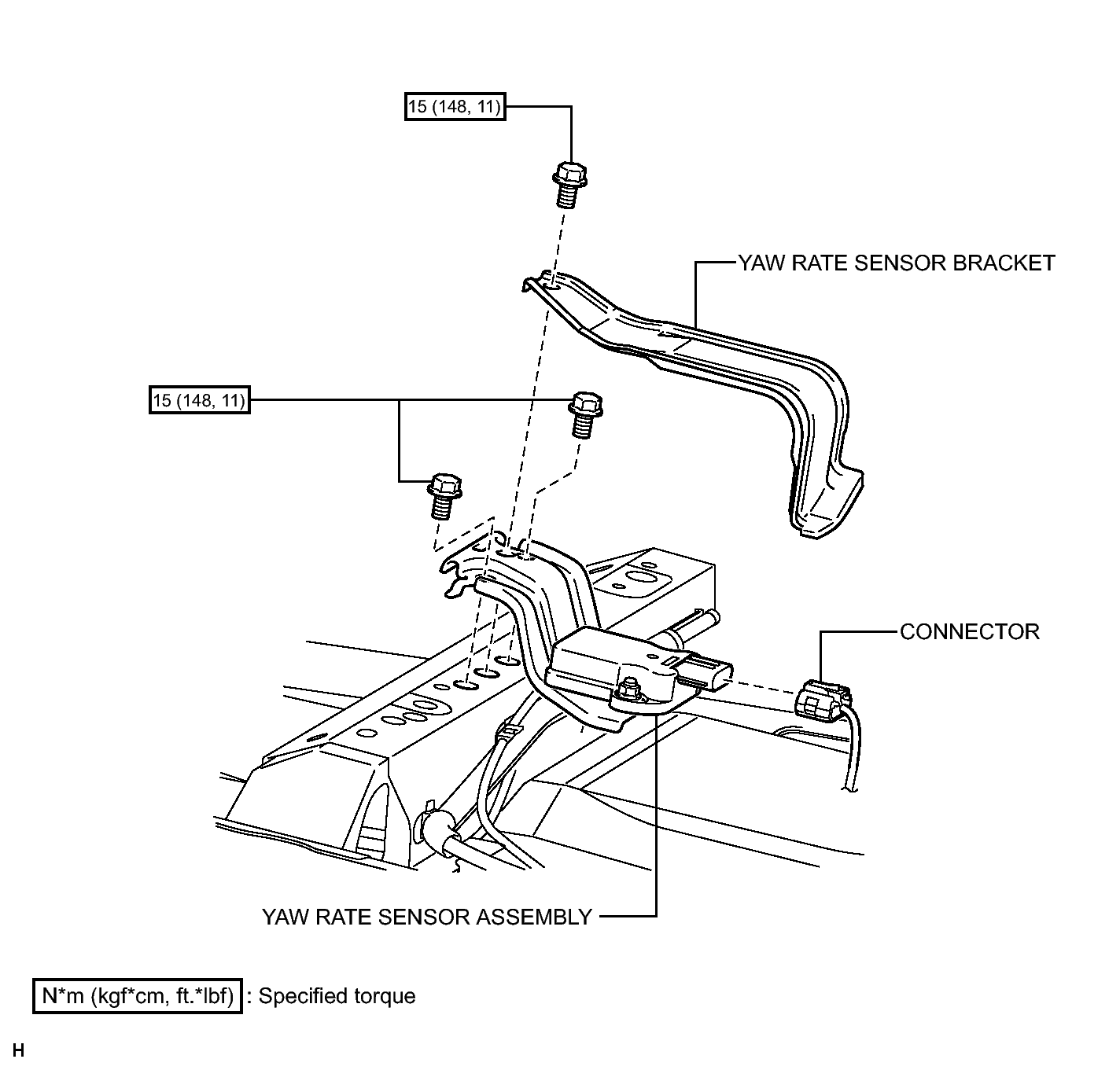

Fig 1: Identifying Yaw Rate And Deceleration Sensor Replacement Components With Torque Specifications
GTY235584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
