Taillight and Illumination: Notes

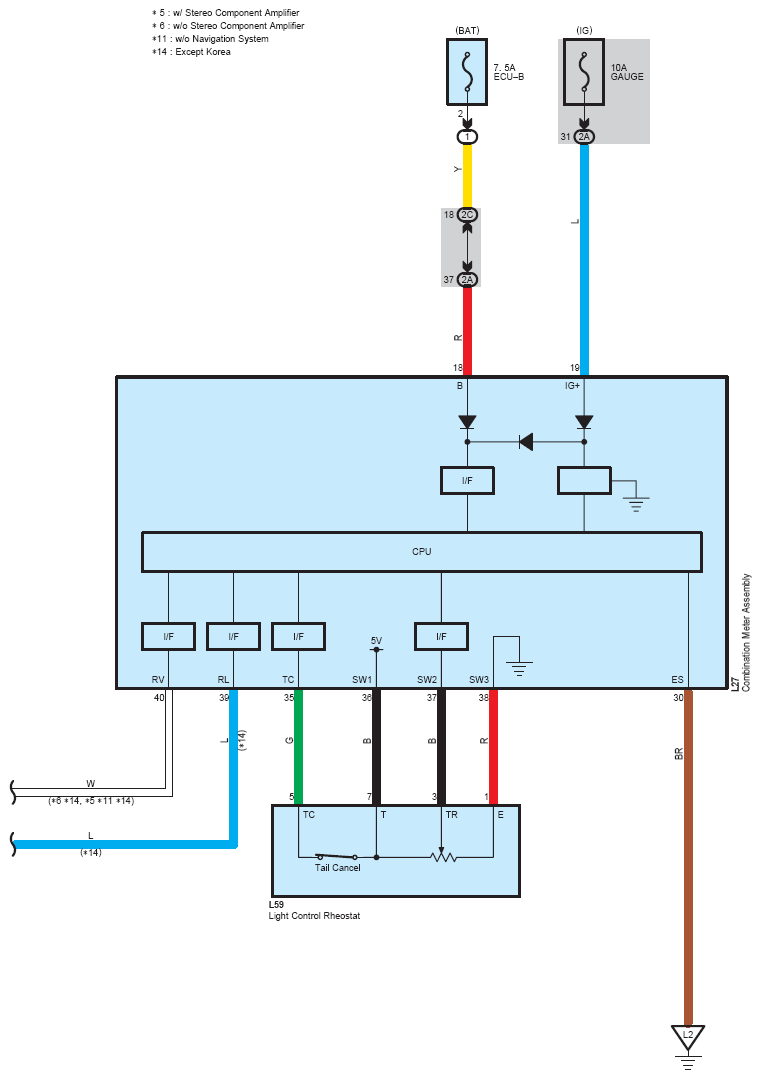

Fig 1: Taillight And Illumination System Wiring Diagram (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

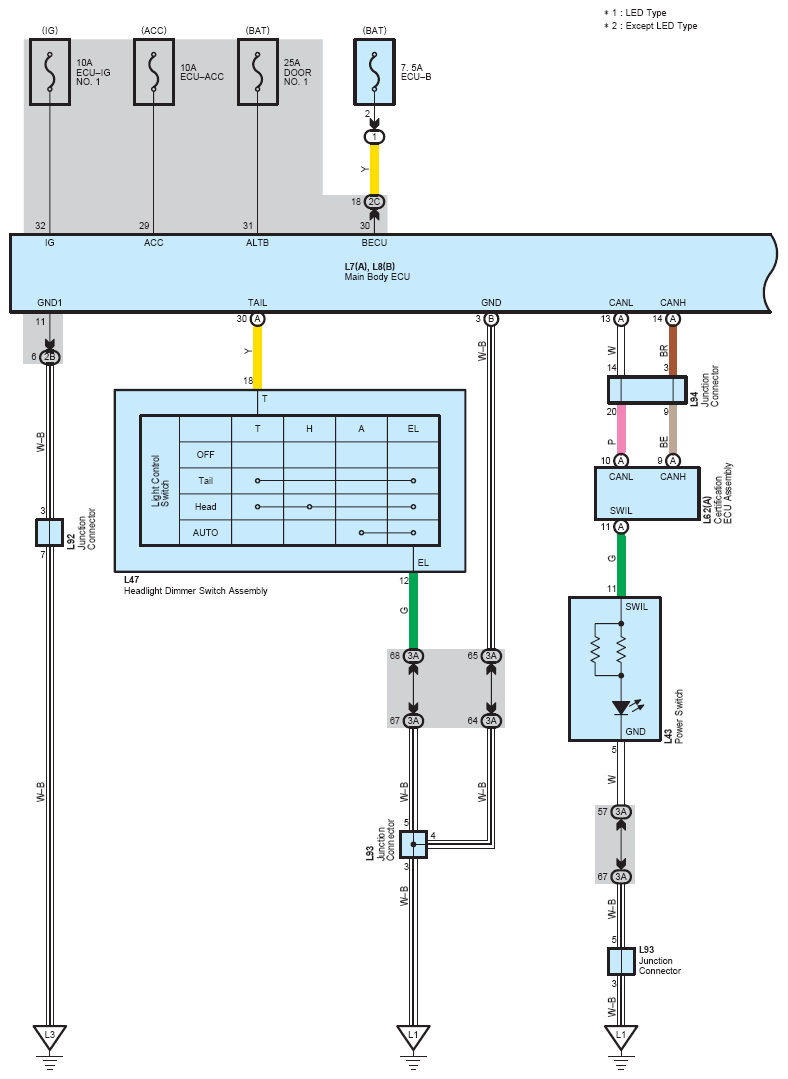

Fig 2: Taillight And Illumination System Wiring Diagram (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

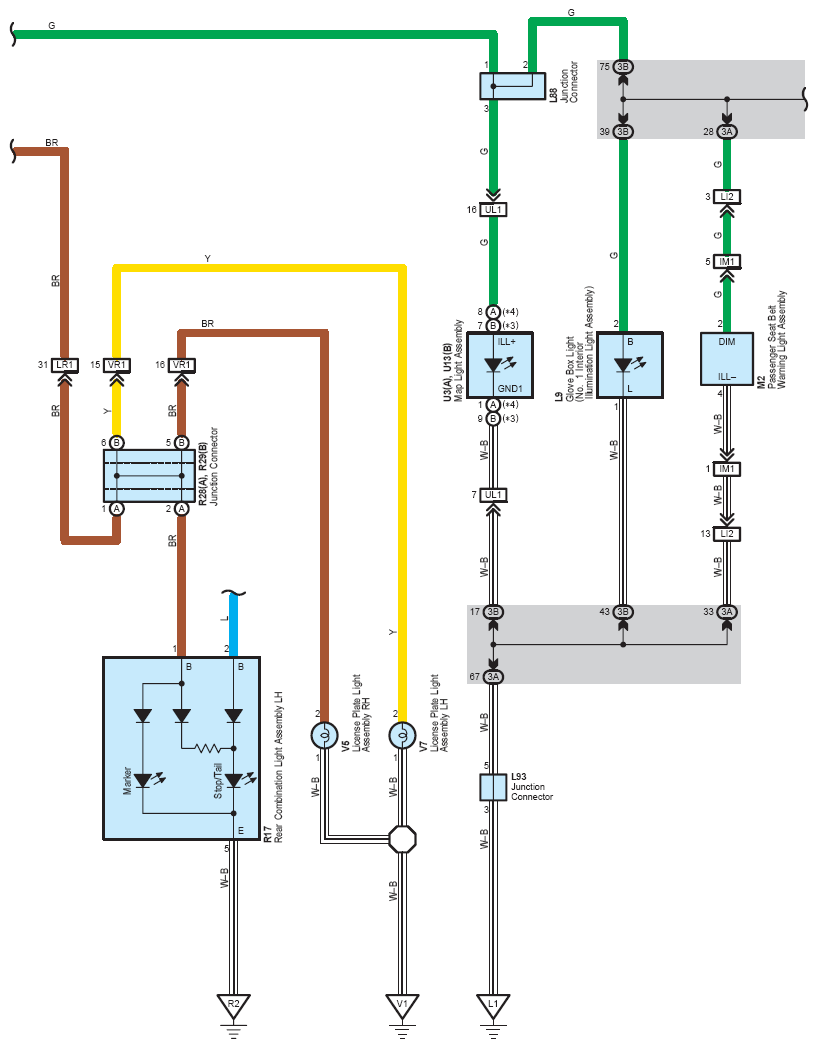

Fig 3: Taillight And Illumination System Wiring Diagram (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

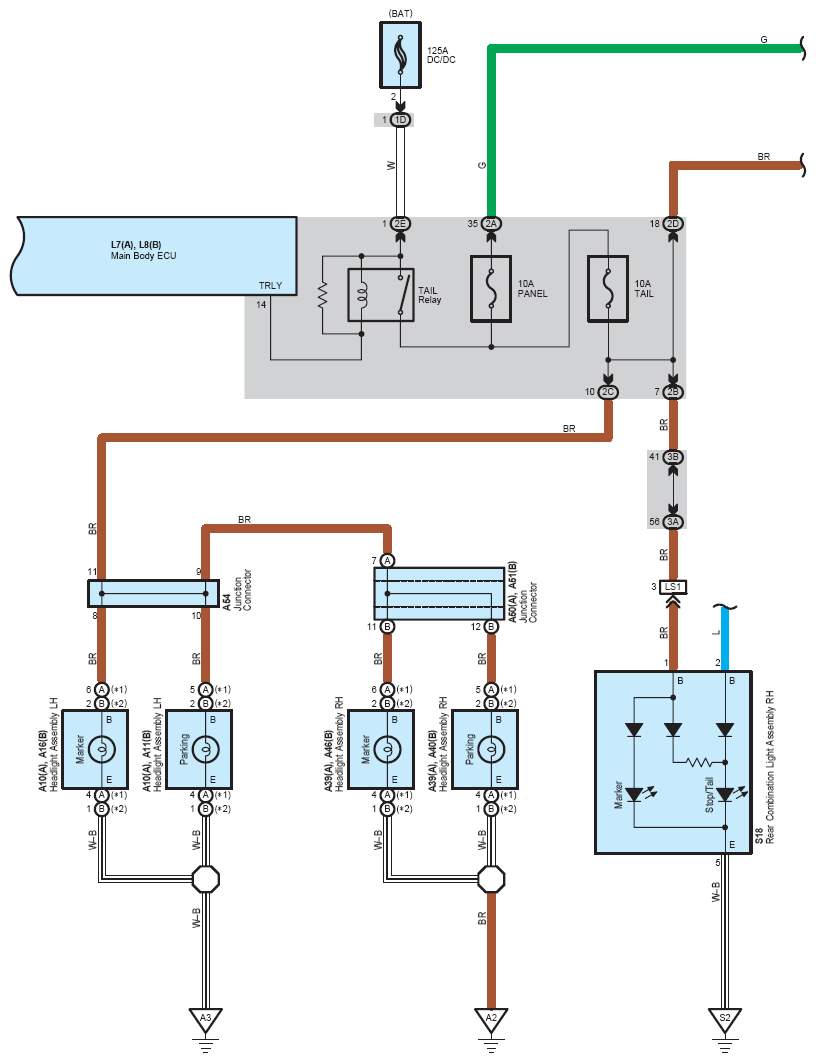

Fig 4: Taillight And Illumination System Wiring Diagram (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

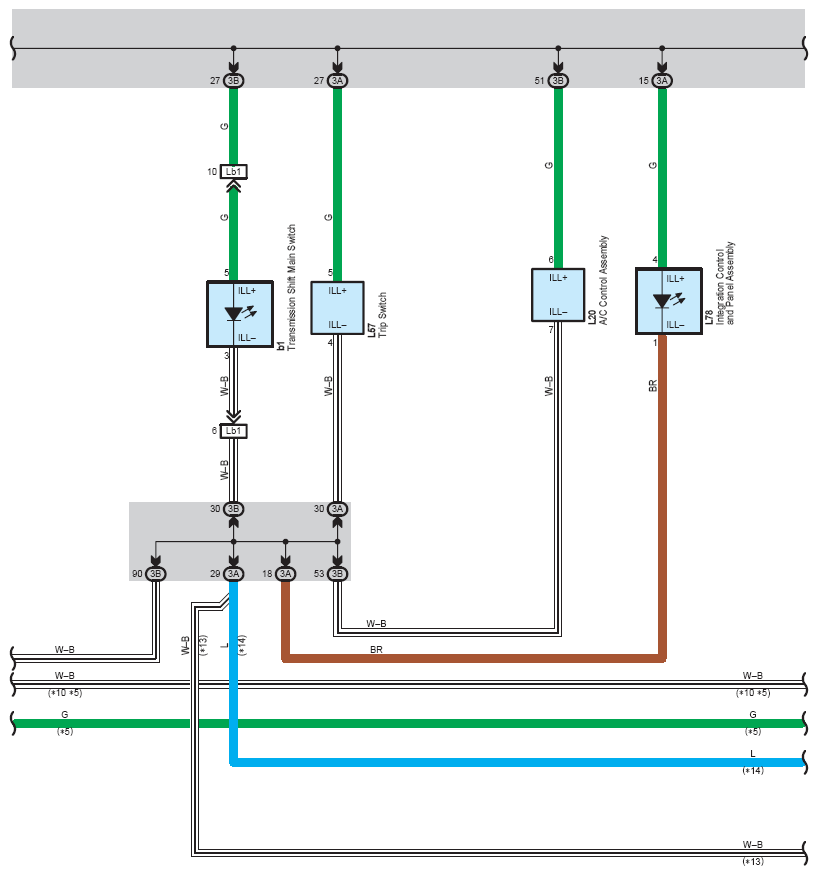

Fig 5: Taillight And Illumination System Wiring Diagram (5 Of 7)

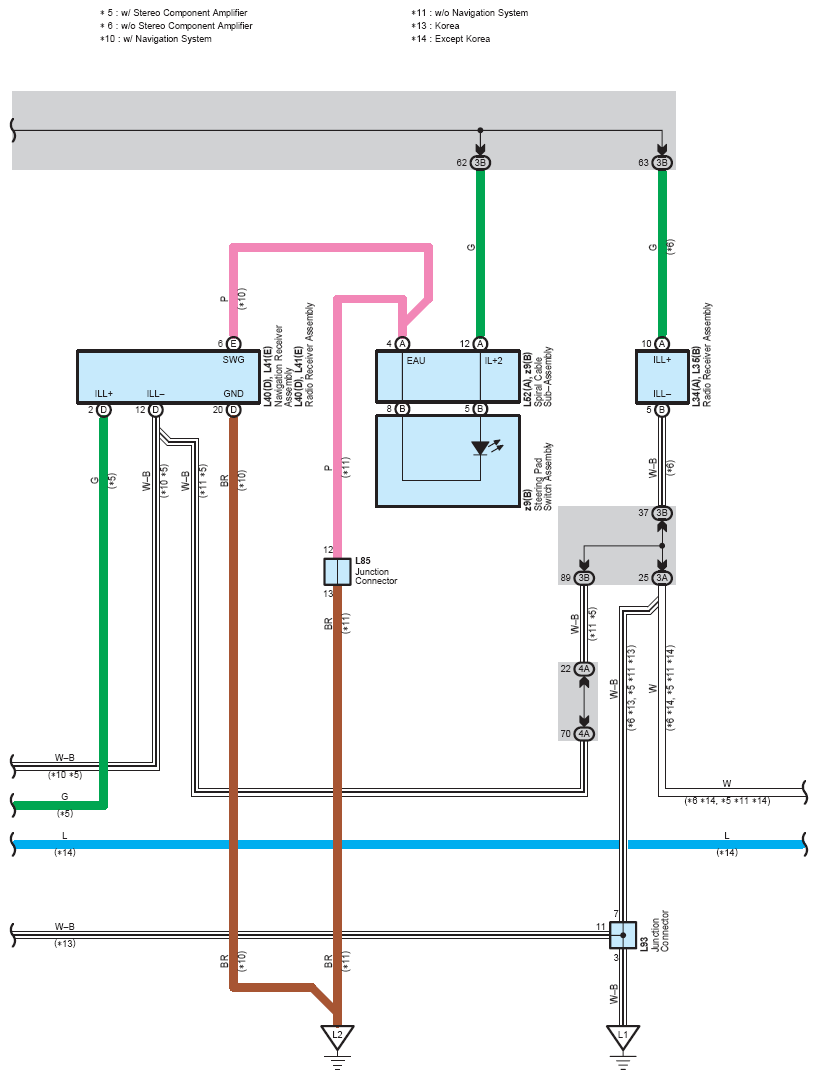

Fig 6: Taillight And Illumination System Wiring Diagram (6 Of 7)

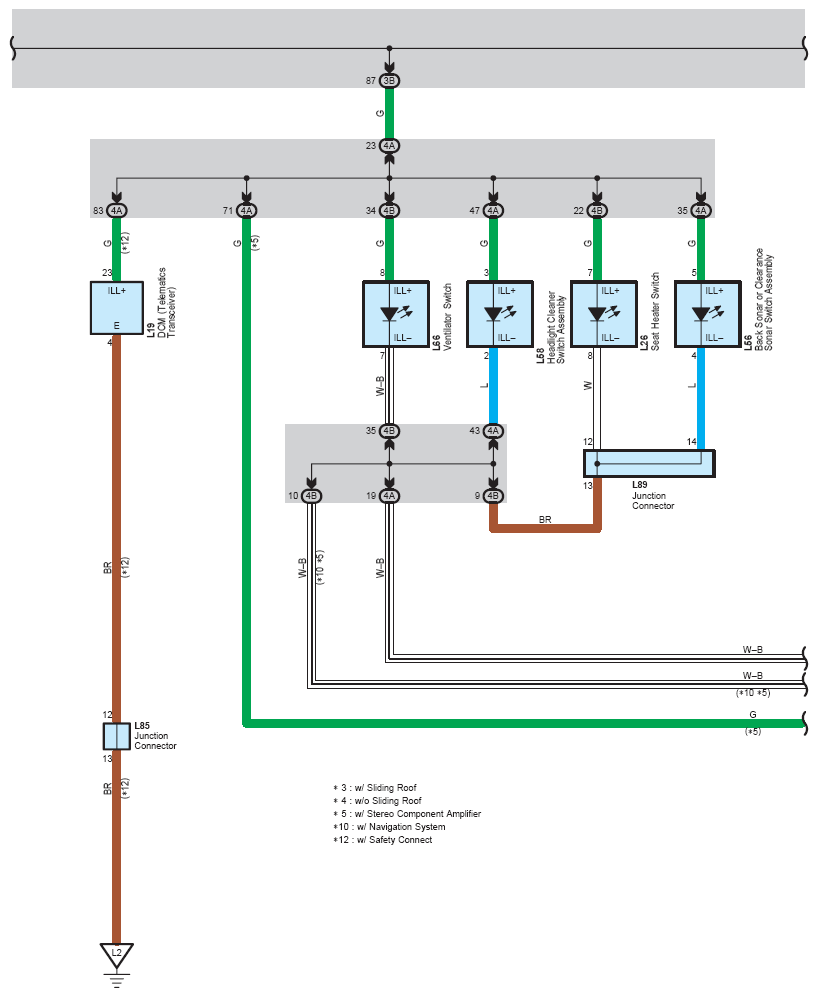

Fig 7: Taillight And Illumination System Wiring Diagram (7 Of 7)
