Sound Signal Circuit between Navigation Receiver Assembly and Stereo Component Amplifier: Wiring Diagram

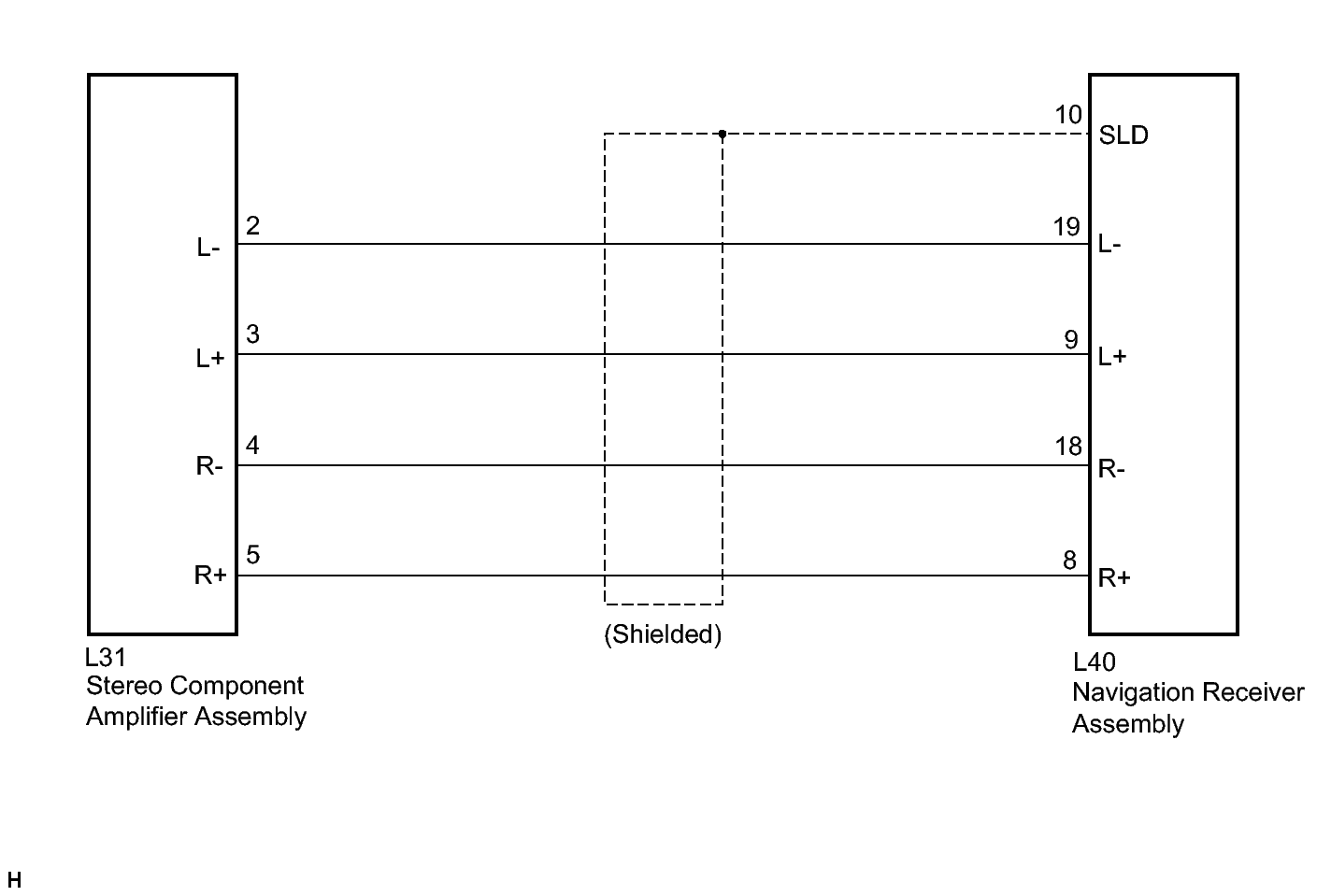

Fig 1: Identifying Navigation Receiver Assembly To Stereo Component Amplifier Wiring Diagram
GTY229362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
