CANISTER (for 2WD): Components: Illustration

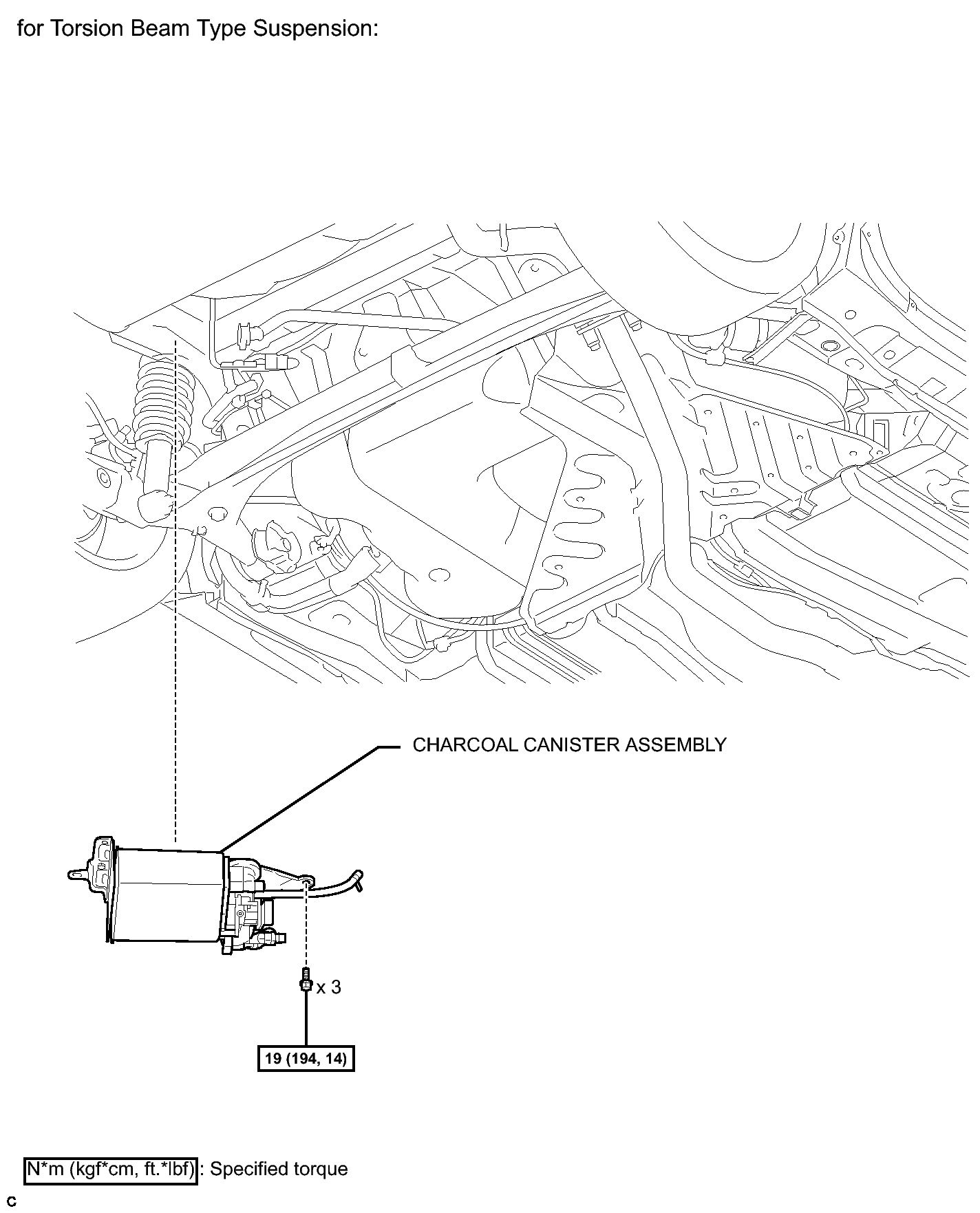

Fig 1: Identifying Canister Replacement Components With Torque Specifications (Torsion Beam Type Suspension) (For 2WD)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

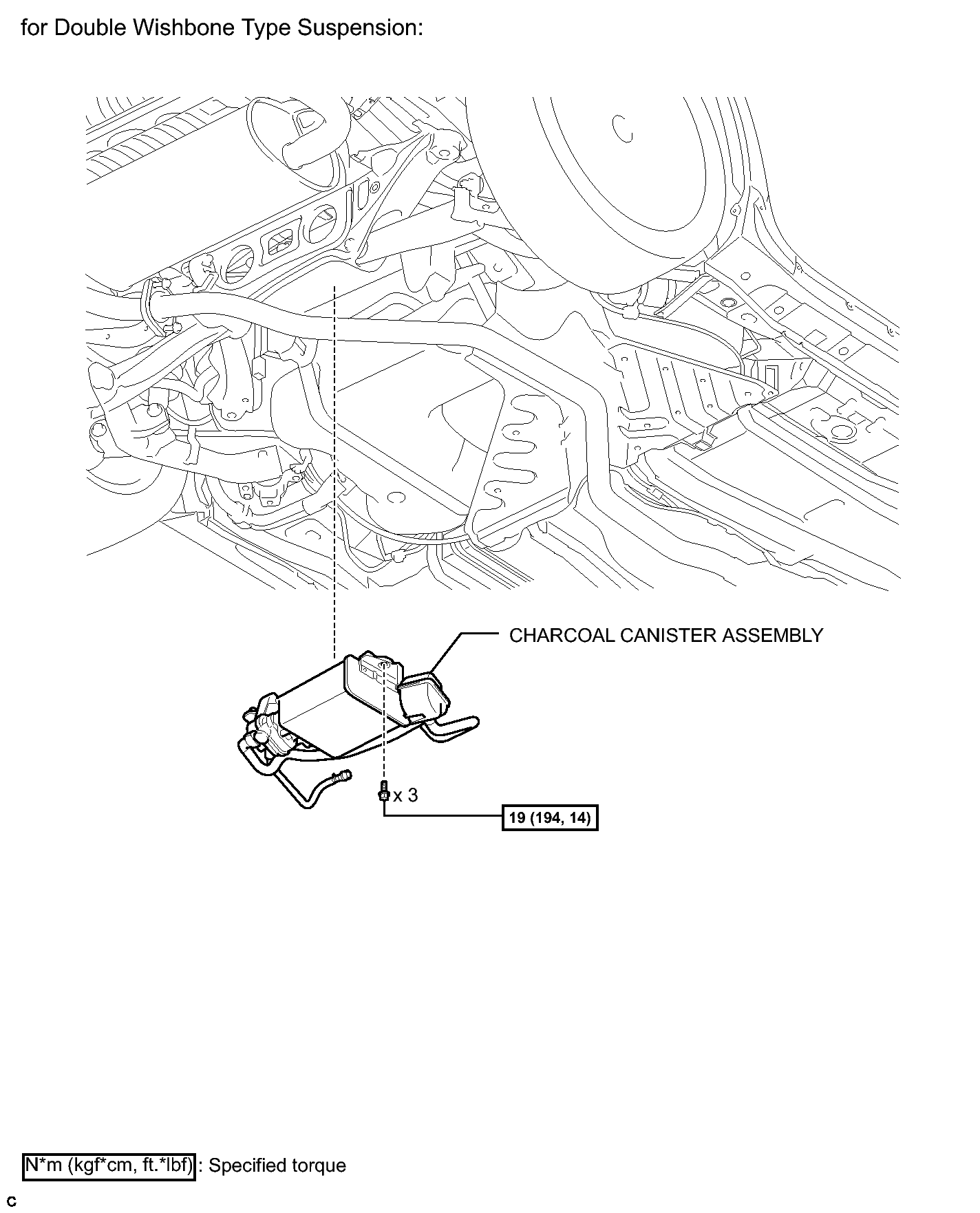

Fig 1: Identifying Canister Replacement Components With Torque Specifications (Double Wishbone Type Suspension) (For 2WD)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
