Fuel Sender Gauge Assembly: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

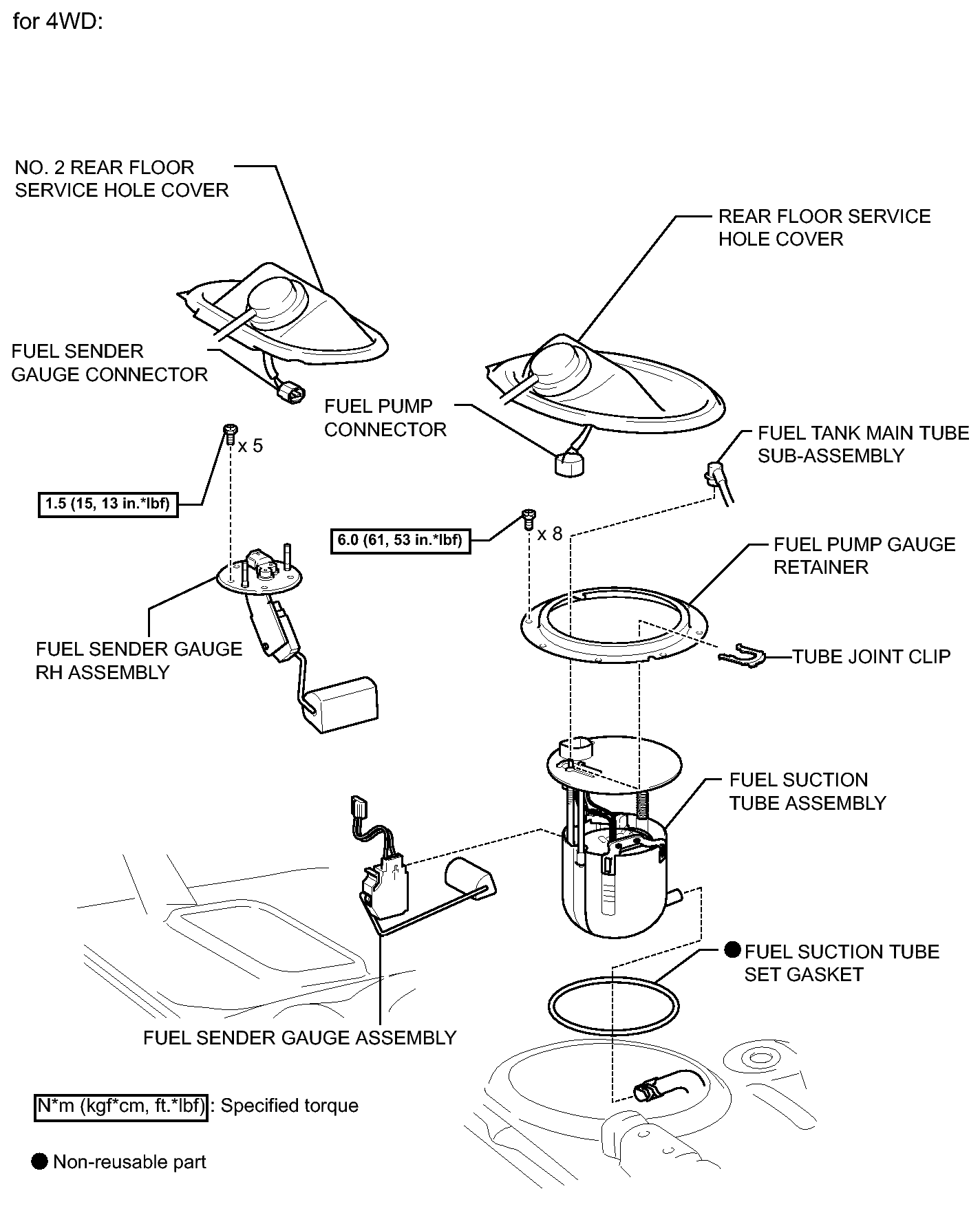

Fig 1: Identifying Fuel Sender Gauge Assembly Replacement Components With Torque Specifications (For 4WD) (1 Of 2)
GTY232309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

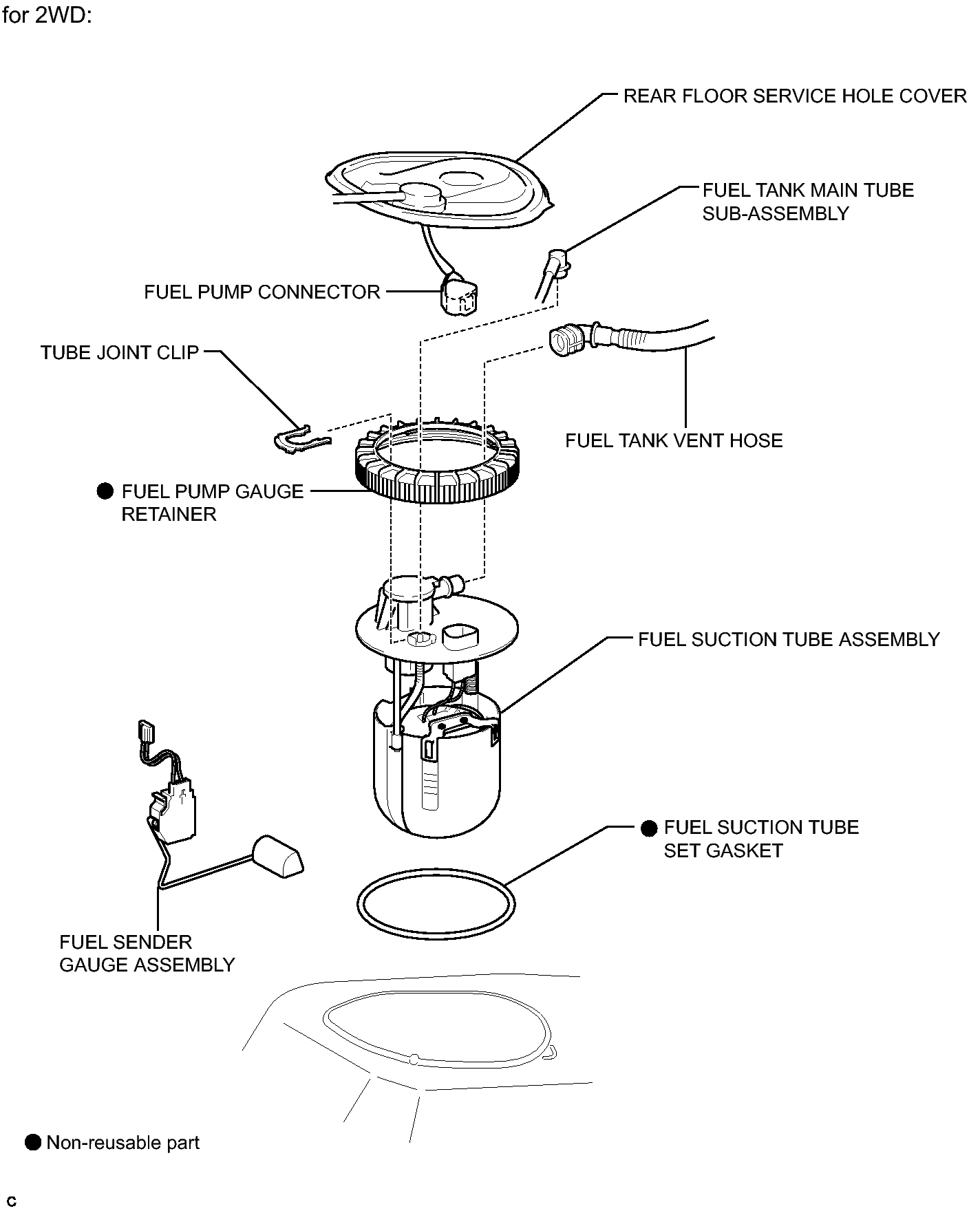

Fig 1: Identifying Fuel Sender Gauge Assembly Replacement Components (For 2WD) (2 Of 2)
GTY238235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
