Parts Location: Illustration

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

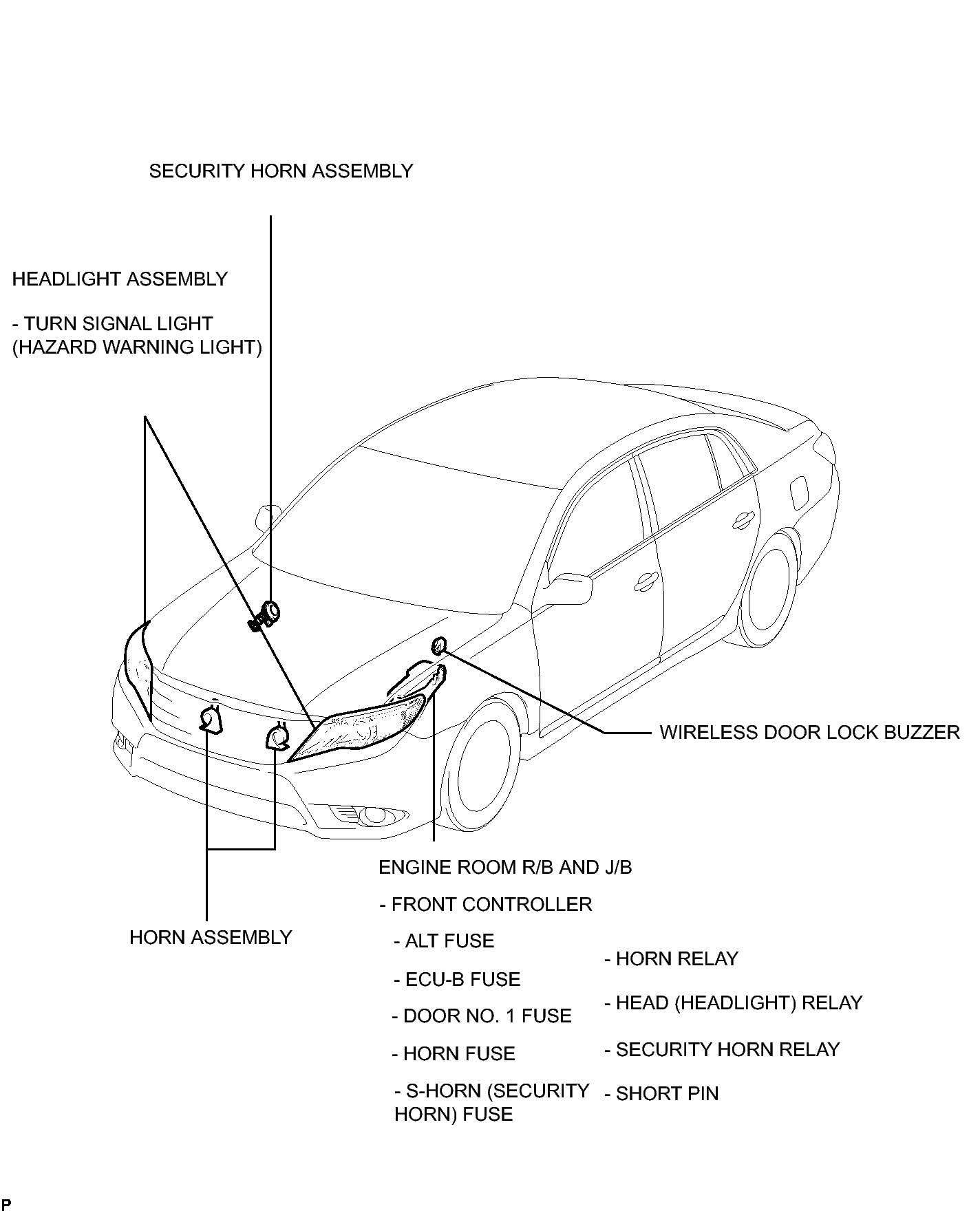

Fig 1: Identifying Wireless Door Lock Control System Components Location (1 Of 3)
GTY297496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

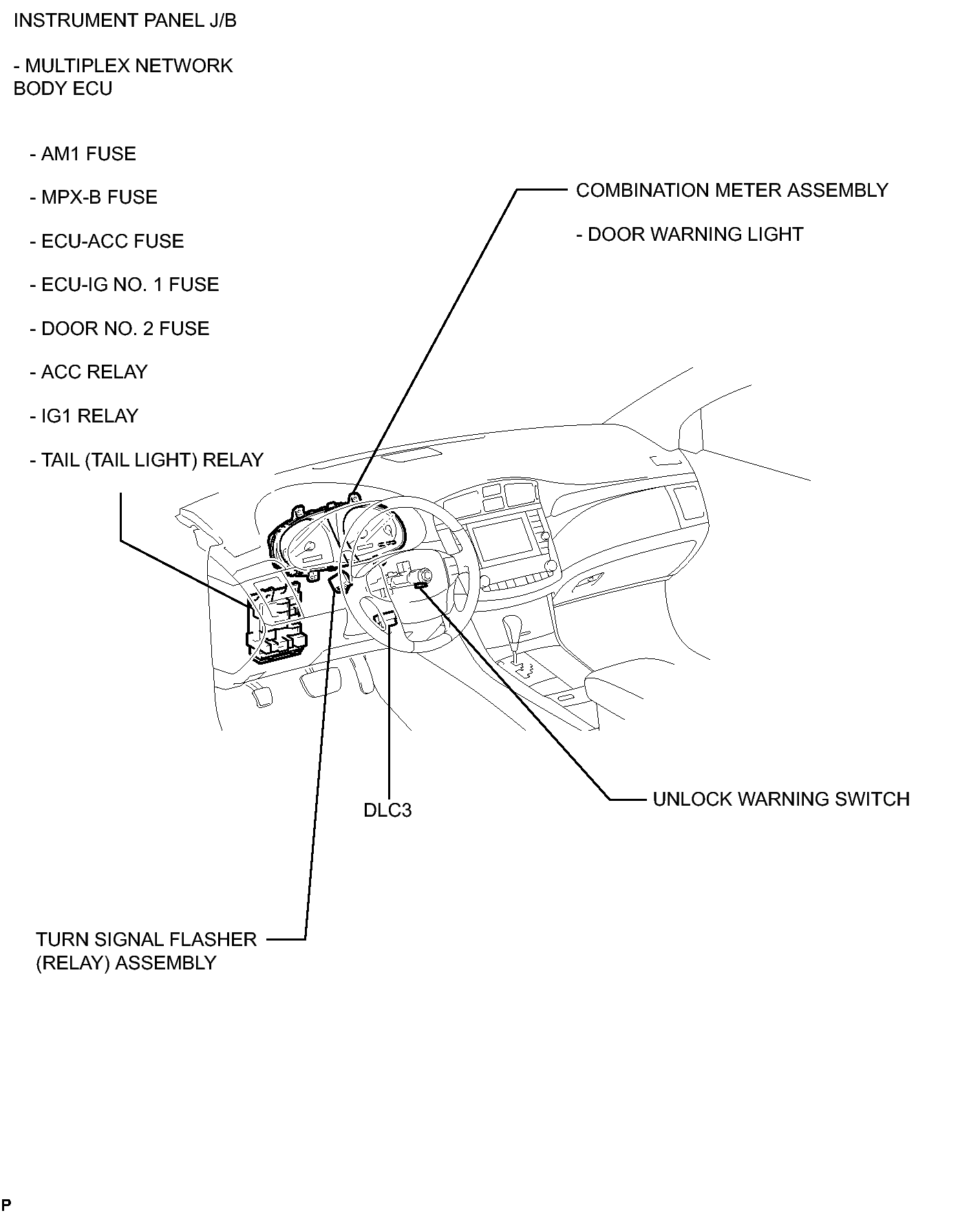

Fig 1: Identifying Wireless Door Lock Control System Components Location (2 Of 3)
GTY302270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

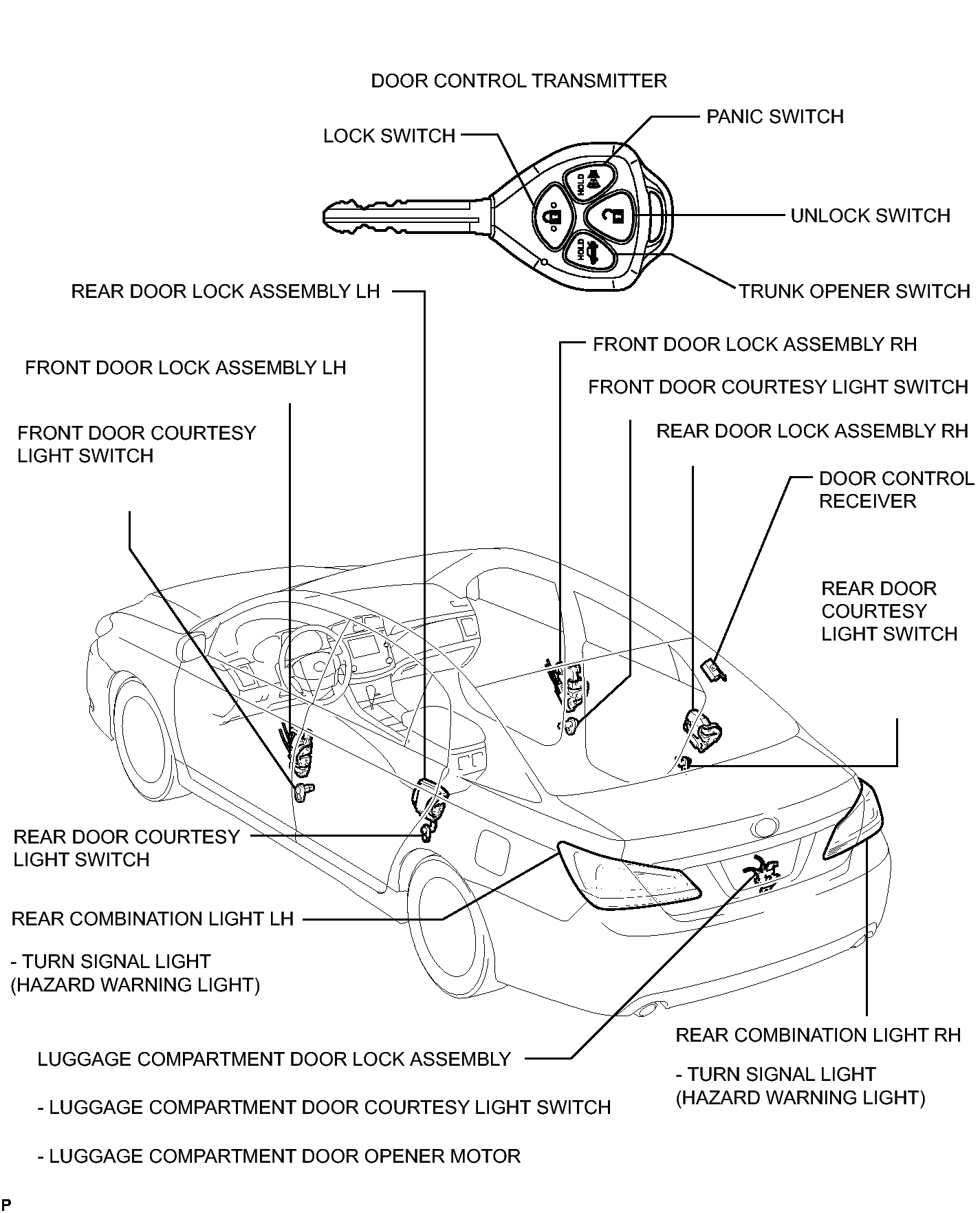

Fig 1: Identifying Wireless Door Lock Control System Components Location (3 Of 3)
GTY306479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
