Fuel Pump: Components: Illustration

Fig 1: Identifying Fuel Pump Replacement Components (1 Of 3)
GTY238312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


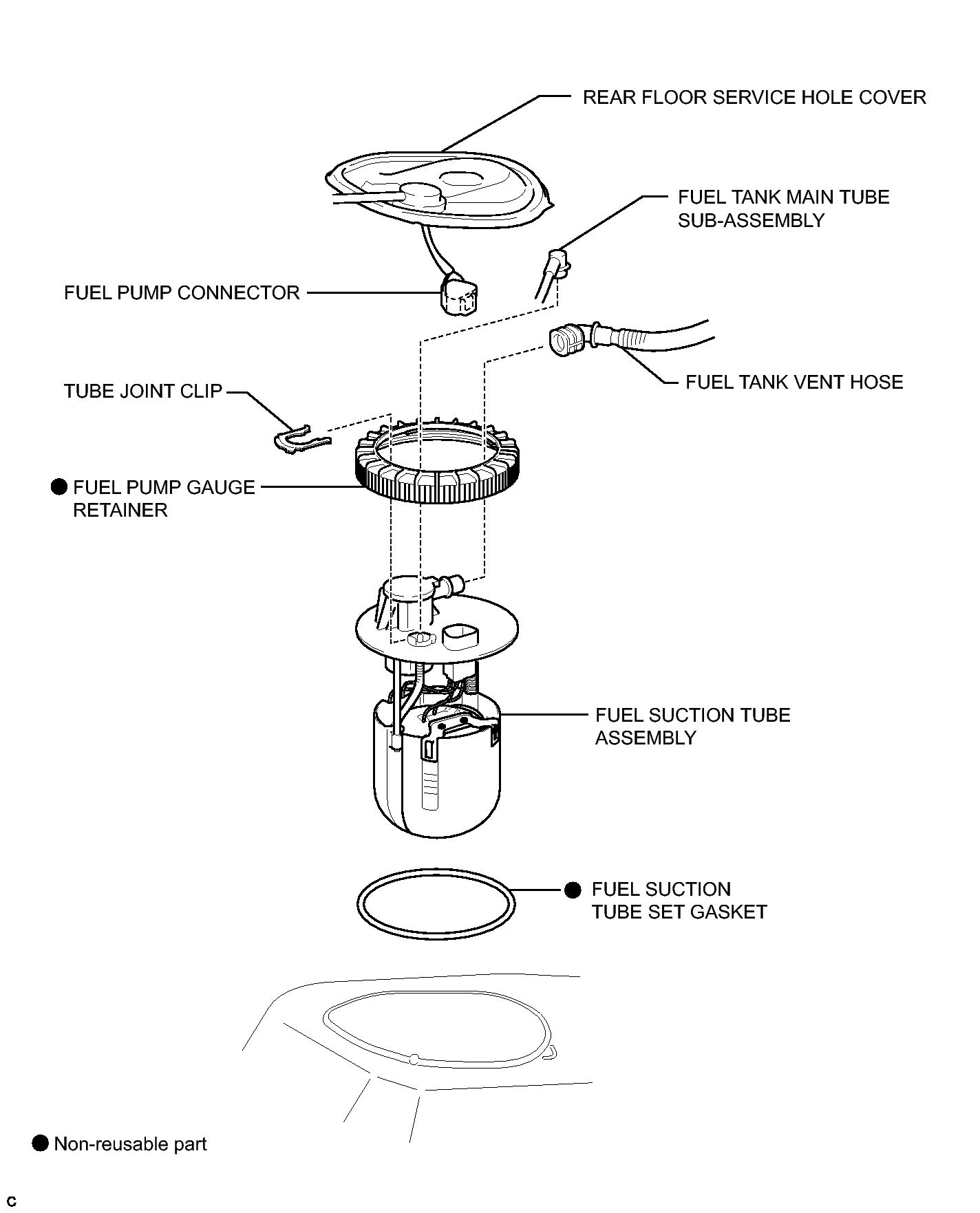

Fig 1: Identifying Fuel Pump Replacement Components (2 Of 3)
GTY216461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

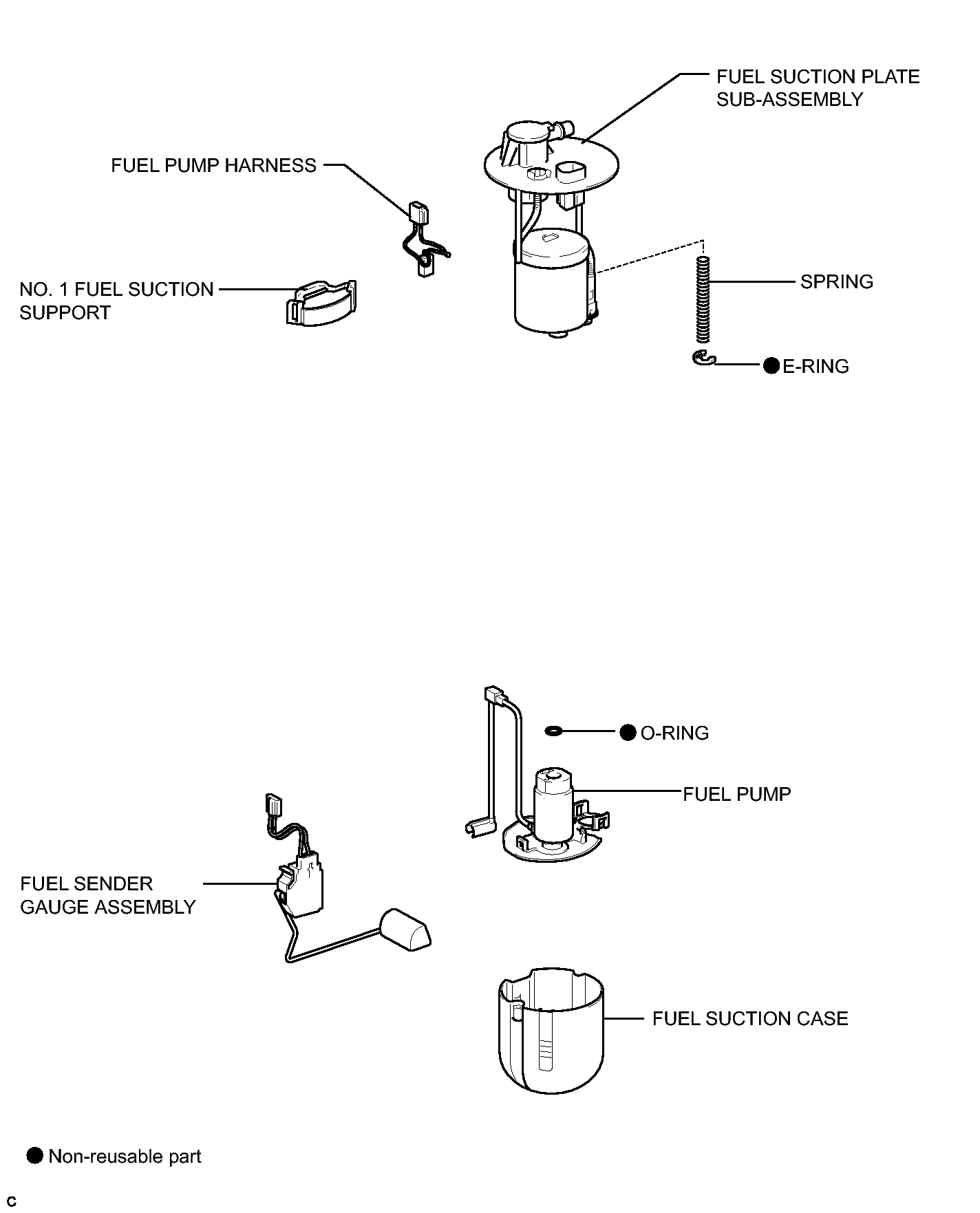

Fig 1: Identifying Fuel Pump Replacement Components (3 Of 3)
GTY238236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
