Back Door Glass: Components: Illustration

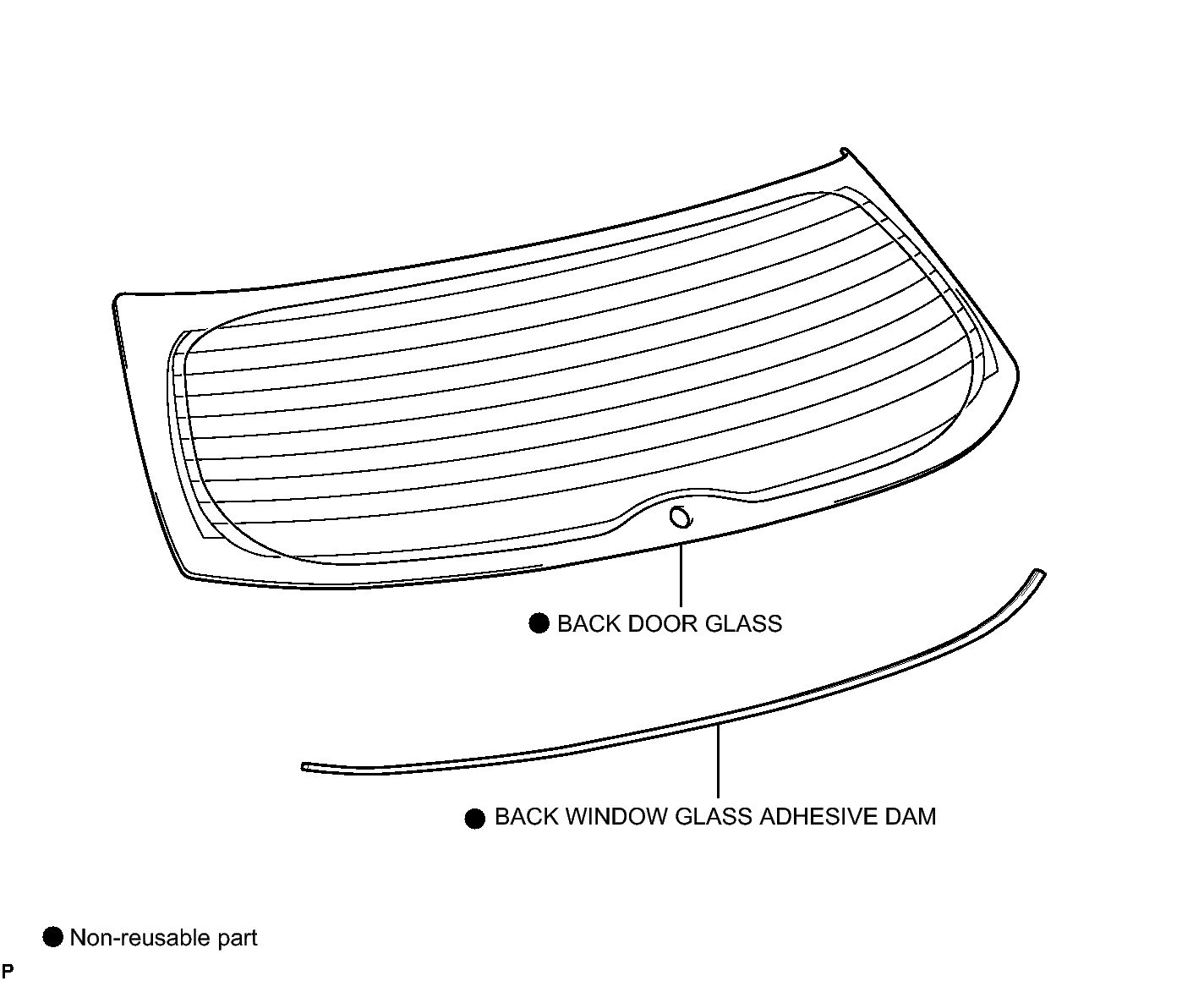

Fig 1: Identifying Back Door Glass Replacement Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

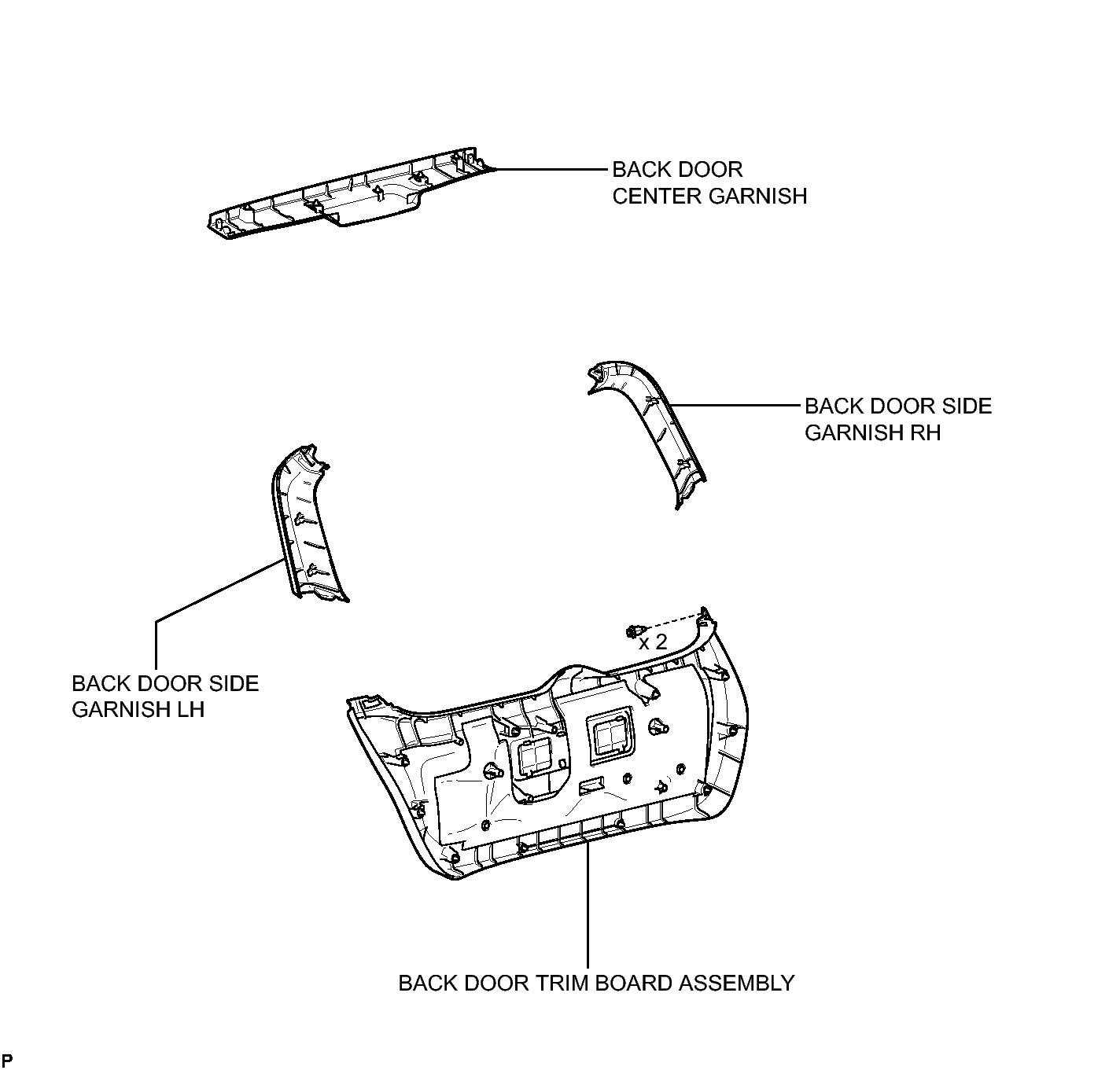

Fig 1: Identifying Back Door Glass Replacement Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

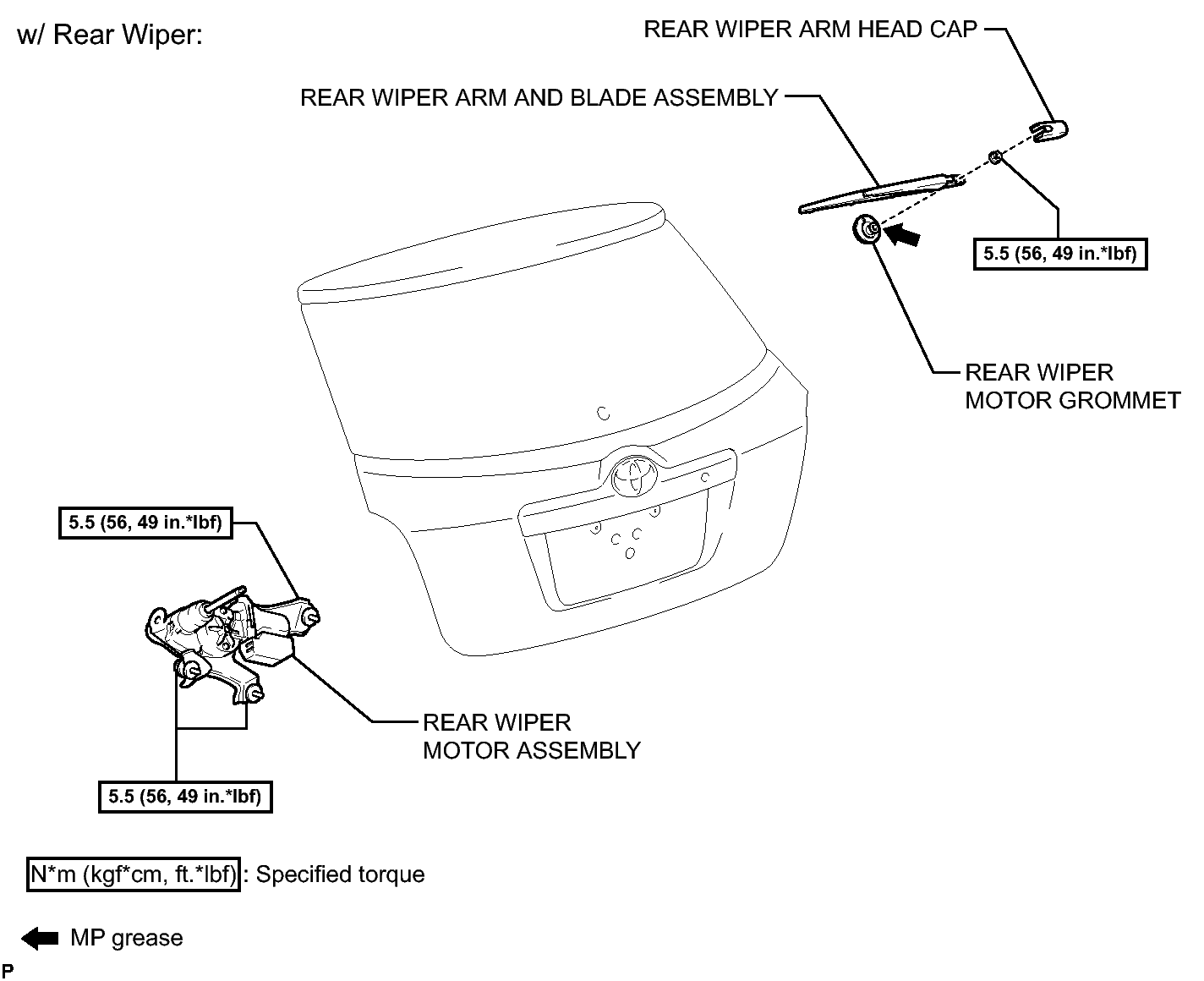

Fig 1: Identifying Back Door Glass Replacement Components With Torque Specifications (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

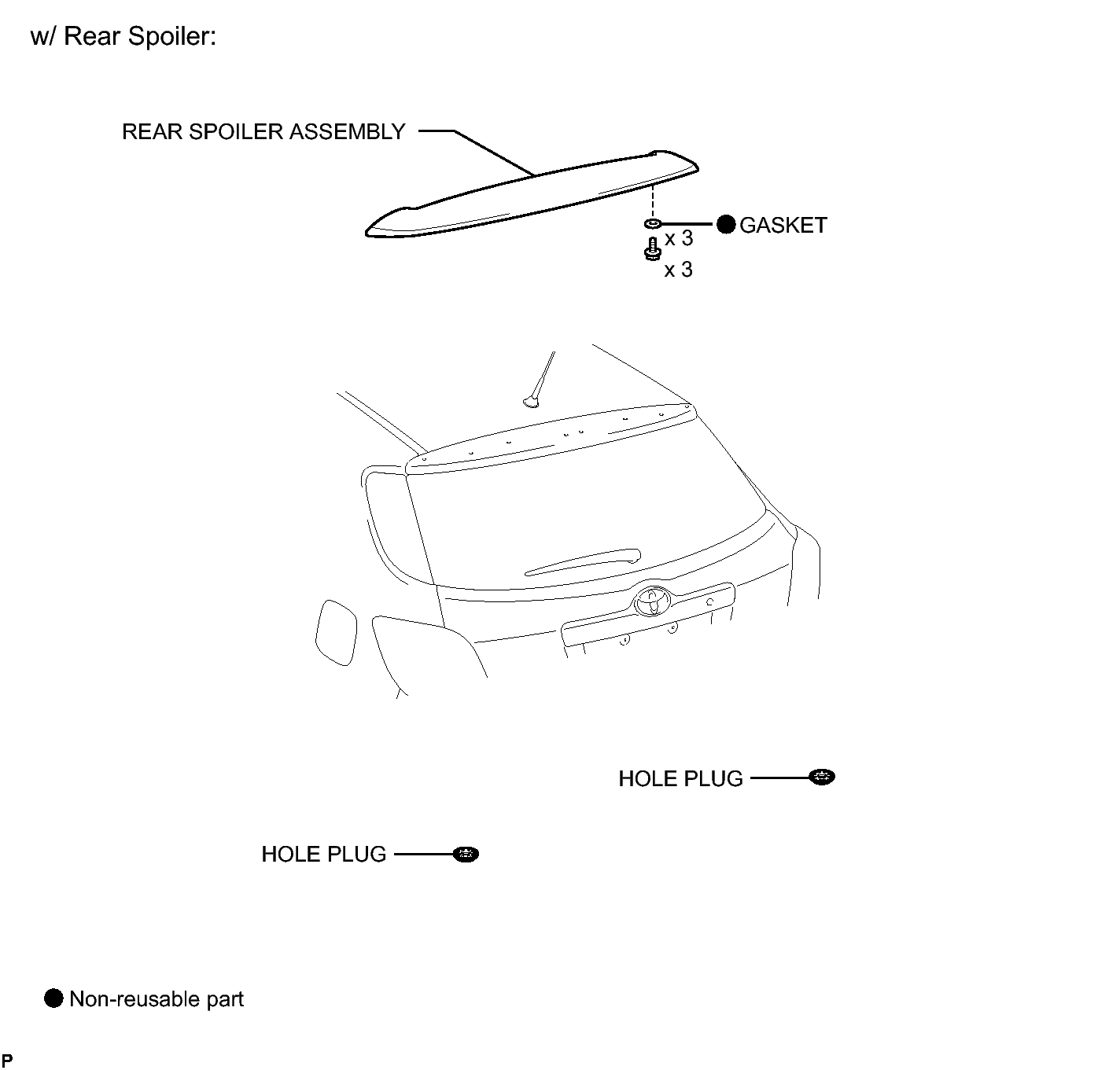

Fig 1: Identifying Back Door Glass Replacement Components (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
