Brake Actuator: Removal: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE FRONT WHEEL RH
REMOVE GENERATOR ASSEMBLY (for 2ZR-FE)
HINT:

Refer to the instructions for Removal of the generator assembly. Refer to REMOVAL - Step 4 .
REMOVE GENERATOR ASSEMBLY (for 2AZ-FE)
HINT:

Refer to the instructions for Removal of the generator assembly. Refer to REMOVAL - Step 4 .
DRAIN BRAKE FLUID
NOTE:
If brake fluid leaks onto any painted surface, immediately wash it off.
REMOVE RADIATOR RESERVE TANK SUB-ASSEMBLY
1. Remove the 3 bolts and radiator reserve tank sub-assembly.

  Fig 1: Remove/Install Radiator Reserve Tank And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT BUMPER ASSEMBLY
HINT:

Refer to the instructions for Removal of the front bumper assembly. Refer to REMOVAL .
REMOVE WINDSHIELD WASHER JAR ASSEMBLY
1. Remove the bolt and clamp and disconnect the motor connectors.

  Fig 2: Remove/Install Washer Hoses And Motor With Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Separate the washer hoses from the windshield washer jar assembly.
3. Remove the 2 bolts, clamp and windshield washer jar assembly from the body.

  Fig 3: Remove/Install Windshield Washer Jar Assembly With Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BRAKE ACTUATOR WITH BRACKET (for 2AZ-FE)
1. Release the lock lever and disconnect the brake actuator connector.

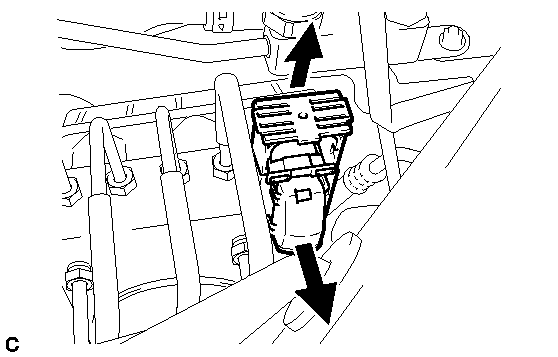

  Fig 4: Releasing Lock Lever (For 2AZ-FE)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Be careful not to allow brake fluid to enter the removed connector.
2. Remove the bolt.

  Fig 5: Remove/Install Brake Line Clamp Bolt (For 2AZ-FE)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a union nut wrench (10 mm), disconnect the 6 brake lines from the actuator assembly.

  Fig 6: Disconnecting Brake Lines From Actuator Assembly (For 2AZ-FE)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Use tags or make a memo to identify the places to reconnect.

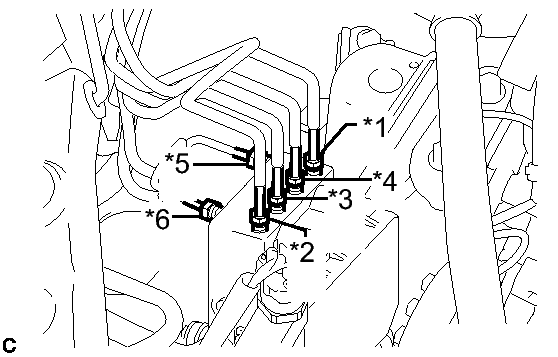

  Fig 7: View Of Brake Line Tags Location (For 2AZ-FE)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:
  - *1: To front wheel cylinder RH
  - *2: To front wheel cylinder LH
  - *3: To rear wheel cylinder RH
  - *4: To rear wheel cylinder LH
  - *5: From 1st master cylinder chamber
  - *6: From 2nd master cylinder chamber
5. Remove the 2 bolts, nut and brake actuator with bracket from the body.

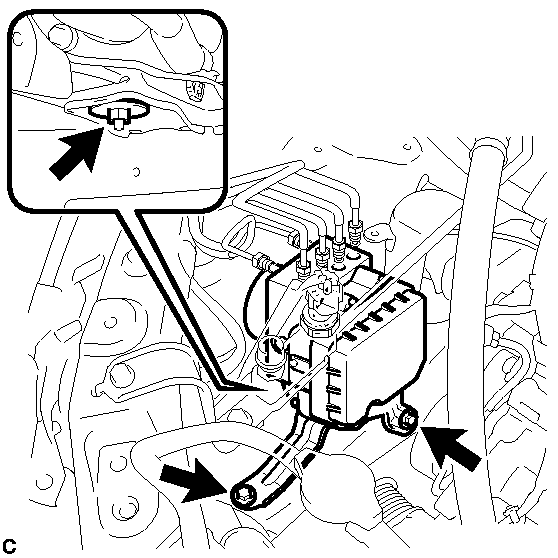

  Fig 8: Locating Brake Actuator Fasteners (For 2AZ-FE)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Do not damage the brake lines or wire harness.
  - Do not carry the brake actuator assembly by the connector.
REMOVE BRAKE ACTUATOR WITH BRACKET (for 2ZR-FE)
1. Release the lock lever and disconnect the brake actuator connector.

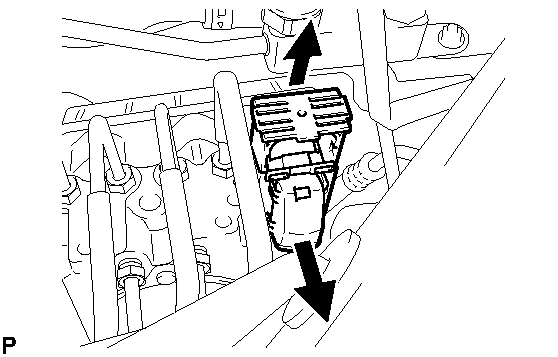

  Fig 9: Releasing Lock Lever (For 2ZR-FE)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Be careful not to allow brake fluid to enter the removed connector.
2. Remove the bolt.

  Fig 10: Remove/Install Brake Line Clamp Bolt (For 2ZR-FE)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

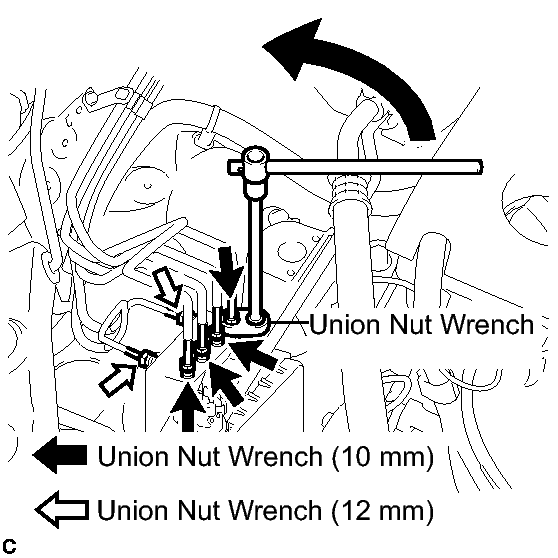

3. Using a union nut wrench (10 mm) and union nut wrench (12 mm), disconnect the 6 brake lines from the actuator assembly.

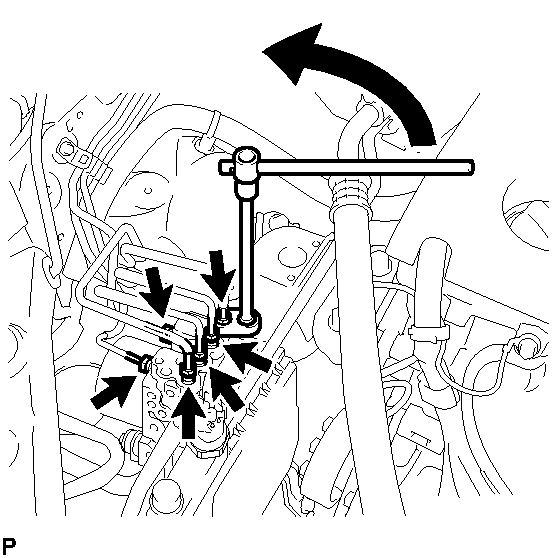

  Fig 11: View Of Actuator Assembly And Brake Lines (For 2ZR-FE)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Use tags or make a memo to identify the places to reconnect.

  Fig 12: View Of Brake Line Tags Location (For 2ZR-FE)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:
  - *1: To front wheel cylinder RH
  - *2: To front wheel cylinder LH
  - *3: To rear wheel cylinder RH
  - *4: To rear wheel cylinder LH
  - *5: From 1st master cylinder chamber
  - *6: From 2nd master cylinder chamber
5. Remove the 2 bolts, nut and brake actuator with bracket from the body.

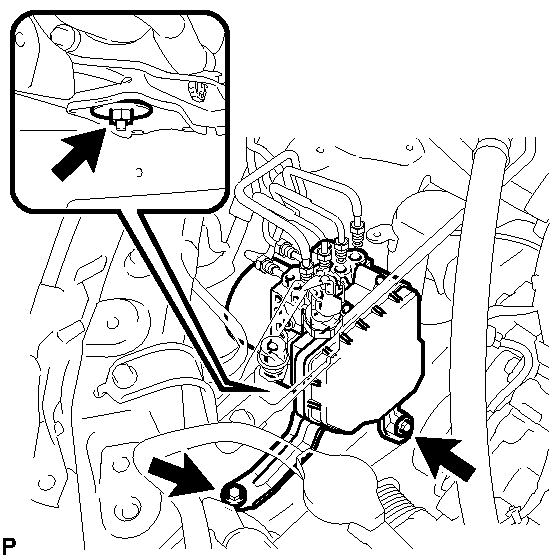

  Fig 13: Locating Brake Actuator Fasteners (For 2ZR-FE)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Do not damage the brake lines or wire harness.
  - Do not carry the brake actuator assembly by the connector.
REMOVE BRAKE ACTUATOR (for 2AZ-FE)
1. Remove the 3 bolts and brake actuator from the brake actuator bracket assembly.

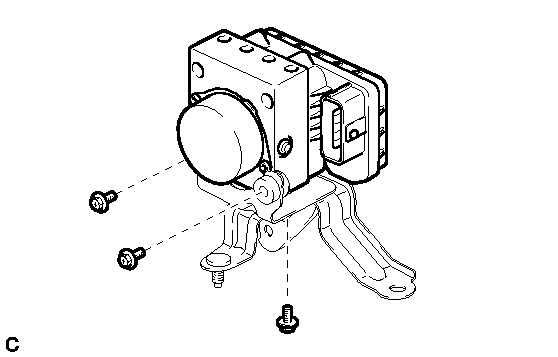

  Fig 14: View Of Brake Actuator Bolts (For 2AZ-FE)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BRAKE ACTUATOR (for 2ZR-FE)
1. Remove the 3 bolts and brake actuator from brake actuator bracket assembly.

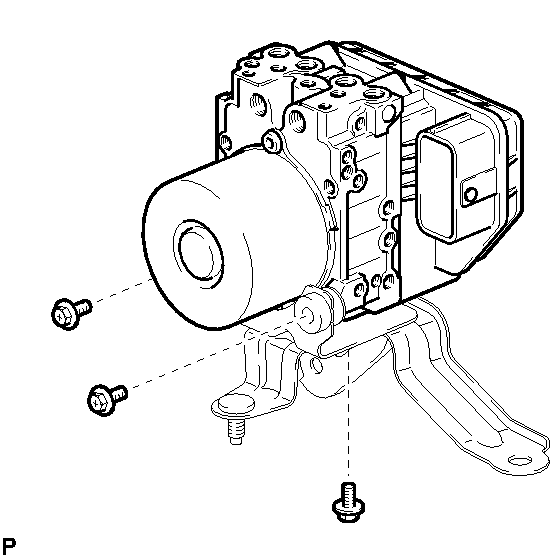

  Fig 15: View Of Brake Actuator Bolts (For 2ZR-FE)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
