4WD Control Switch: Components: Illustration

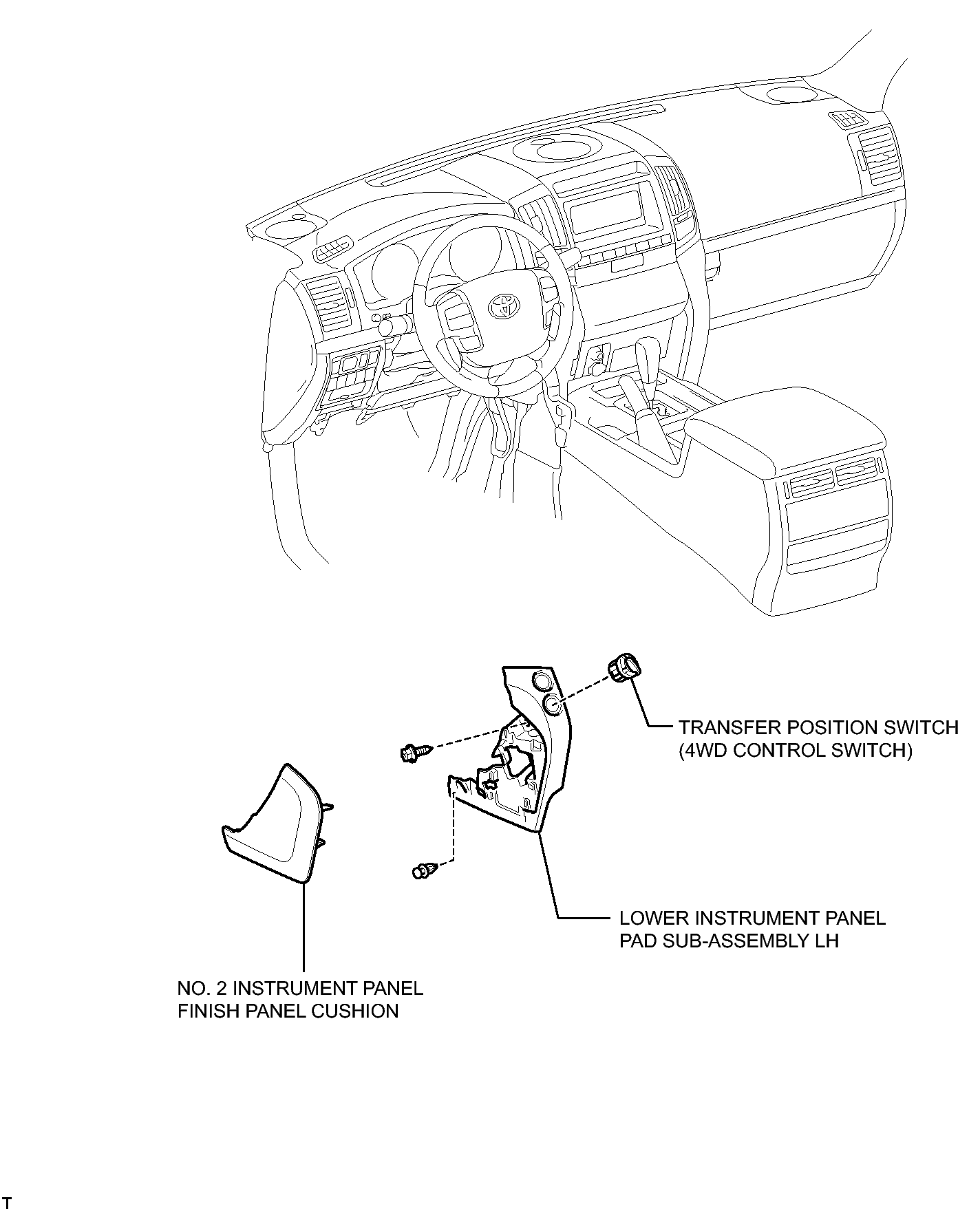

Fig 1: Identifying 4WD Control Switch Replacement Components

GTY244519

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
