Seat Heater (Front)
>>
Notes
Seat Heater (Front): Notes

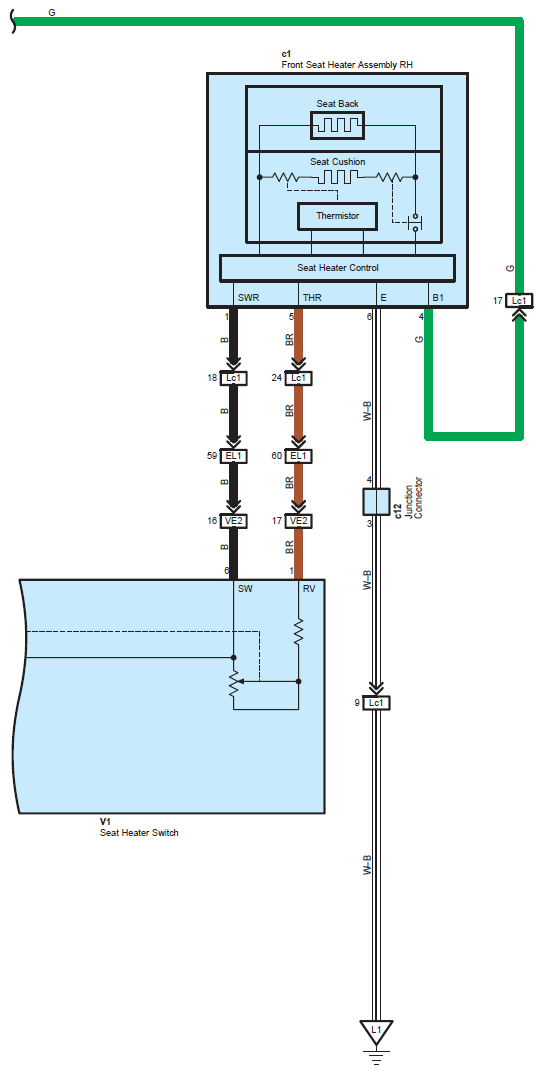

Fig 1: Seat Heater (Front) System Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

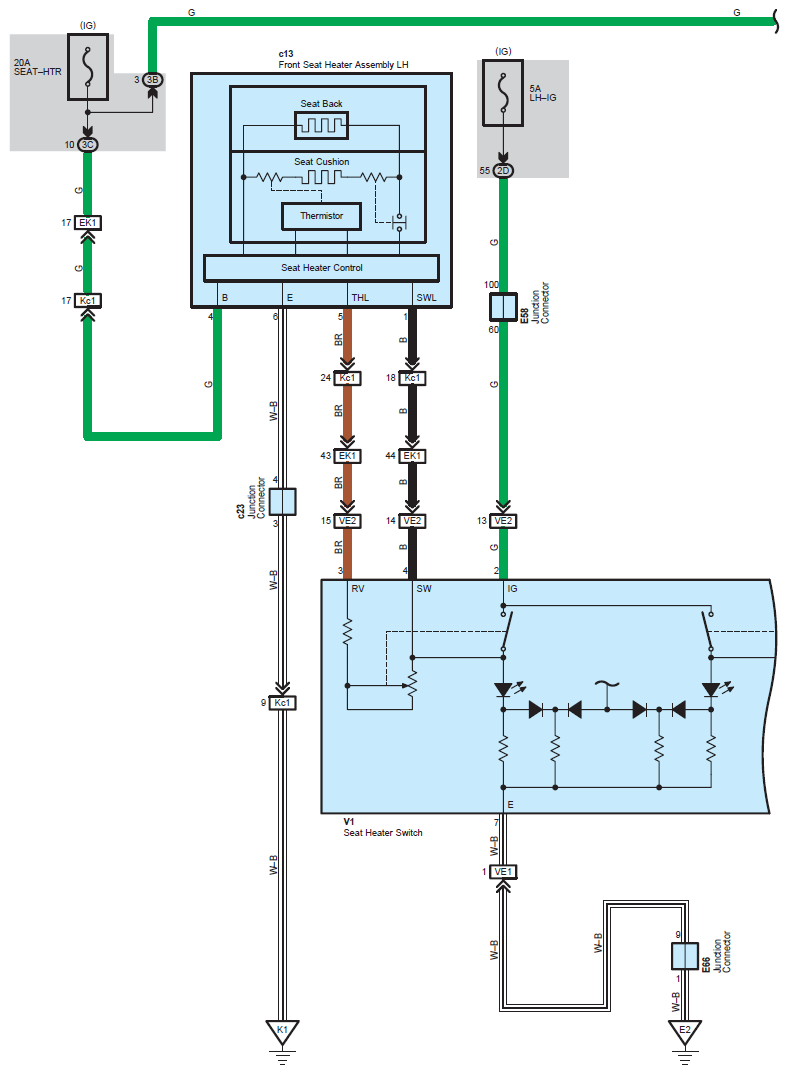

Fig 2: Seat Heater (Front) System Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
