Parts Location: Illustration

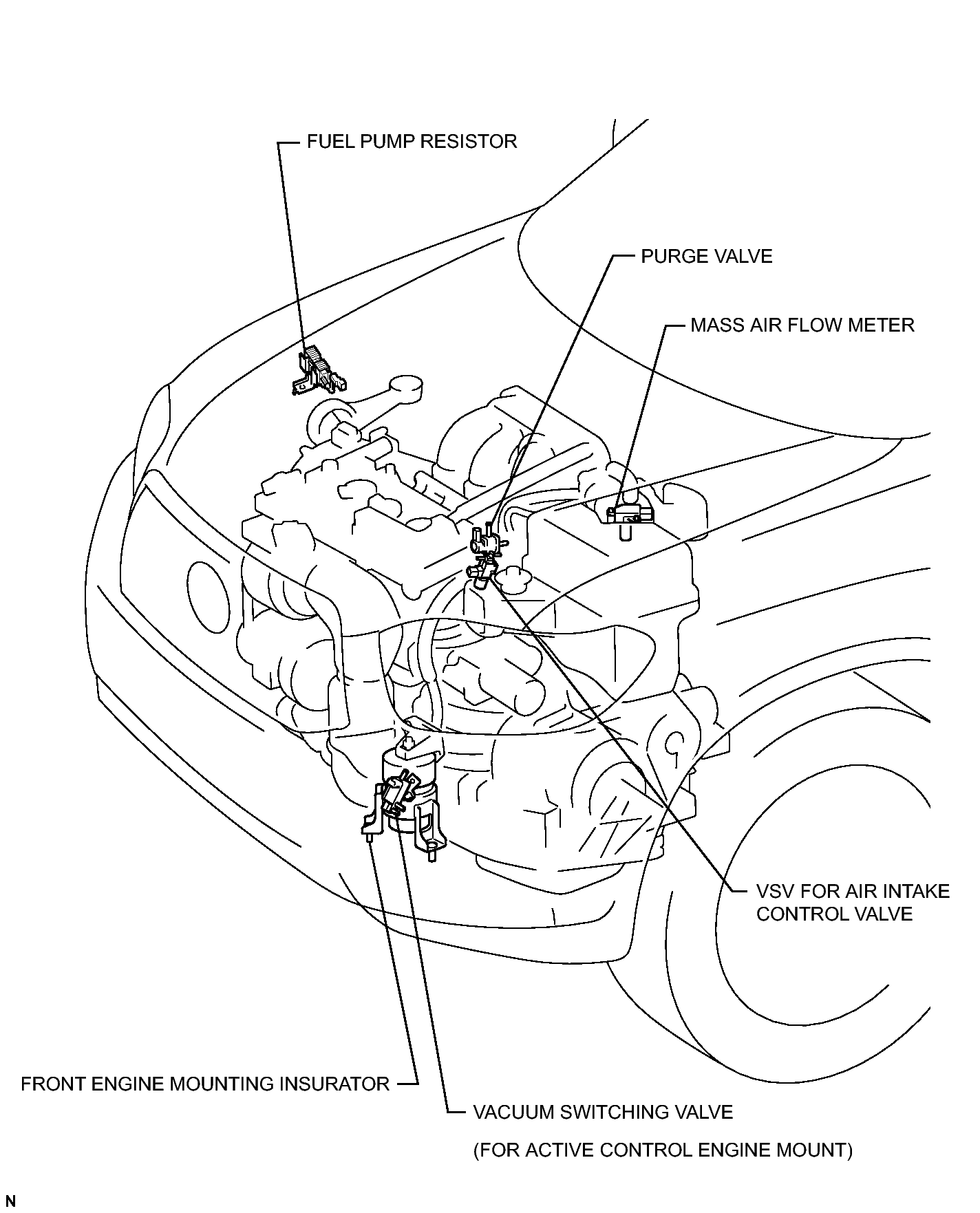

Fig 1: Identifying Engine Control System Replacement Components (1 Of 5)
GTY193829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Control System Replacement Components (2 Of 5)
GTY188737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

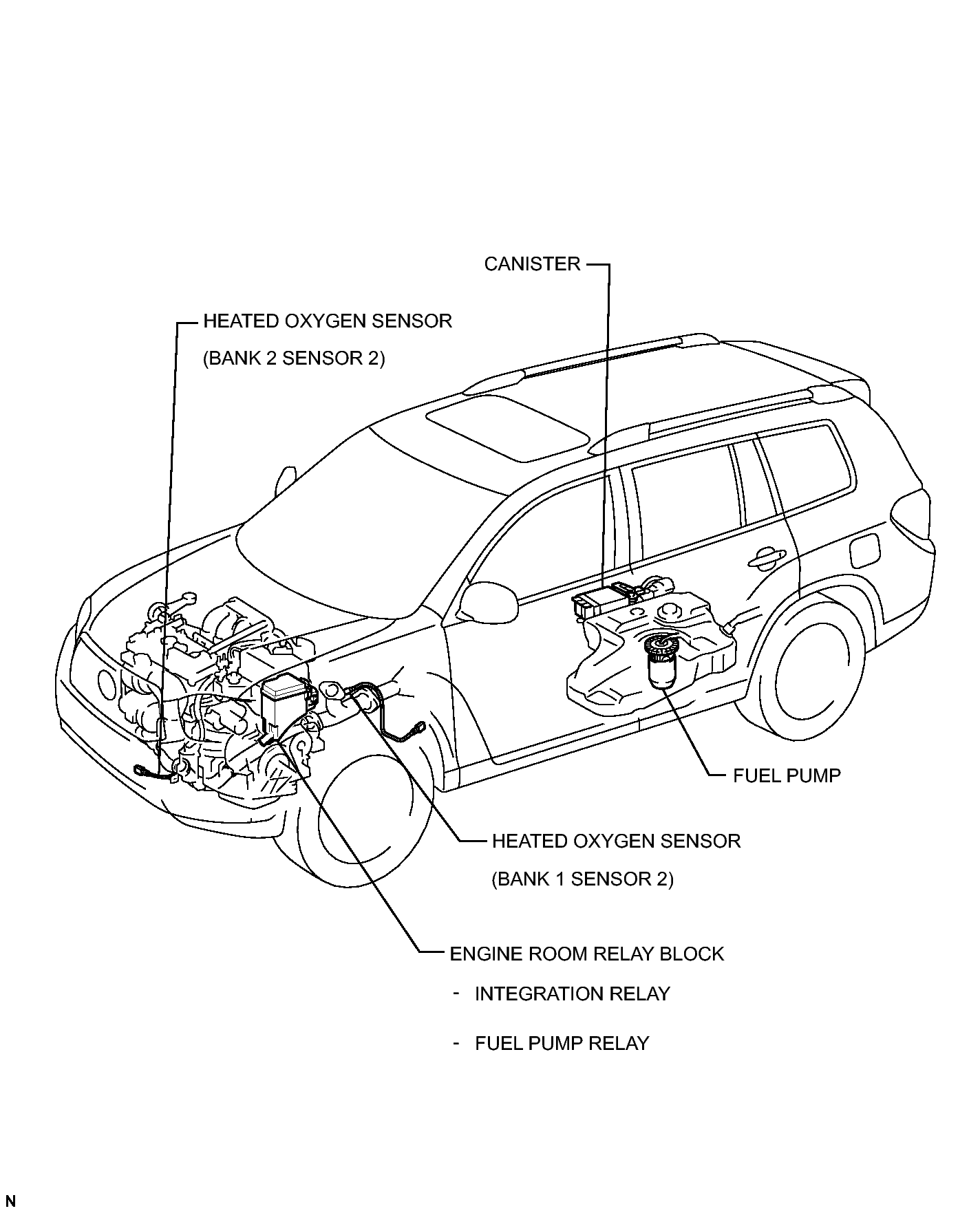

Fig 1: Identifying Engine Control System Replacement Components (3 Of 5)
GTY193830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

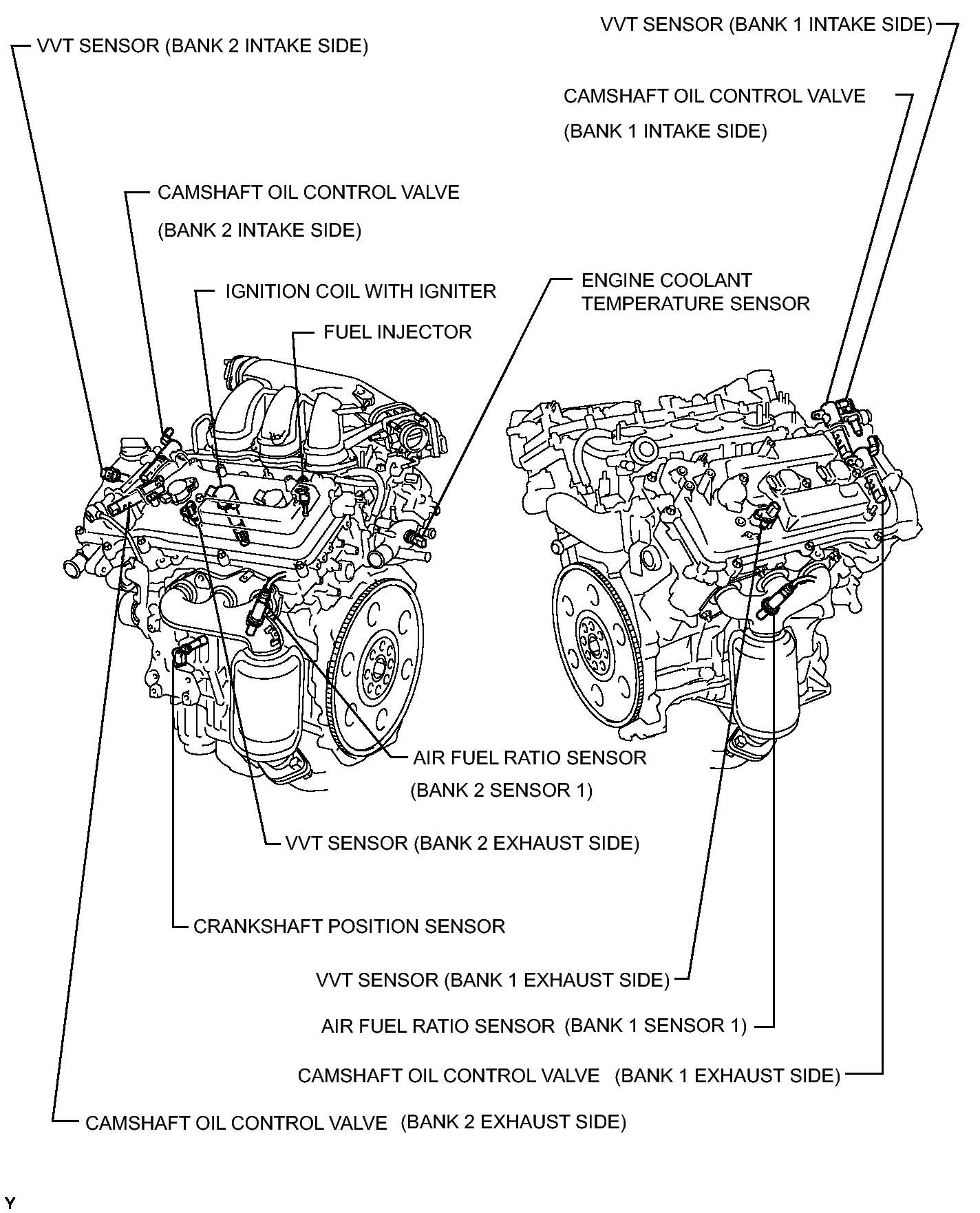

Fig 1: Identifying SFI System Components (4 Of 5)
GTY182607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

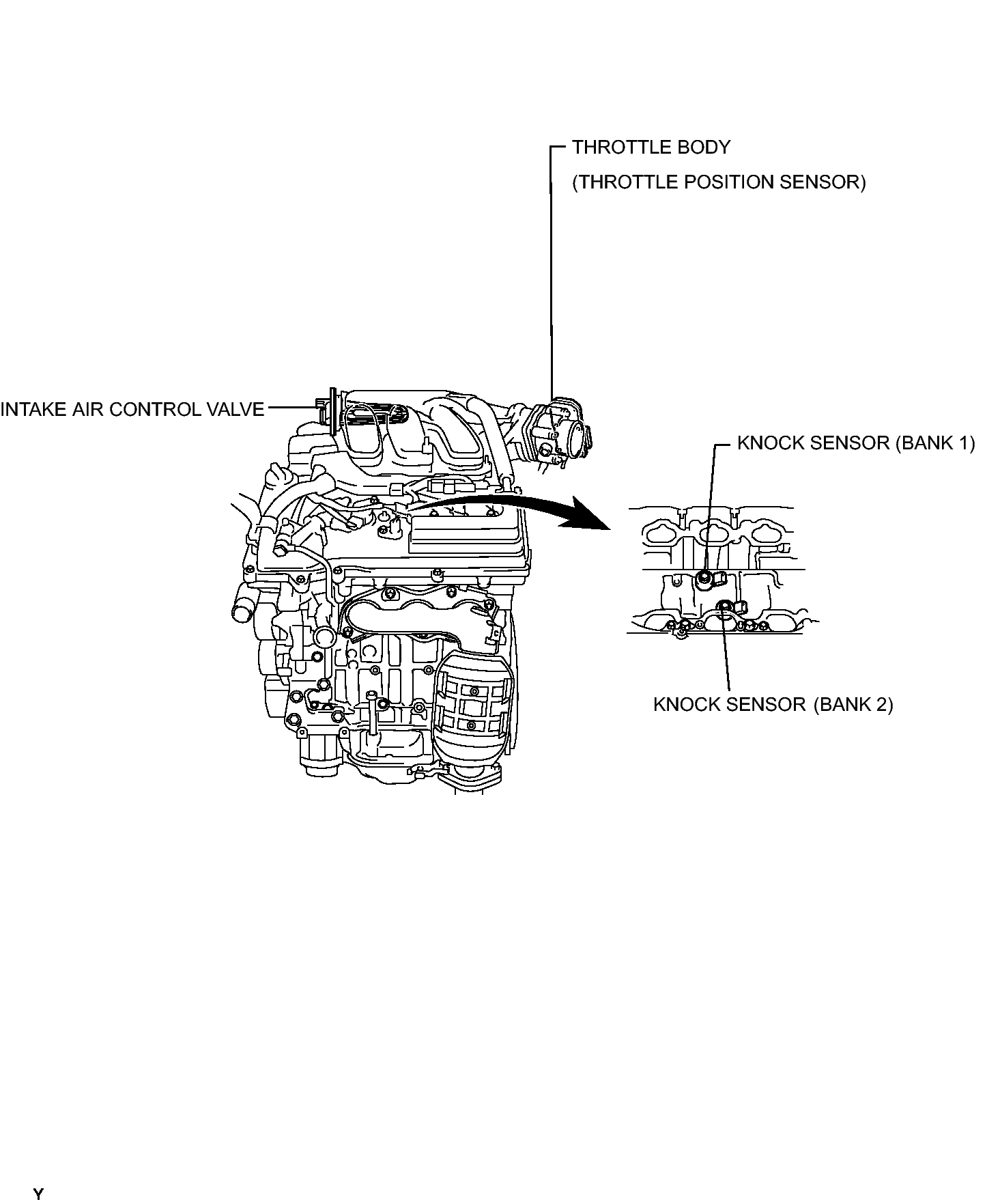

Fig 1: Identifying SFI System Components (5 Of 5)
GTY169430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
