Accelerator Pedal Rod: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL ACCELERATOR PEDAL ASSEMBLY
NOTE:
- Avoid physical shock to the accelerator pedal assembly.
- Do not disassemble the accelerator pedal assembly.
1. Install the accelerator pedal assembly with the 2 nuts.

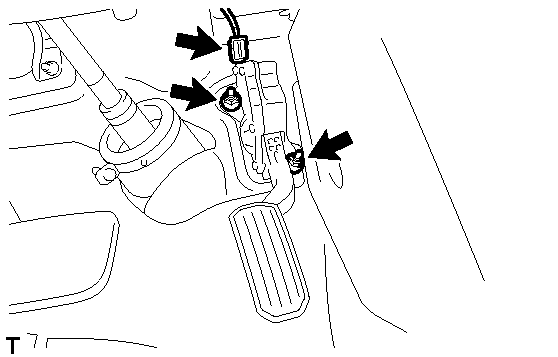

  Fig 1: Locating Nuts And Accelerator Pedal Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
2. Connect the accelerator pedal assembly connector.
