Emission Control System (2GR-FE) (Service Information): Canister: Components: Illustration

Fig 1: Identifying Canister Replacement Components With Torque Specifications (1 Of 2)
GTY179819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

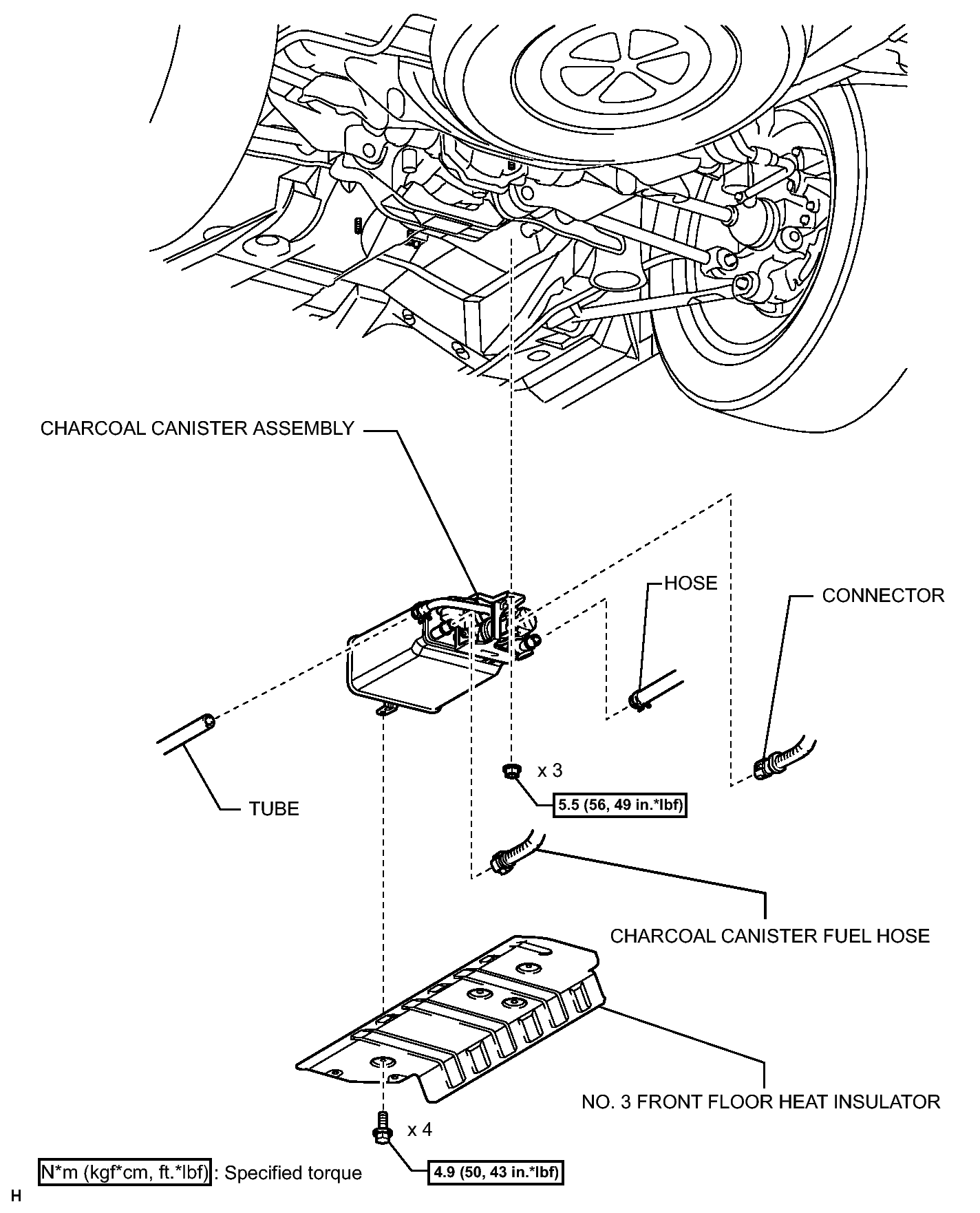

Fig 1: Identifying Canister Replacement Components With Torque Specifications (2 Of 2)
GTY193942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
