Inner Rear View Mirror: Components: Illustration

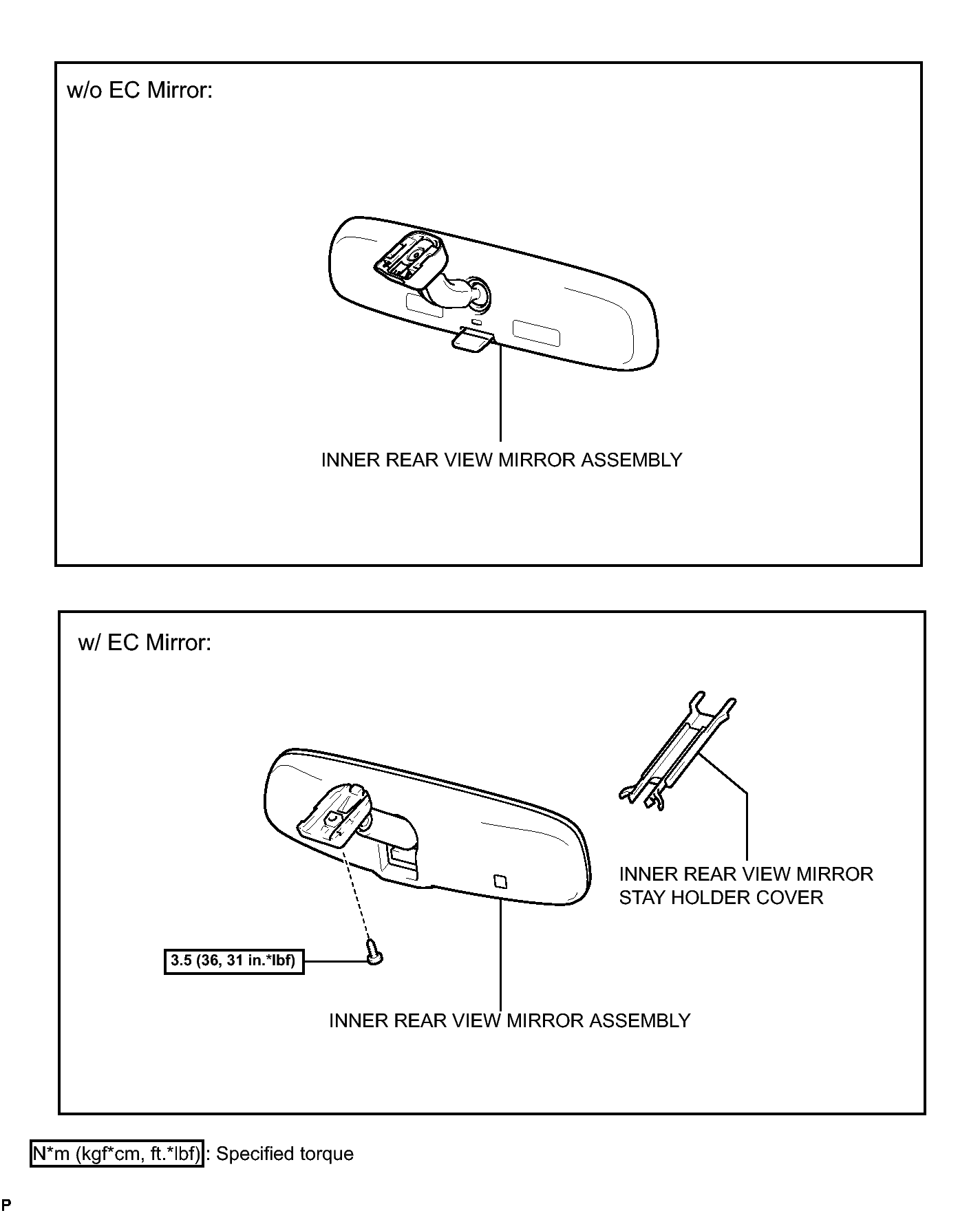

Fig 1: Identifying Inner Rear View Mirror Replacement Components With Torque Specifications

GTY174826

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
