WIRELESS DOOR LOCK CONTROL SYSTEM (w/o Smart Key System): Components: Illustration

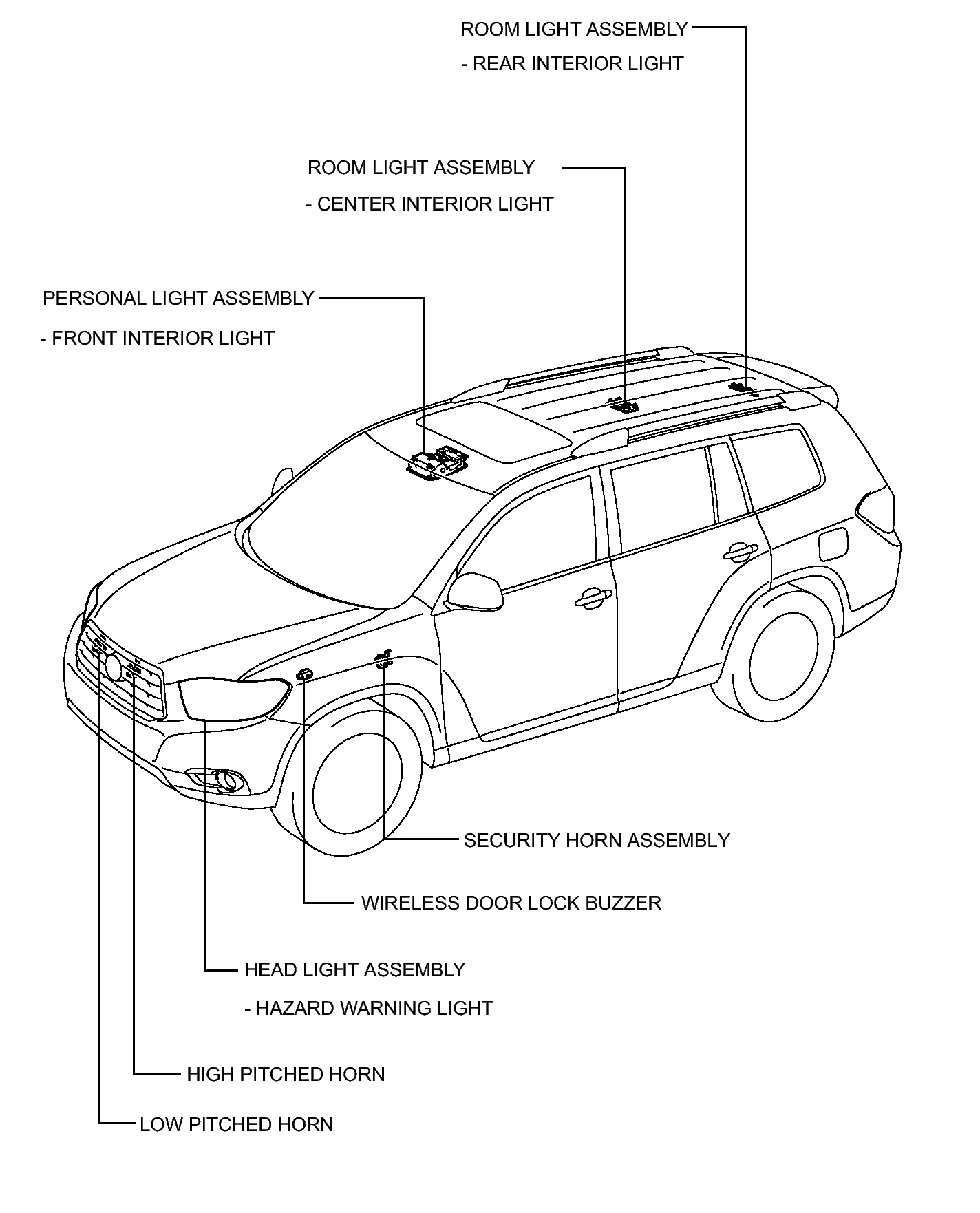

Fig 1: Identifying Wireless Door Lock Control System (w/o Smart Key System) Components Location (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

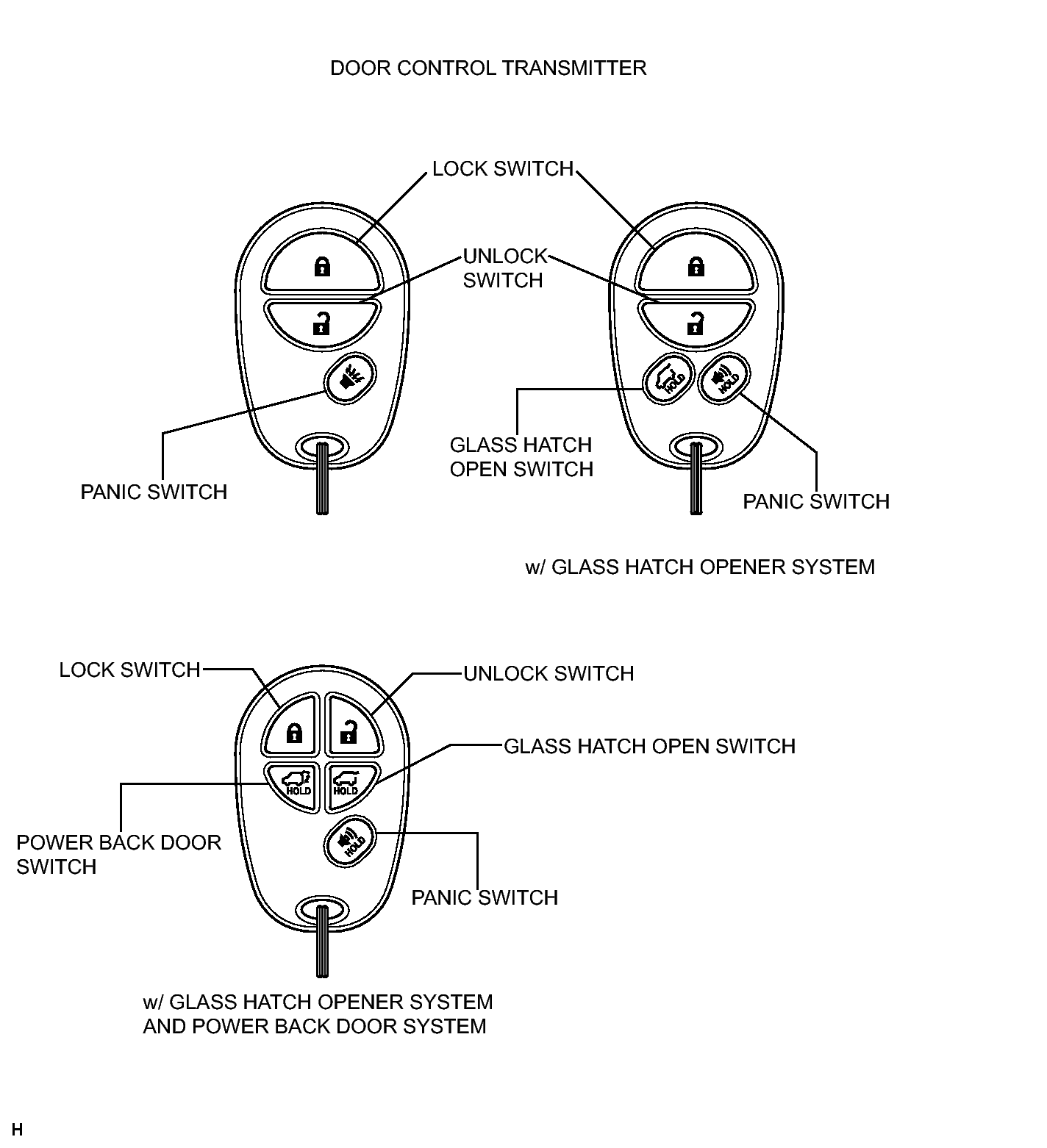

Fig 1: Identifying Wireless Door Lock Control System (w/o Smart Key System) Components Location (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

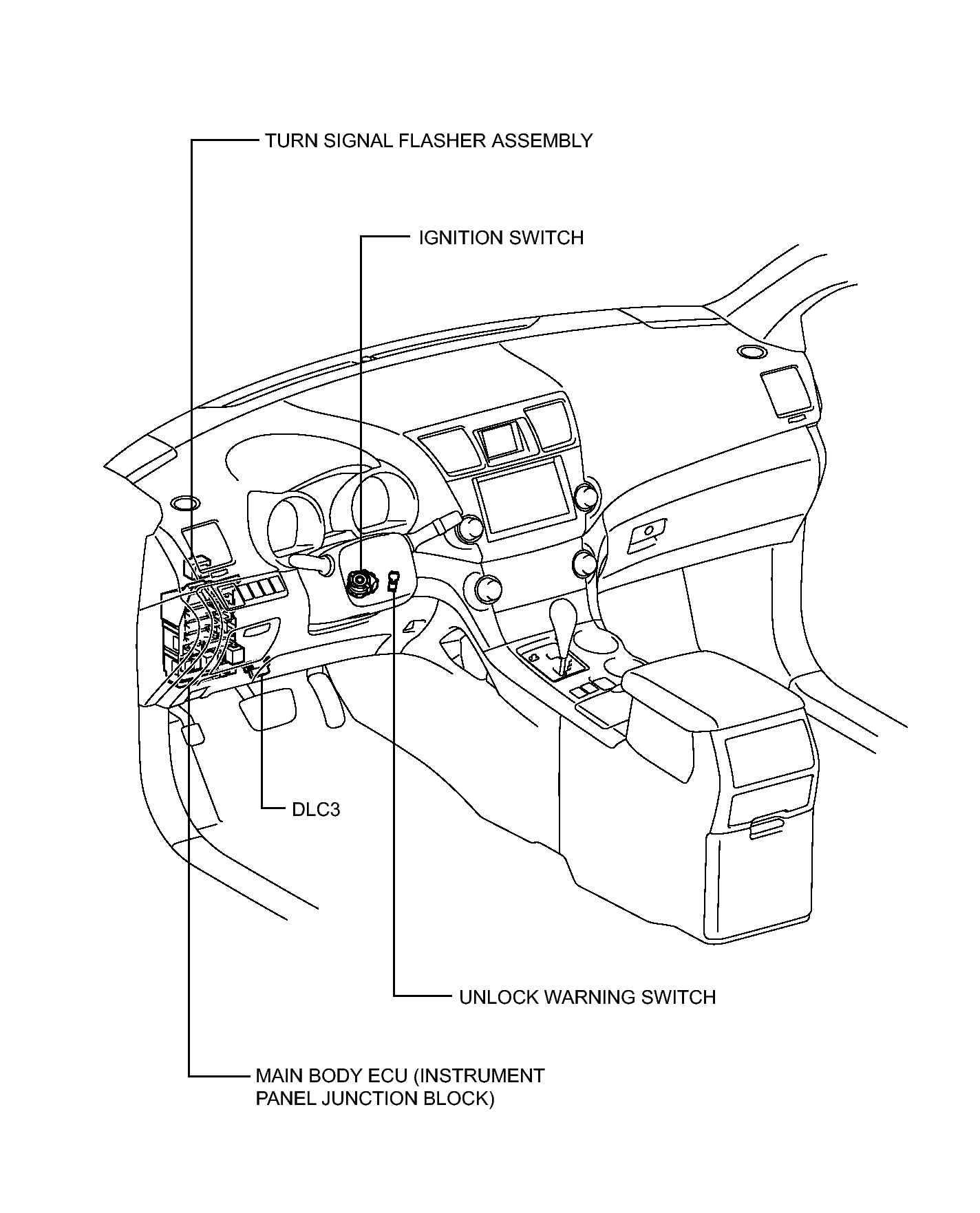

Fig 1: Identifying Wireless Door Lock Control System (w/o Smart Key System) Components Location (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

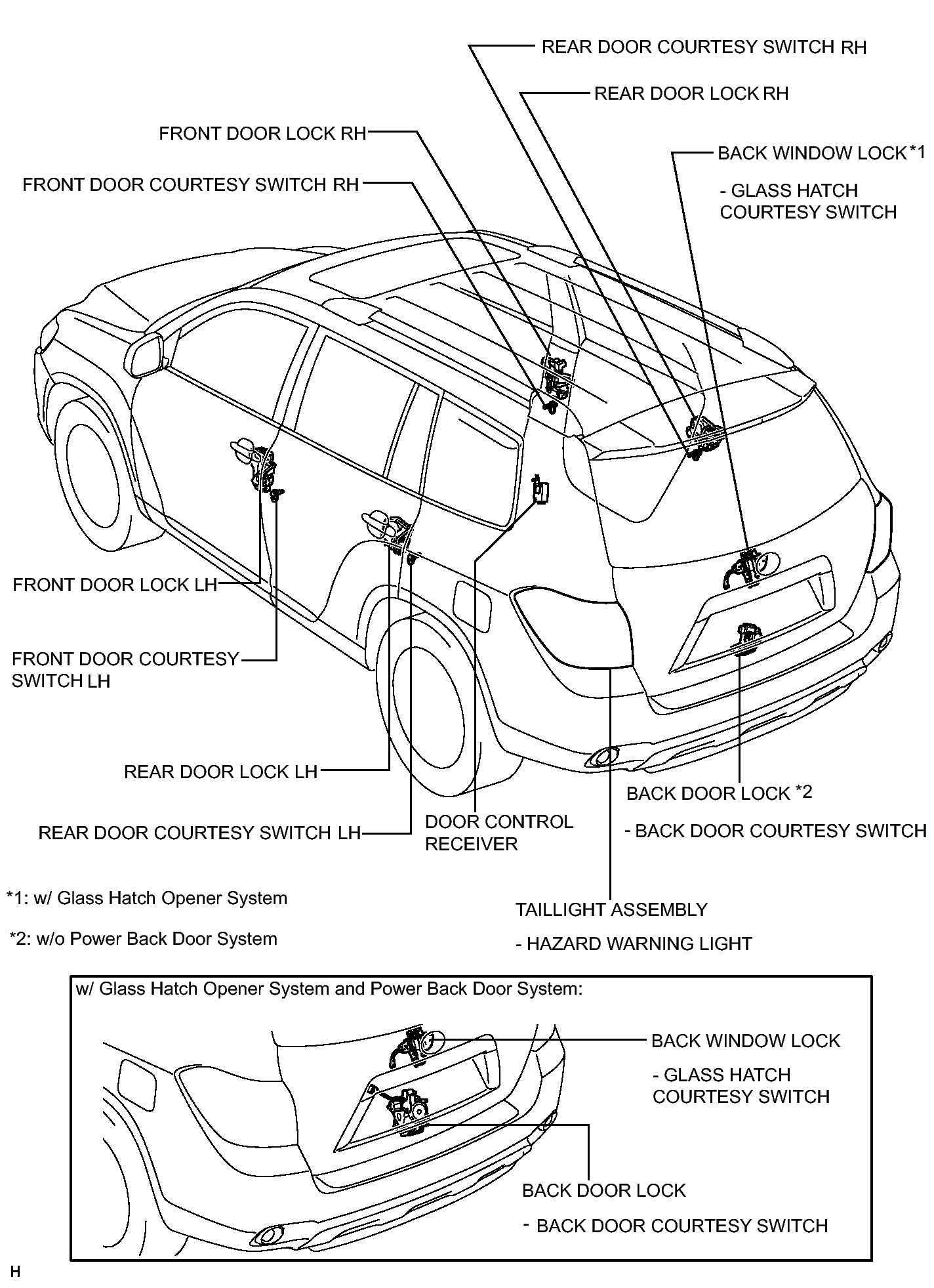

Fig 1: Identifying Wireless Door Lock Control System (w/o Smart Key System) Components Location (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
