Rear Coil Spring: Components: Illustration

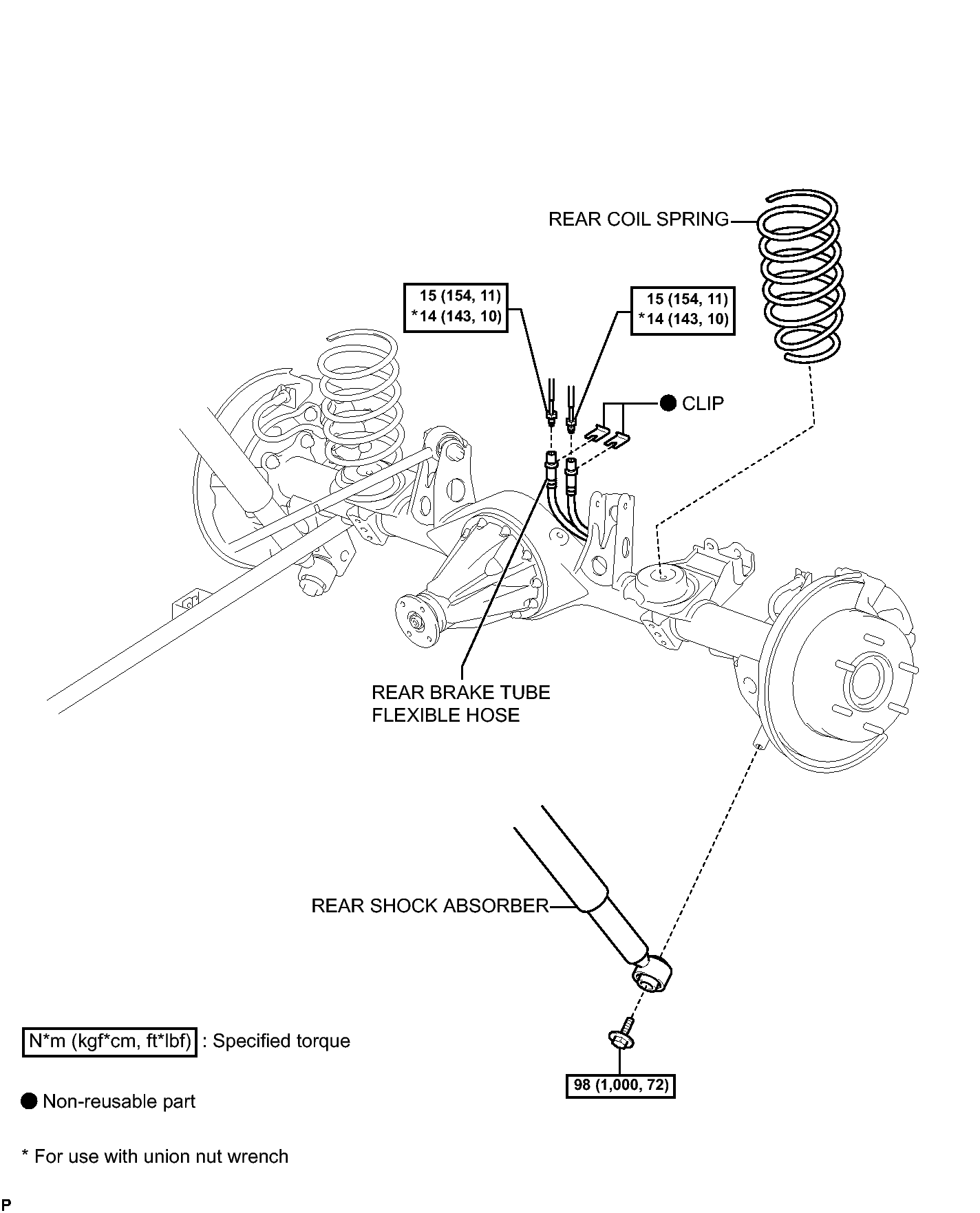

Fig 1: Identifying Rear Coil Spring Replacement Components With Torque Specifications

GTY201897

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
