Home >> Toyota >> 2011 >> FJ Cruiser RWD >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Suspension System (Service Information) >> Front Stabilizer Bar >> Components >> Illustration

Front Stabilizer Bar: Components: Illustration

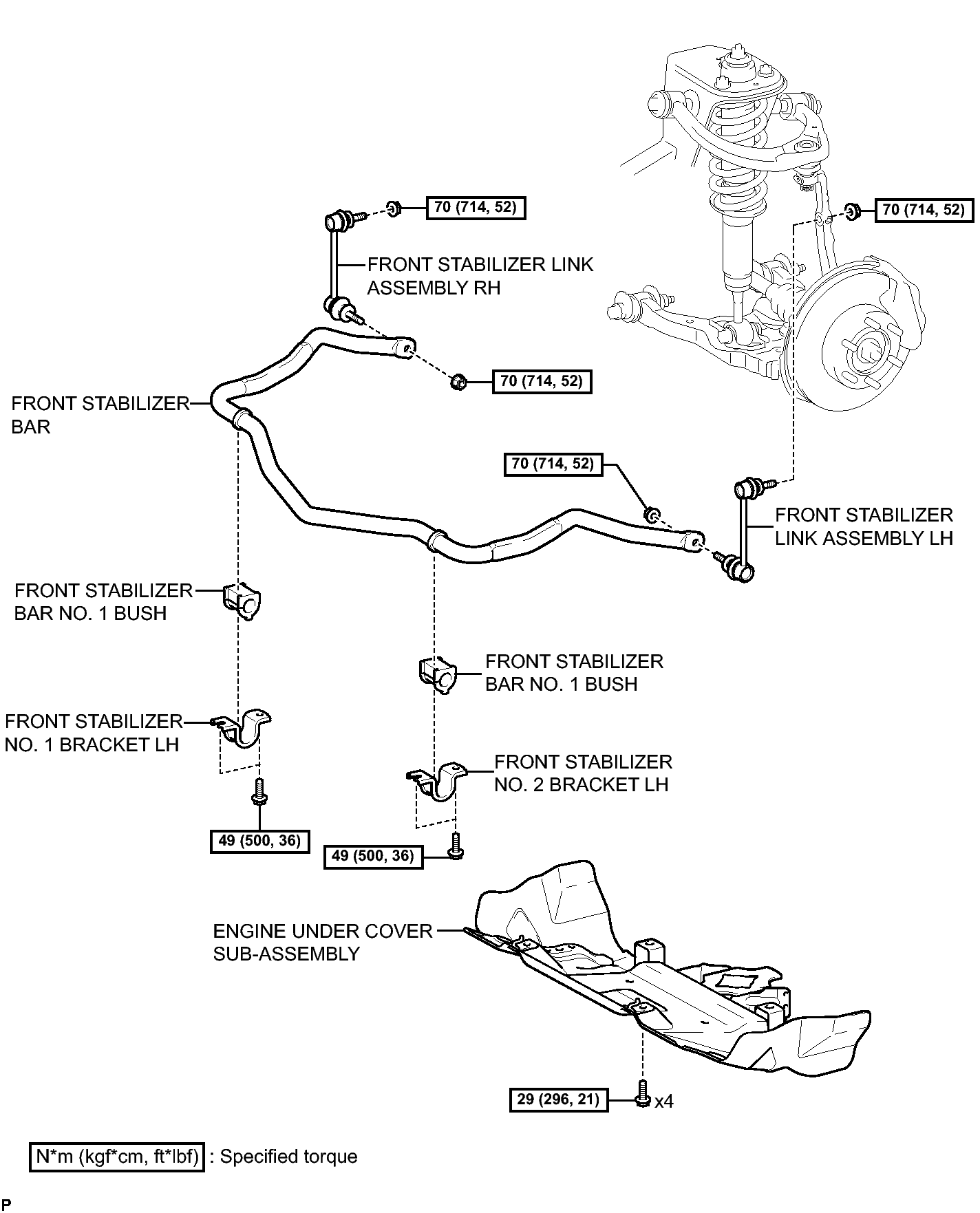

Fig 1: Identifying Front Stabilizer Bar Replacement Components With Torque Specifications

GTY309037

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
