Charging System (Service Information): Generator: Disassembly: Disassembly

  1. REMOVE GENERATOR PULLEY CAP
    1. Using a screwdriver, remove the generator pulley cap.

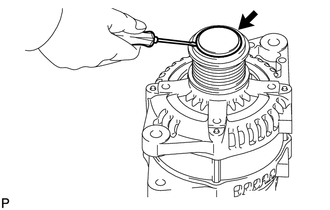

      Fig 1: Removing Generator Pulley Cap With Screwdriver
      GTY169943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE GENERATOR CLUTCH PULLEY
    1. Mount the generator in a vise between aluminum plates.
    2. Install SST (A) and (B) to the generator with clutch pulley as shown in the illustration.
      Fig 2: View of Generator Clutch Pulley Using SST (A & B)
      GTY188037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09820-63021
      TEXT IN ILLUSTRATION

      *1 Rotor Shaft
      NOTE:

      Securely attach SST to the generator with clutch pulley and generator rotor shaft.

    3. Use a wrench to hold SST (A) and turn SST (B) counterclockwise to loosen the generator with clutch pulley.
      NOTE:

      Be careful as the generator with clutch pulley or generator rotor shaft may be damaged if the position of SST is not securely maintained while performing this operation.

      Fig 3: Removing Generator Clutch Pulley Using SST (A & B)
      GTY182965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Hold
      Turn
    4. Remove SST from the generator.
    5. Remove the generator with clutch pulley from the rotor shaft.
  3. REMOVE GENERATOR REAR END COVER
    1. Remove the nut and cord clamp.
      Fig 4: Locating Nut And Cord Clip
      GTY180043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 nuts and generator rear end cover.
      Fig 5: Identifying Nuts And Generator Rear End Cover
      GTY173295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE GENERATOR TERMINAL INSULATOR
    1. Remove the terminal insulator from the generator coil.

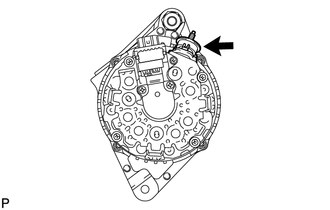

      Fig 6: Identifying Generator Coil & Terminal Insulator
      GTY169930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE GENERATOR BRUSH HOLDER ASSEMBLY
    1. Remove the 2 screws and brush holder from the generator coil.

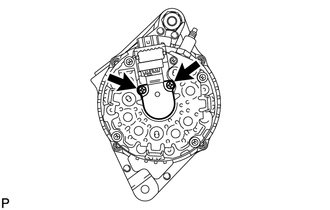

      Fig 7: Identifying Generator Coil, Brush Holder & Screws
      GTY169925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE GENERATOR COIL ASSEMBLY
    1. Remove the 4 bolts.

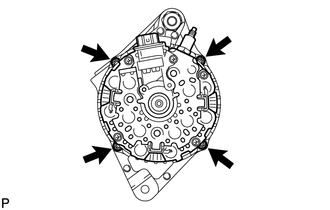

      Fig 8: Identifying Generator Coil Assembly & Bolts
      GTY169923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the generator coil.

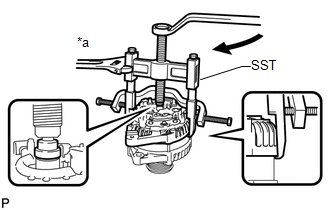

      Fig 9: Removing Generator Coil Using SST
      GTY172475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-40011
        1. 09951-04020
        2. 09952-04010
        3. 09953-04020
        4. 09954-04010
        5. 09955-04071
        6. 09957-04010
        7. 09958-04011
      TEXT IN ILLUSTRATION

      *a Hold
      Turn
  7. REMOVE GENERATOR ROTOR ASSEMBLY
    1. Remove the generator washer.
      Fig 10: Locating Generator Washer
      GTY185290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the generator rotor assembly.

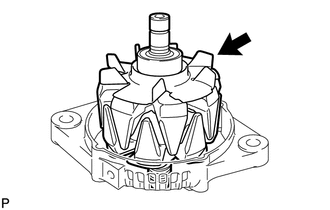

      Fig 11: Identifying Generator Rotor Assembly
      GTY169921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE GENERATOR DRIVE END FRAME BEARING
    1. Remove the 4 screws and retainer plate from the drive end frame.
      Fig 12: Identifying Generator Drive End Frame Bearing, Retainer Plate & Screws
      GTY181991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST and a hammer, tap out the drive end frame bearing from the drive end frame.

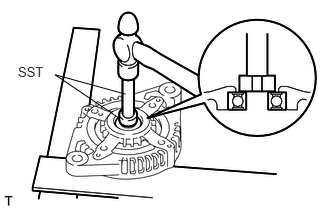

      Fig 13: Tapping Out Drive End Frame Bearing From Drive End Frame
      GTY133160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-60010
        1. 09951-00250
      • SST: 09950-70010
        1. 09951-07100
