Power Outlet (115V): Notes

Fig 1: Power Outlet (115V) Wiring Diagram (1 Of 3)
G07116512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

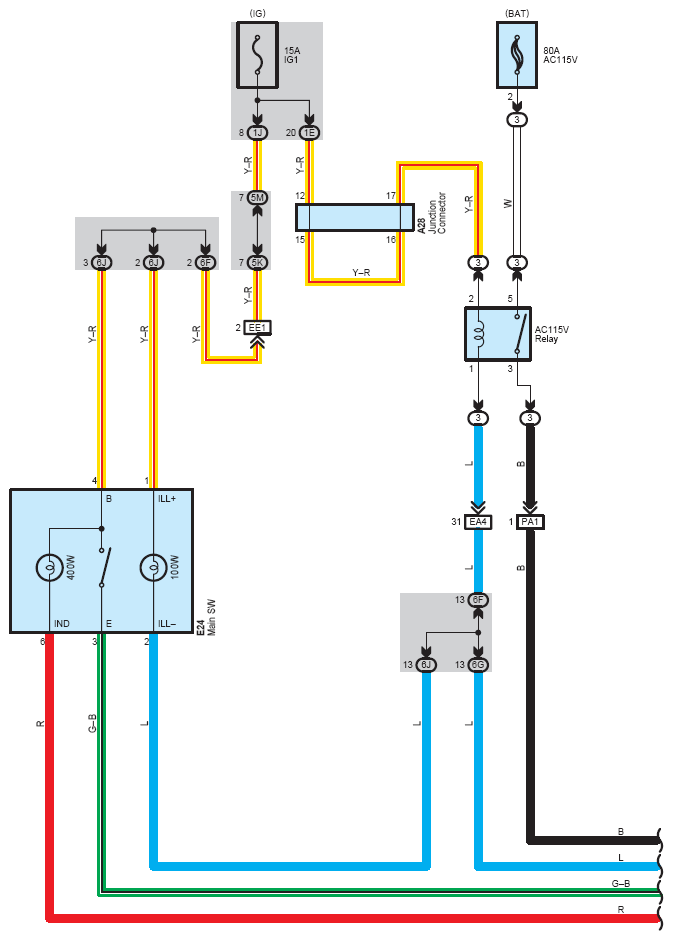

Fig 2: Power Outlet (115V) Wiring Diagram (2 Of 3)
G07116513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

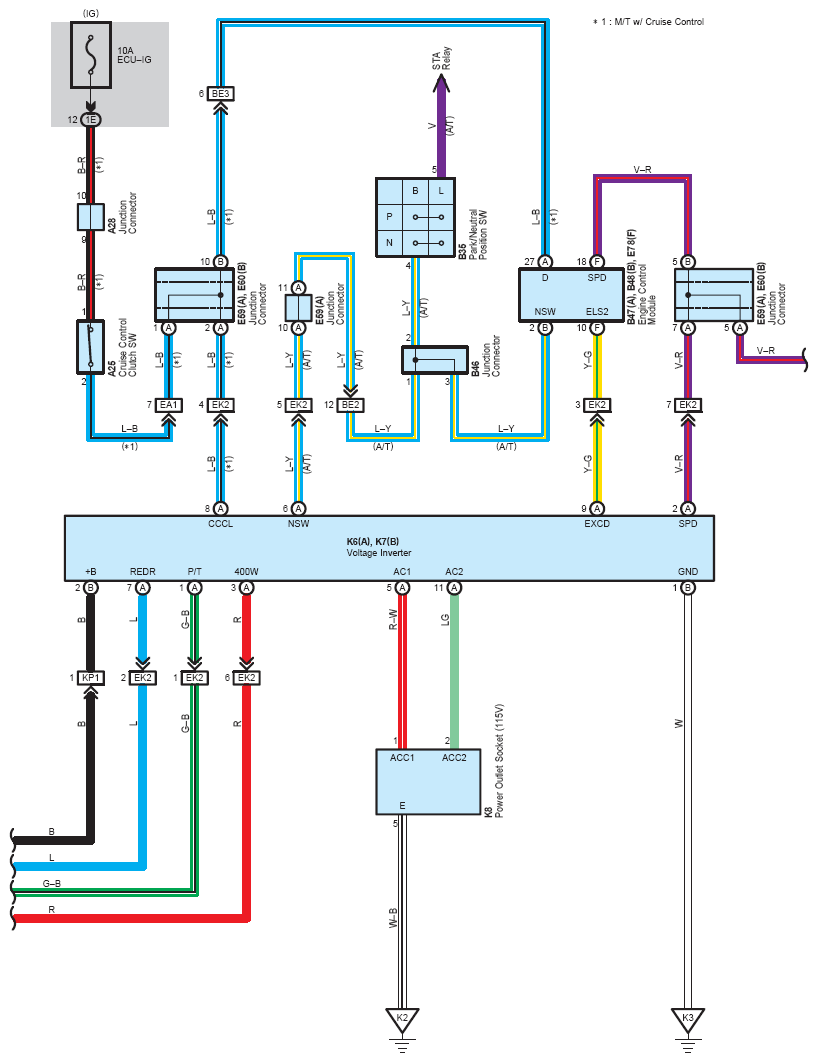

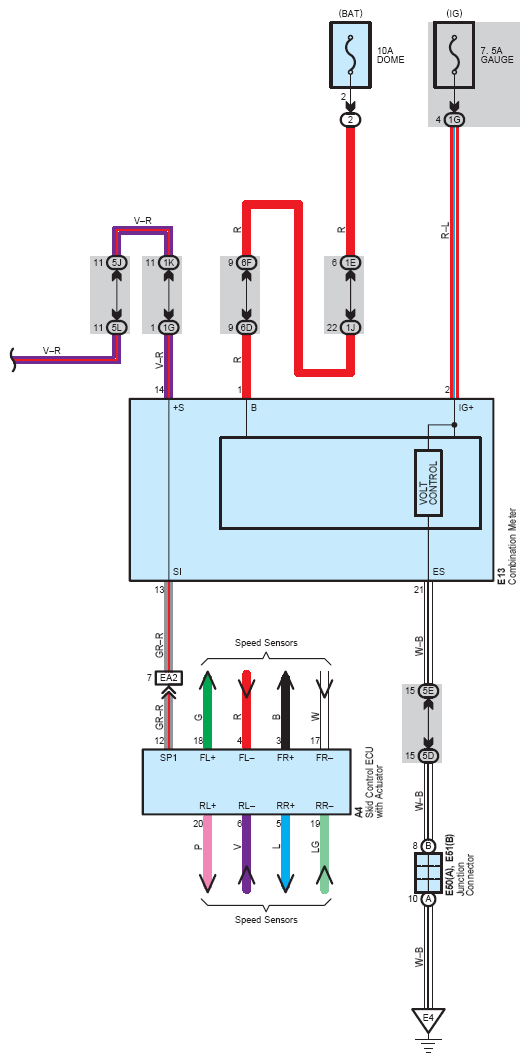

Fig 3: Power Outlet (115V) Wiring Diagram (3 Of 3)
G07116514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
