Door Lock Control and Glass Hatch Opener: Notes

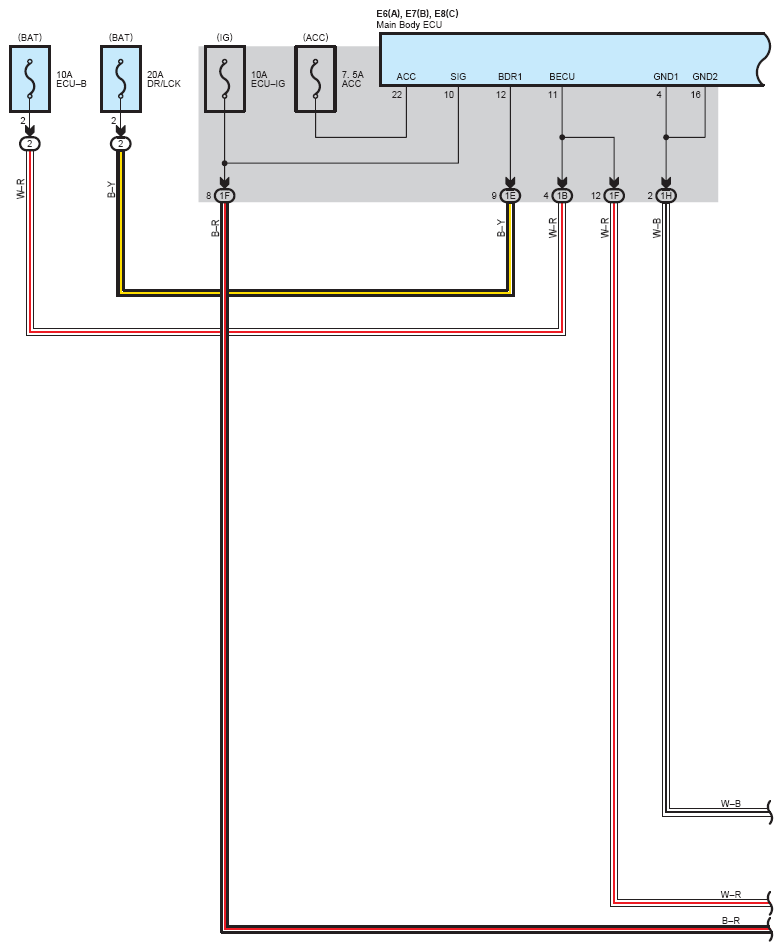

Fig 1: Door Lock Control And Glass Hatch Opener System Wiring Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

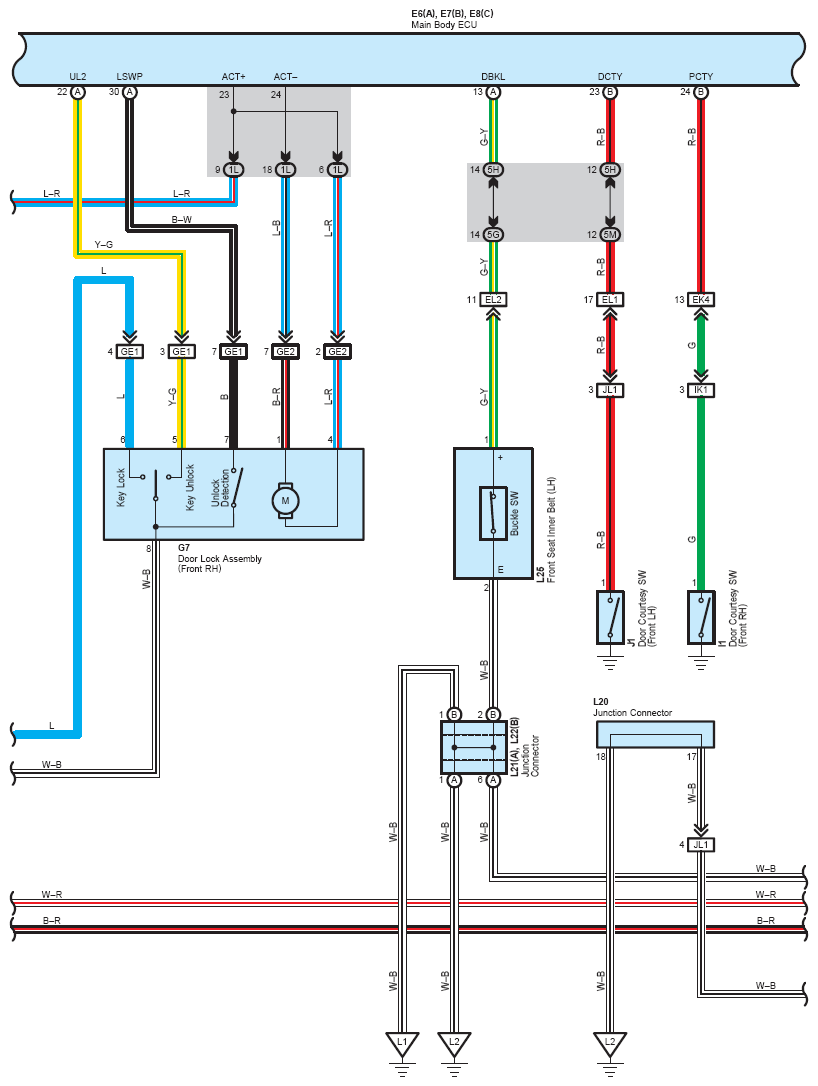

Fig 2: Door Lock Control And Glass Hatch Opener System Wiring Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

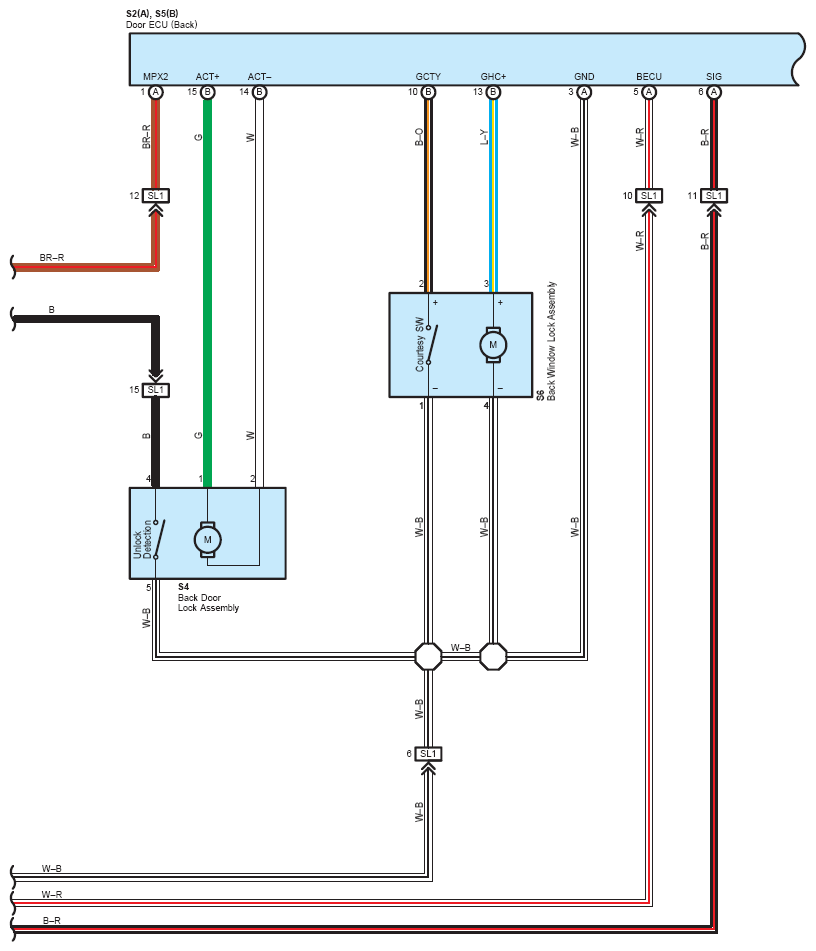

Fig 3: Door Lock Control And Glass Hatch Opener System Wiring Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

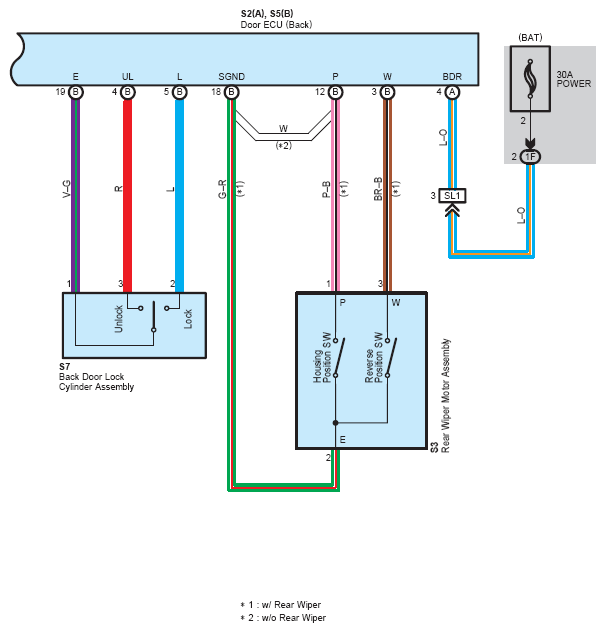

Fig 4: Door Lock Control And Glass Hatch Opener System Wiring Diagram (4 Of 6)

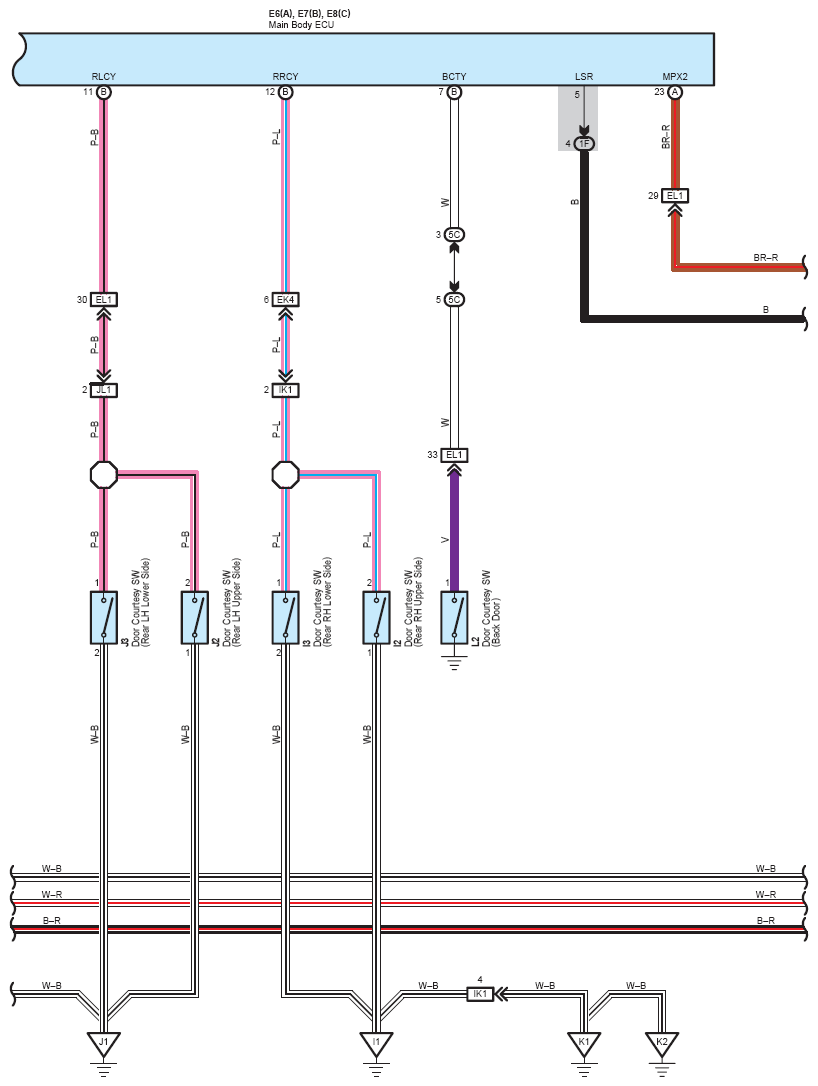

Fig 5: Door Lock Control And Glass Hatch Opener System Wiring Diagram (5 Of 6)

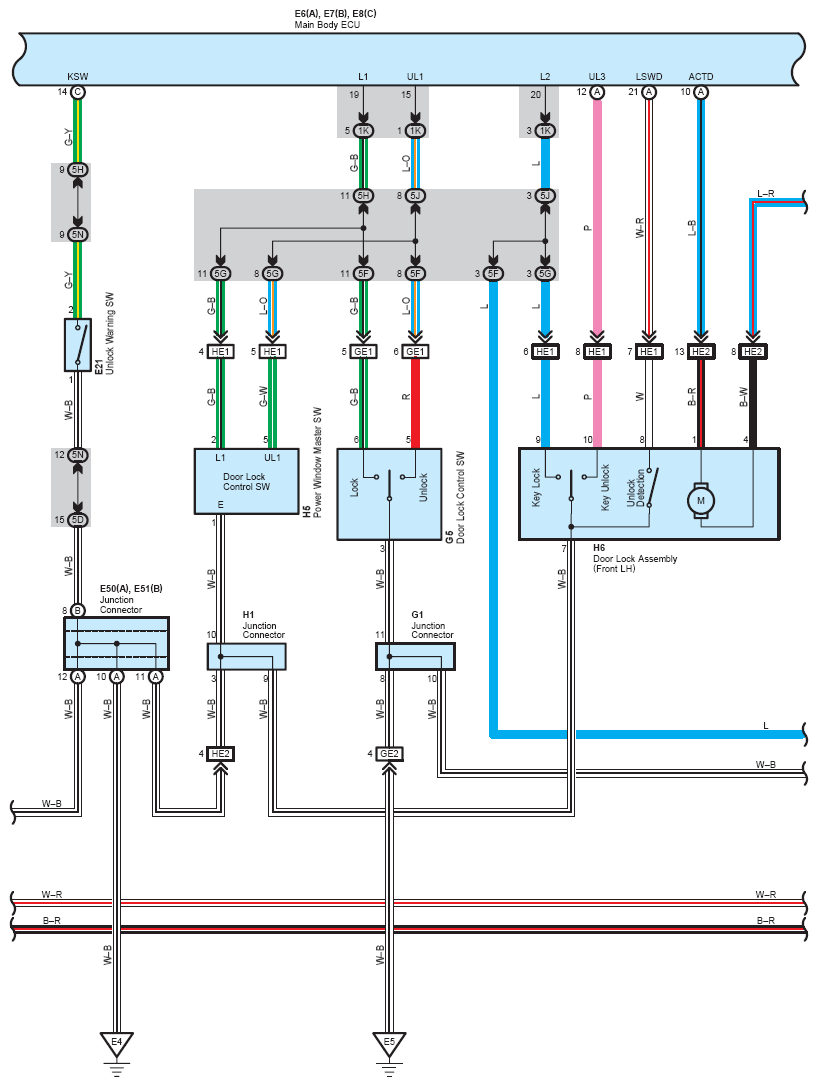

Fig 6: Door Lock Control And Glass Hatch Opener System Wiring Diagram (6 Of 6)
