Wireless Door Lock Control (TMC Made): Notes

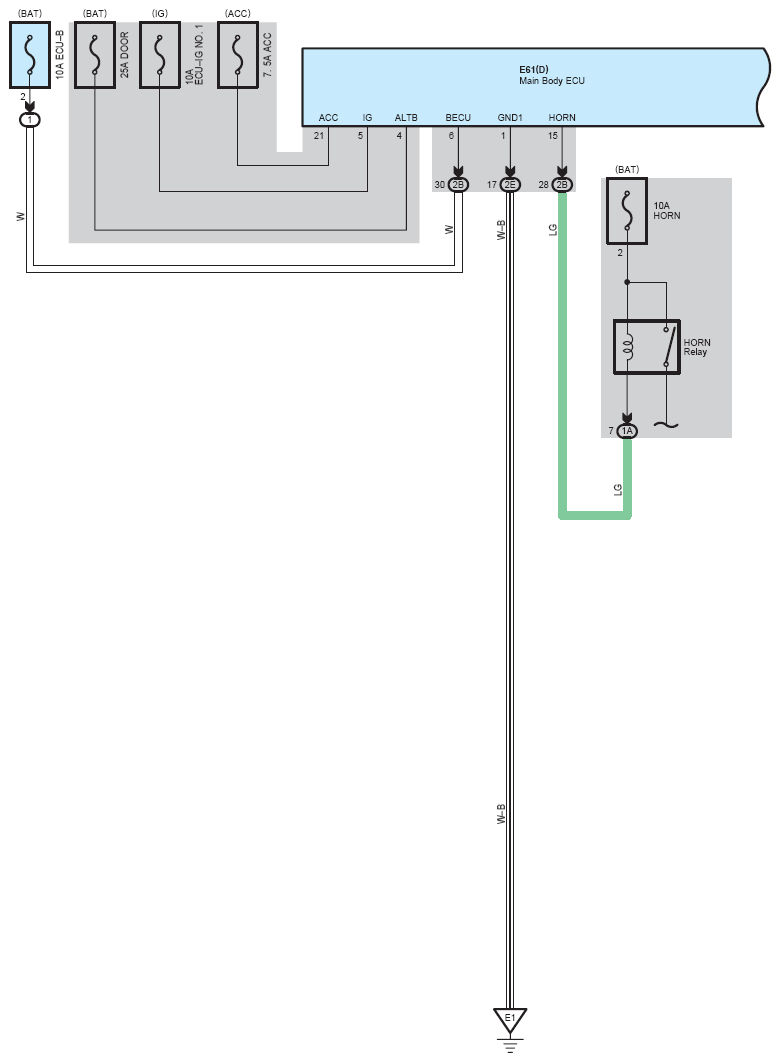

Fig 1: Wireless Door Lock Control (TMC Made) System Wiring Diagram (1 Of 4)
G07115046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

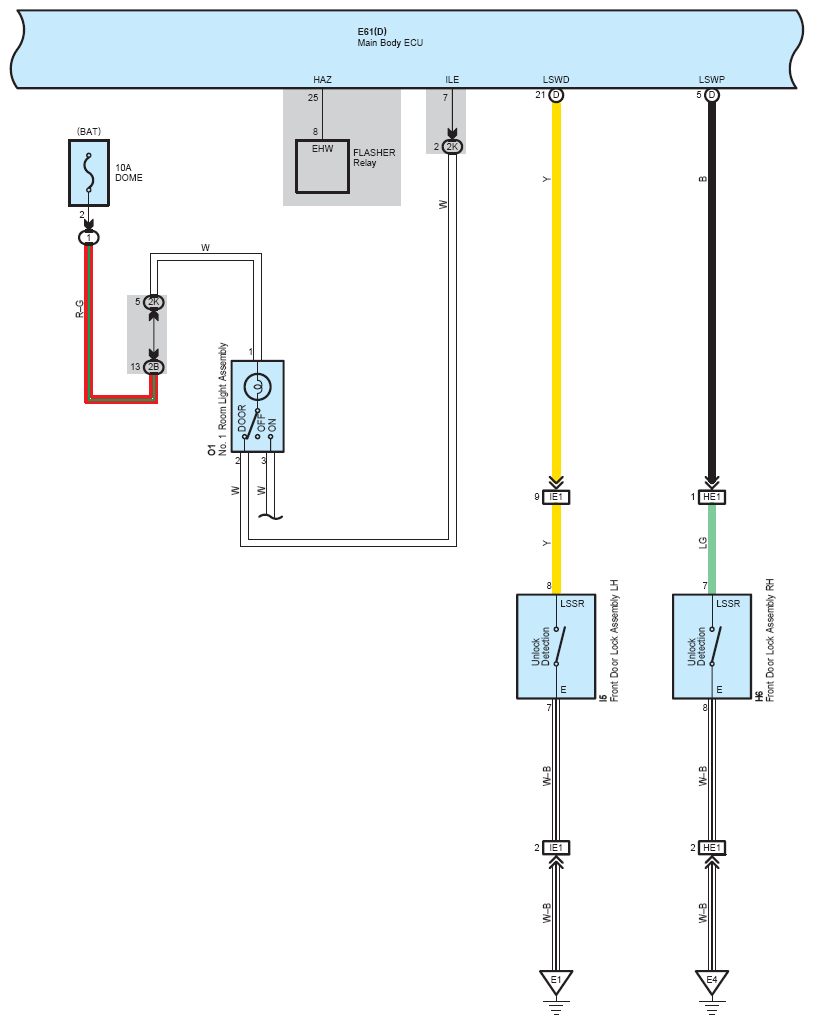

Fig 2: Wireless Door Lock Control (TMC Made) System Wiring Diagram (2 Of 4)
G07115047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

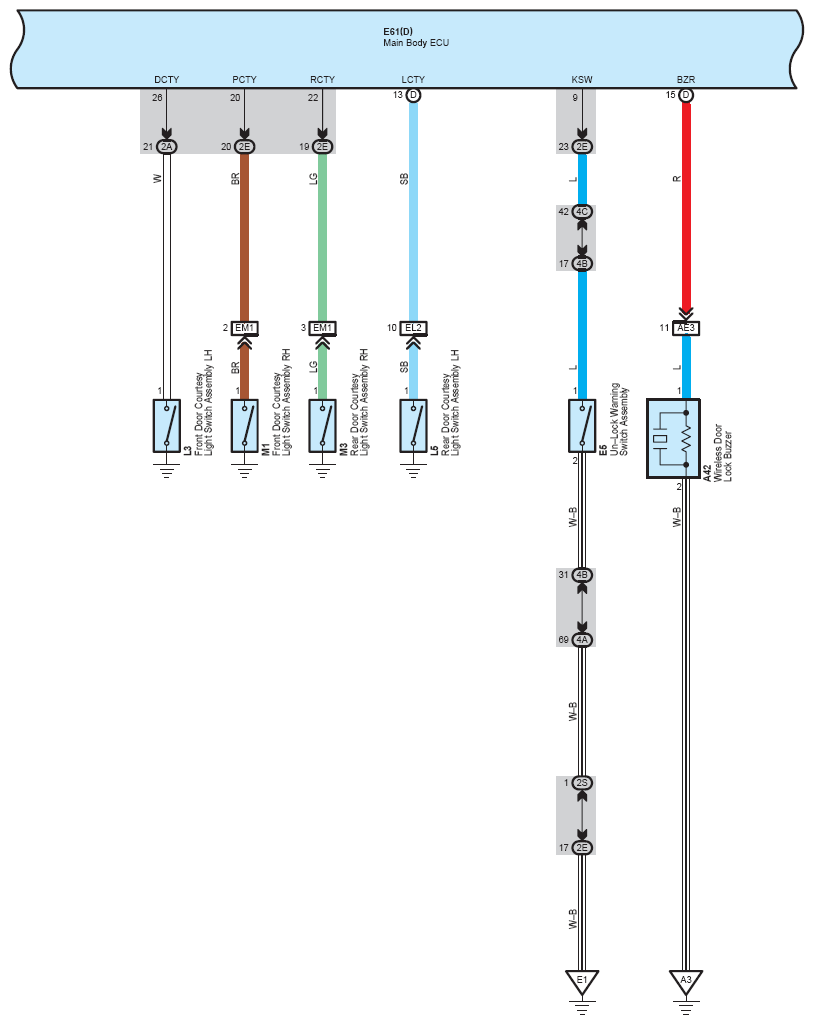

Fig 3: Wireless Door Lock Control (TMC Made) System Wiring Diagram (3 Of 4)
G07115048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

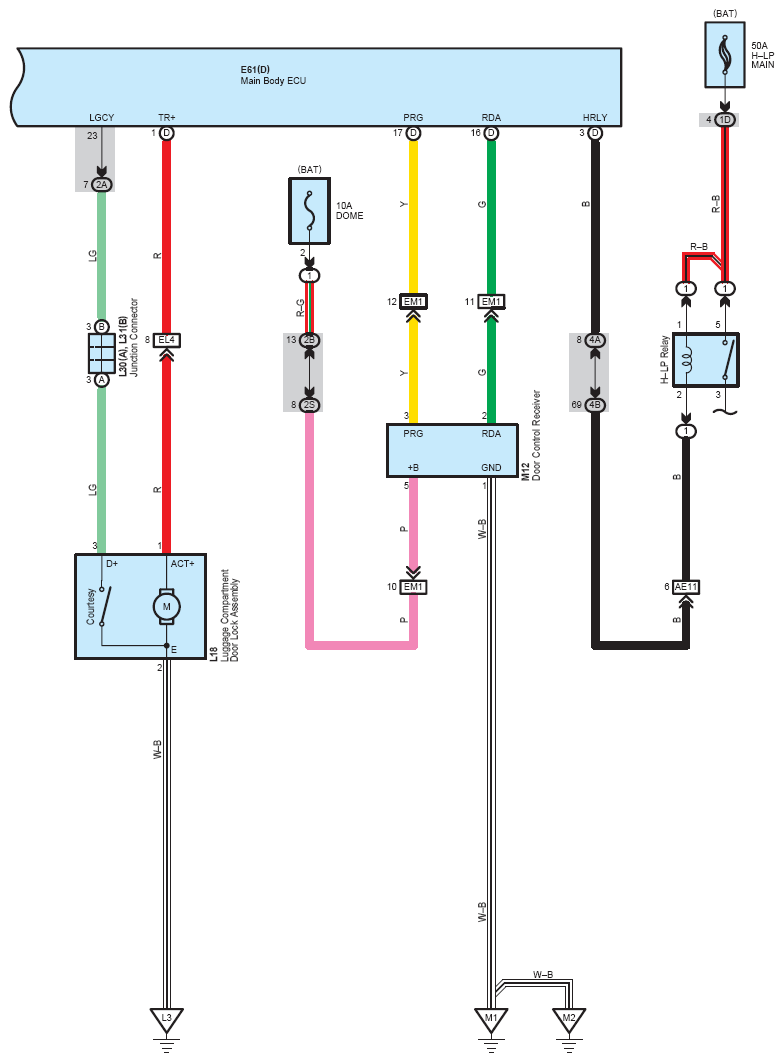

Fig 4: Wireless Door Lock Control (TMC Made) System Wiring Diagram (4 Of 4)
G07115049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
