Tire Pressure Warning System (TMC Made): Notes

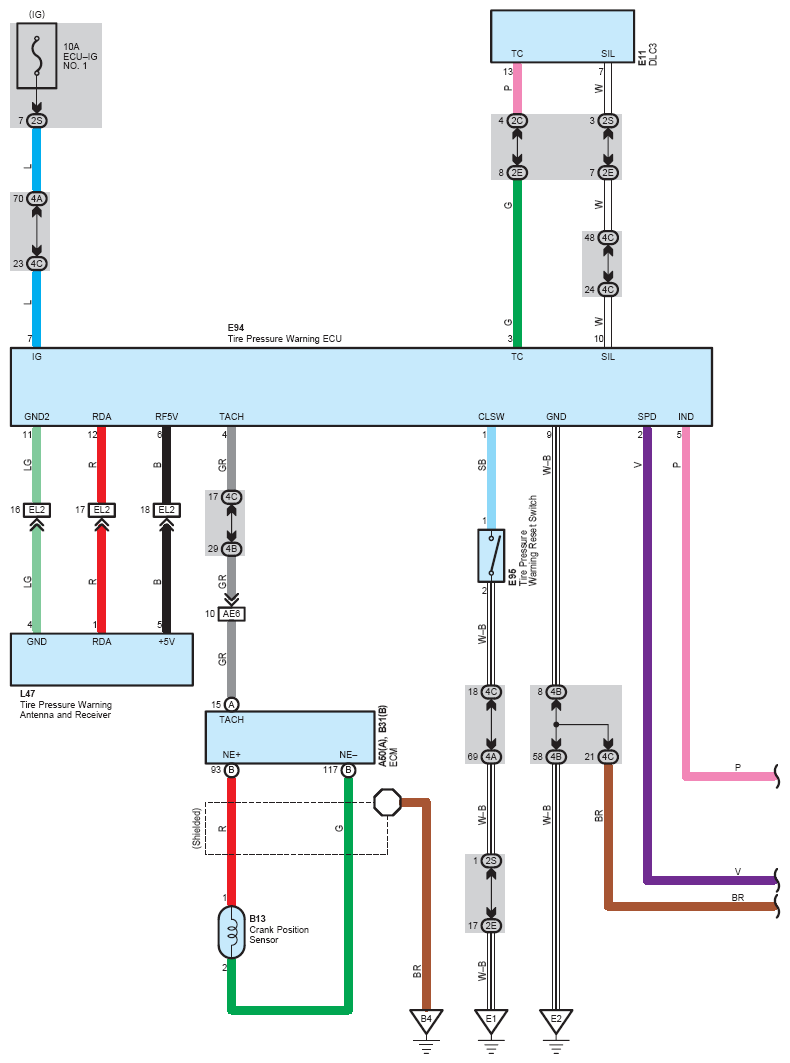

Fig 1: Tire Pressure Warning System (TMC Made) Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

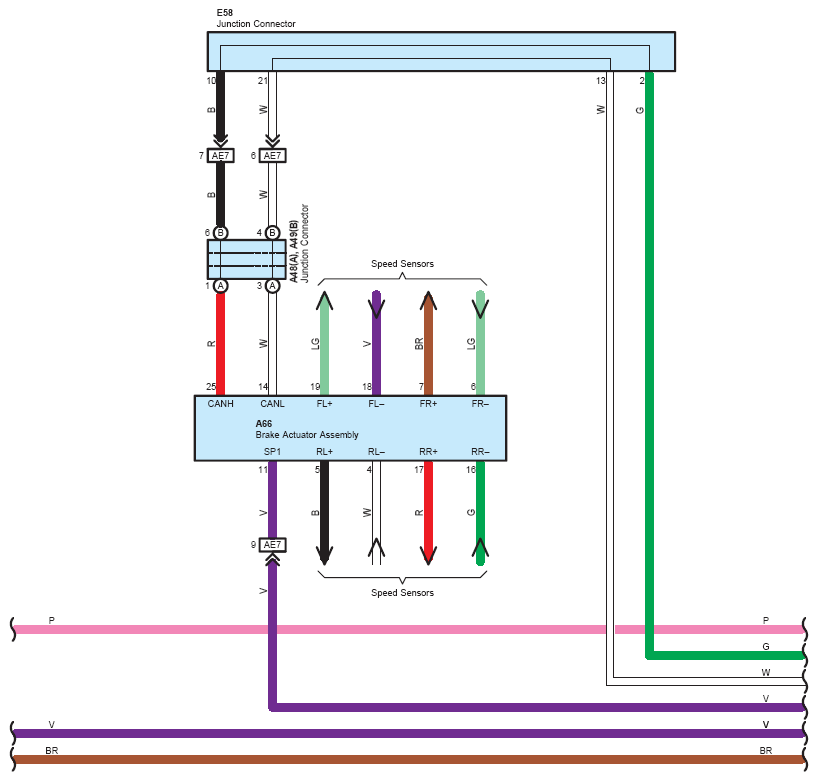

Fig 2: Tire Pressure Warning System (TMC Made) Wiring Diagram (2 Of 3)

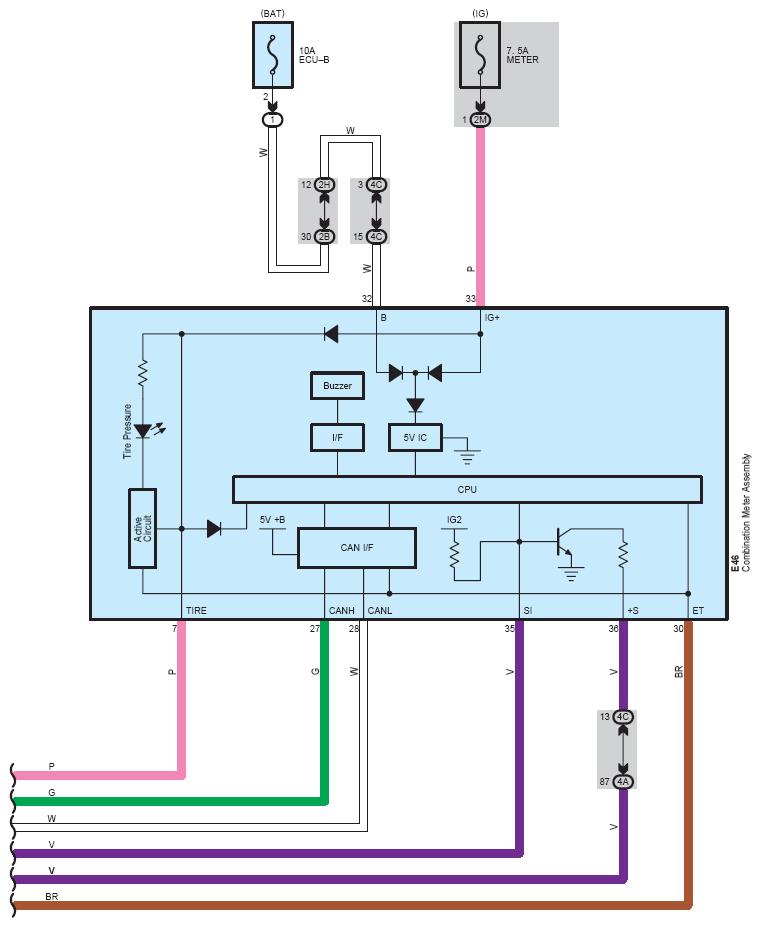

Fig 3: Tire Pressure Warning System (TMC Made) Wiring Diagram (3 Of 3)
