Corolla LE
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM System Circuits
>>
Stop Light (TMC Made)
>>
Notes
Stop Light (TMC Made): Notes

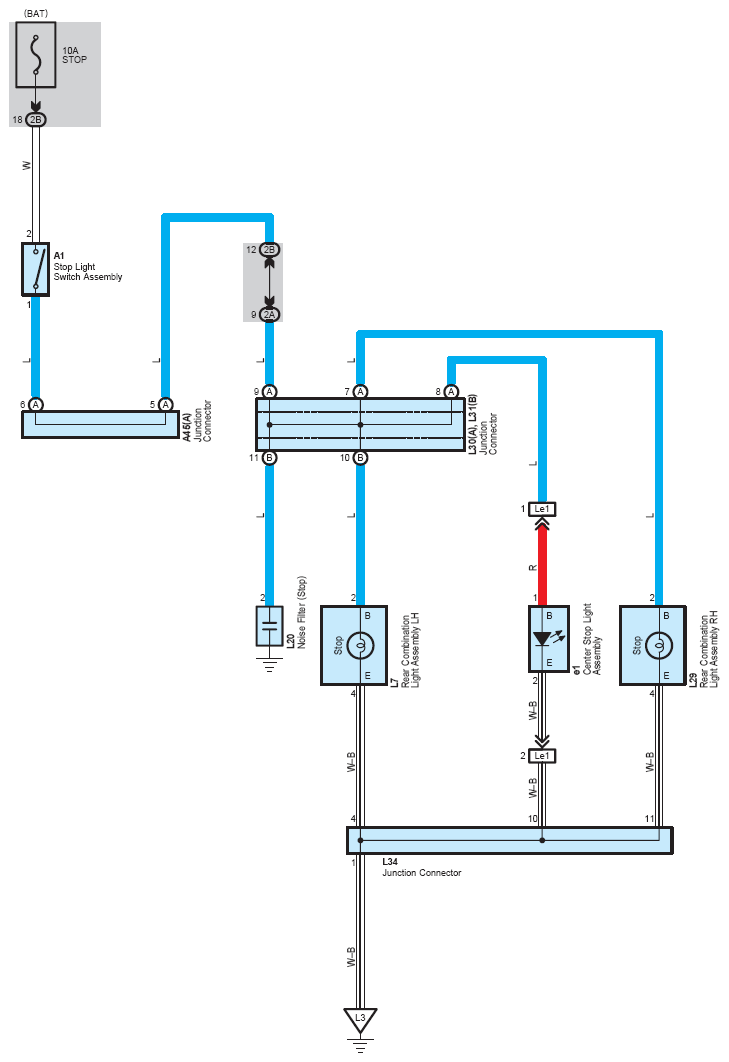

Fig 1: Stop Light (TMC Made) System Wiring Diagram
