Stop Light (Except TMC Made)
>>
Notes
Stop Light (Except TMC Made): Notes

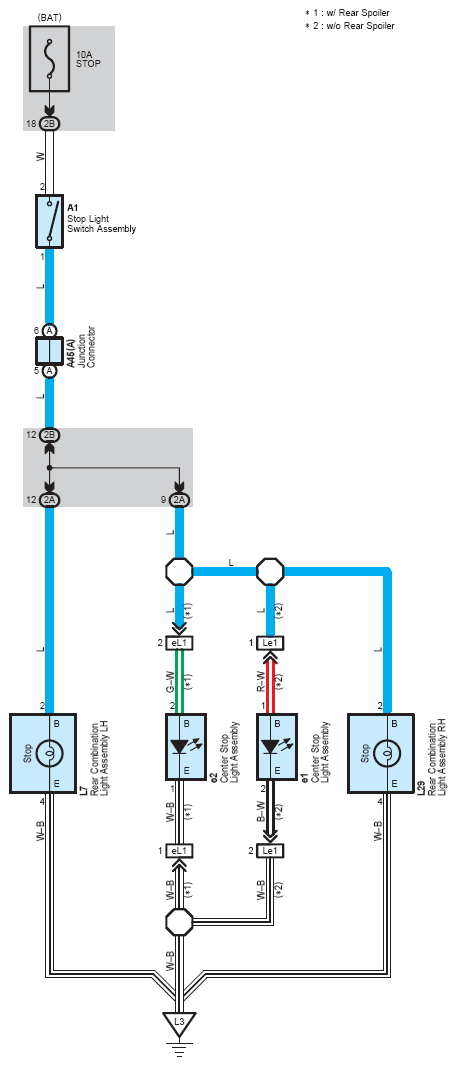

Fig 1: Stop Light (Except TMC Made) System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
