Corolla LE
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM System Circuits
>>
Shift Lock (Except TMC Made)
>>
Notes
Shift Lock (Except TMC Made): Notes

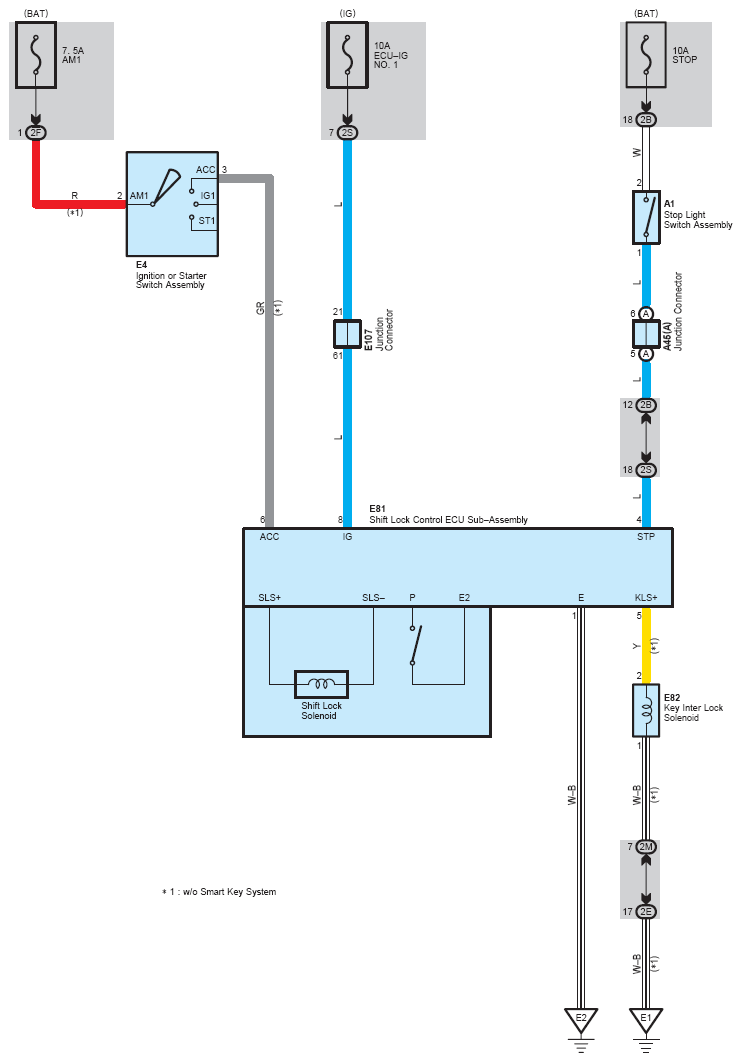

Fig 1: Shift Lock (Except TMC Made) System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
