Multiplex Communication System (CAN) (TMC Made): Notes

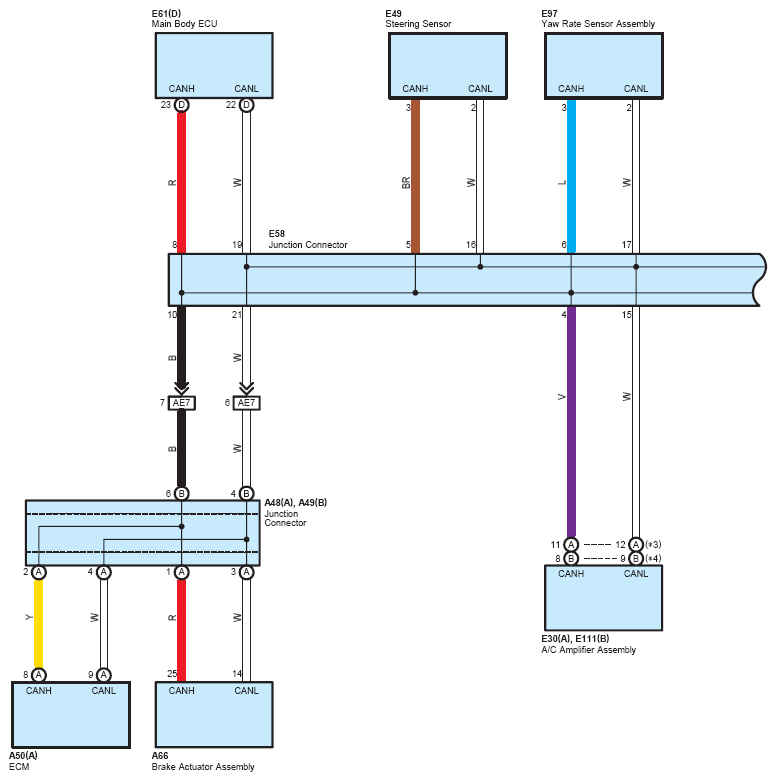

Fig 1: Multiplex Communication System (CAN) (TMC Made) Wiring Diagram (1 Of 2)
G07114987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

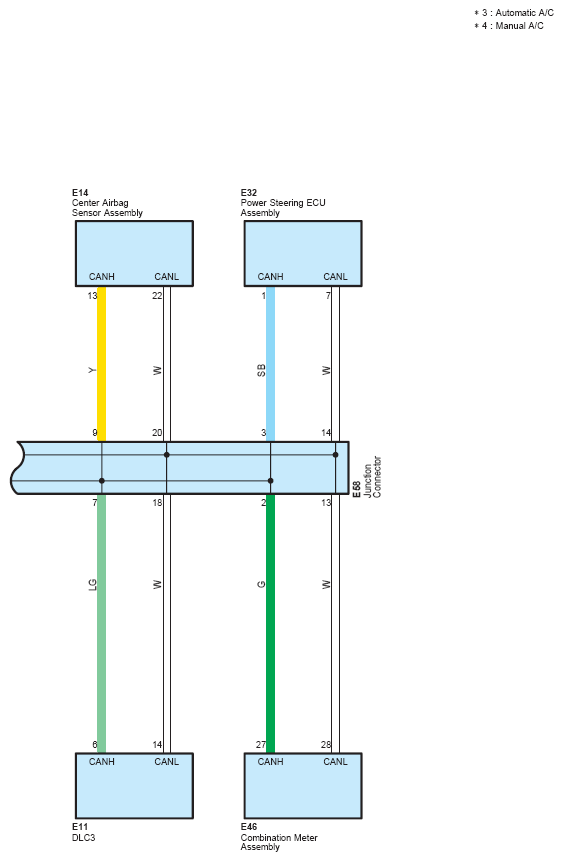

Fig 2: Multiplex Communication System (CAN) (TMC Made) Wiring Diagram (2 Of 2)
G07114988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
