Light Reminder (TMC Made): Notes

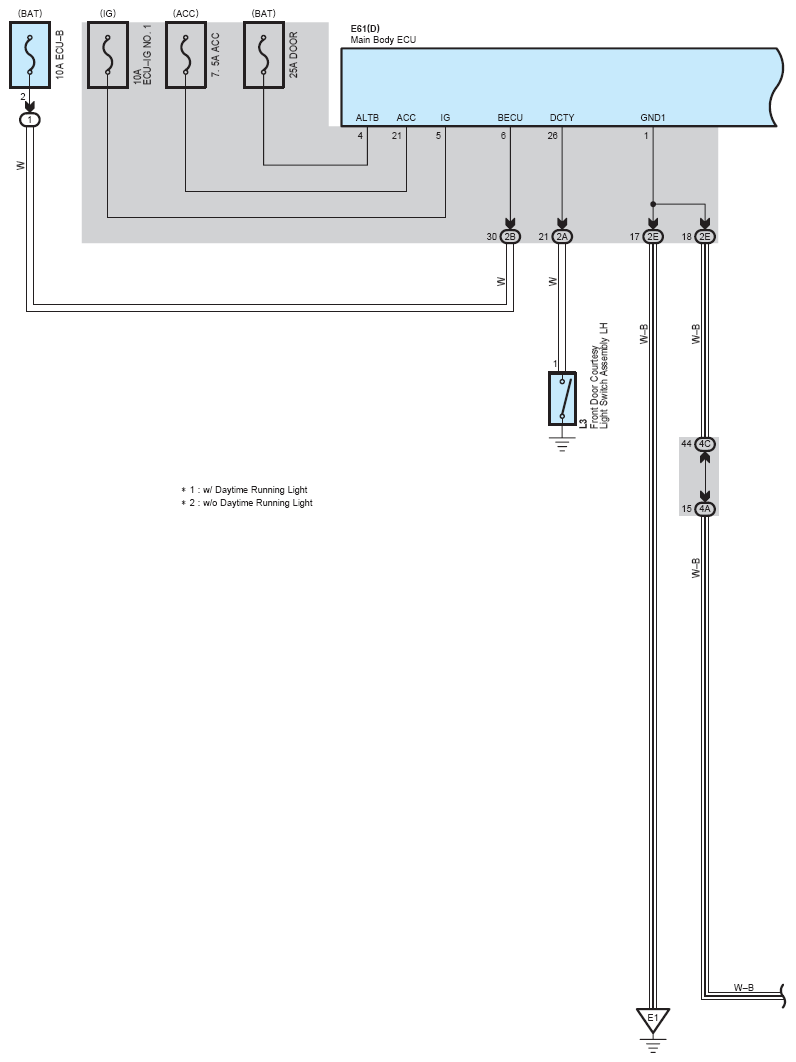

Fig 1: Light Reminder (TMC Made) System Wiring Diagram (1 Of 2)
G07115010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

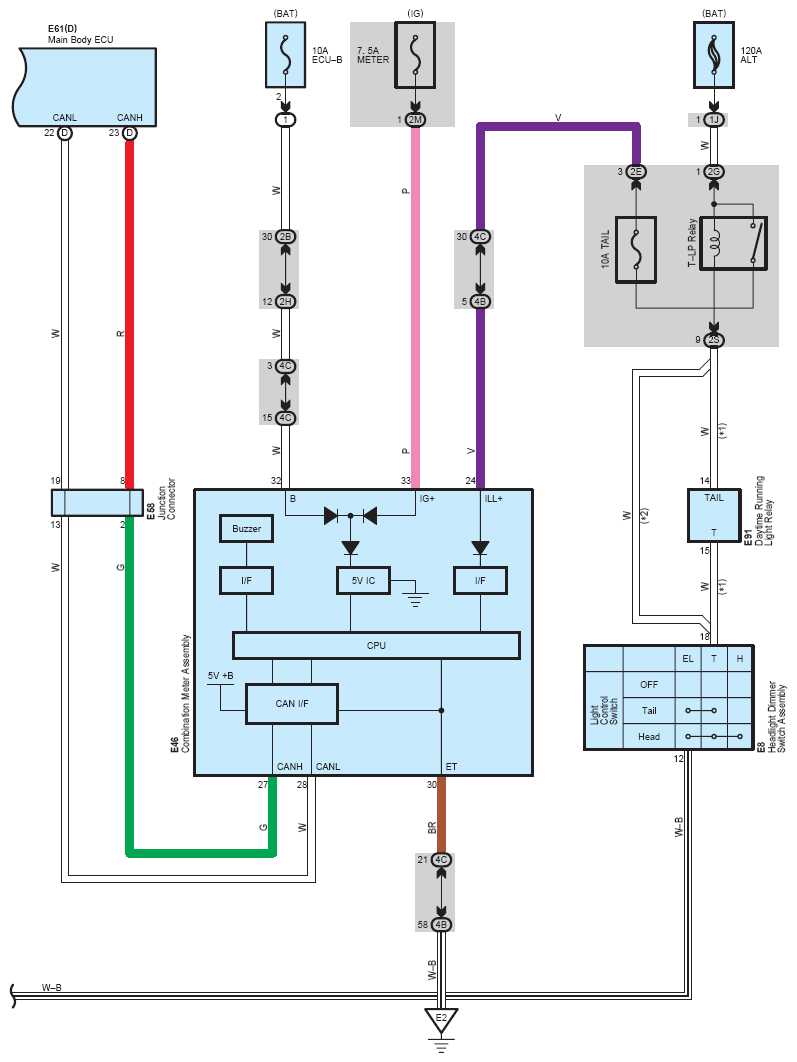

Fig 2: Light Reminder (TMC Made) System Wiring Diagram (2 Of 2)
G07115011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
