Light Reminder (Except TMC Made): Notes

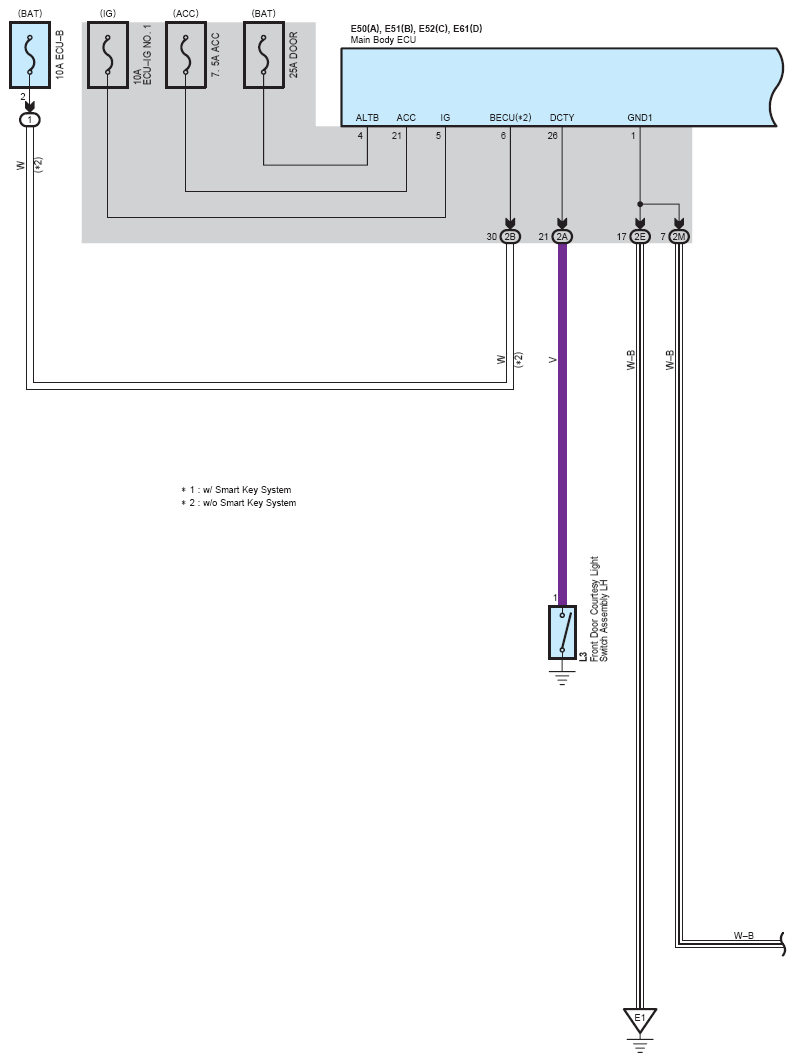

Fig 1: Light Reminder (Except TMC Made) System Wiring Diagram (1 Of 3)
G07115157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

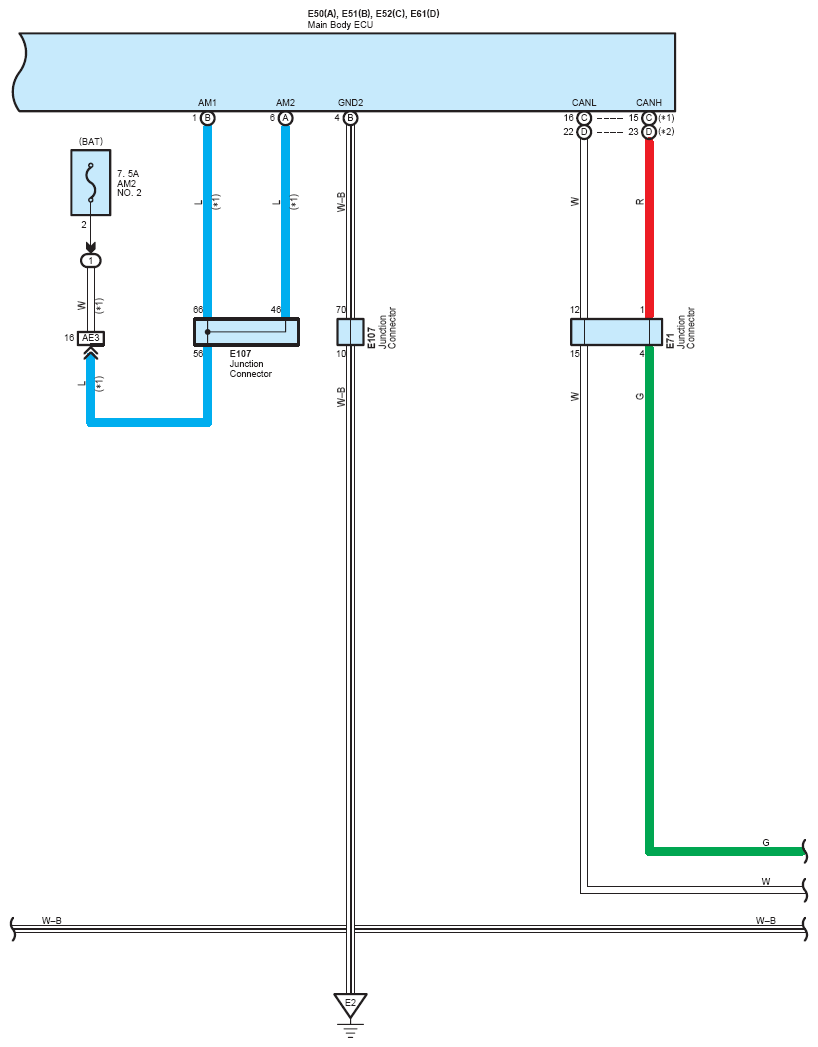

Fig 2: Light Reminder (Except TMC Made) System Wiring Diagram (2 Of 3)
G07115158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

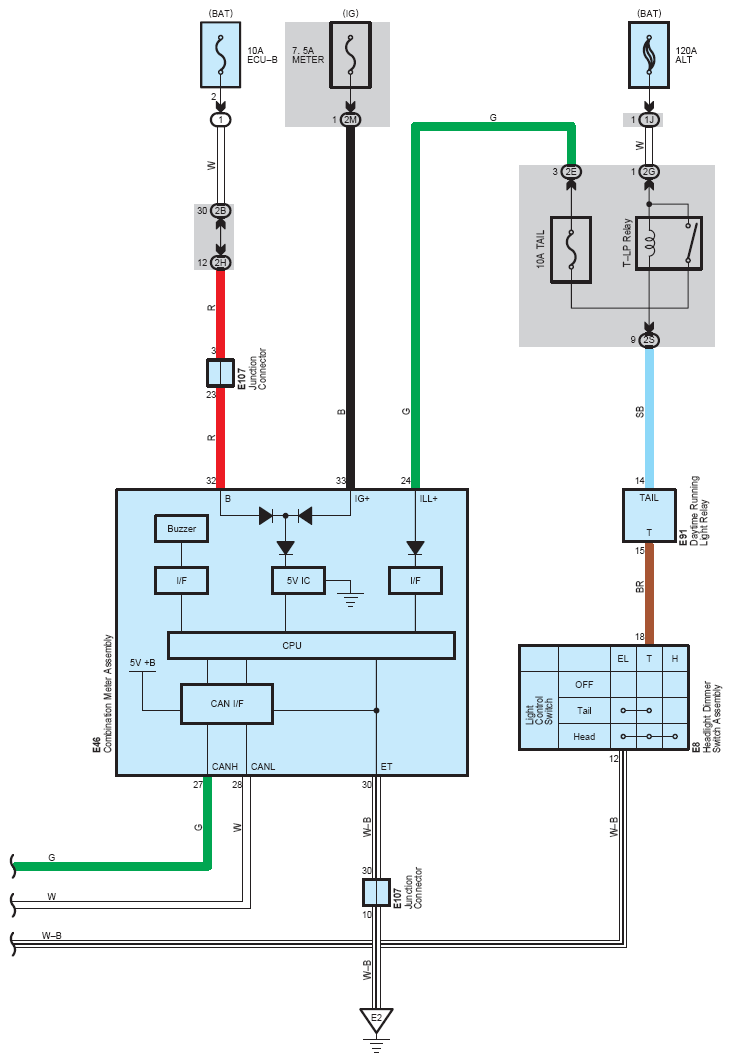

Fig 3: Light Reminder (Except TMC Made) System Wiring Diagram (3 Of 3)
G07115159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
