Interior Light (TMC Made): Notes

Fig 1: Interior Light (TMC Made) (1 Of 3)
G07115003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

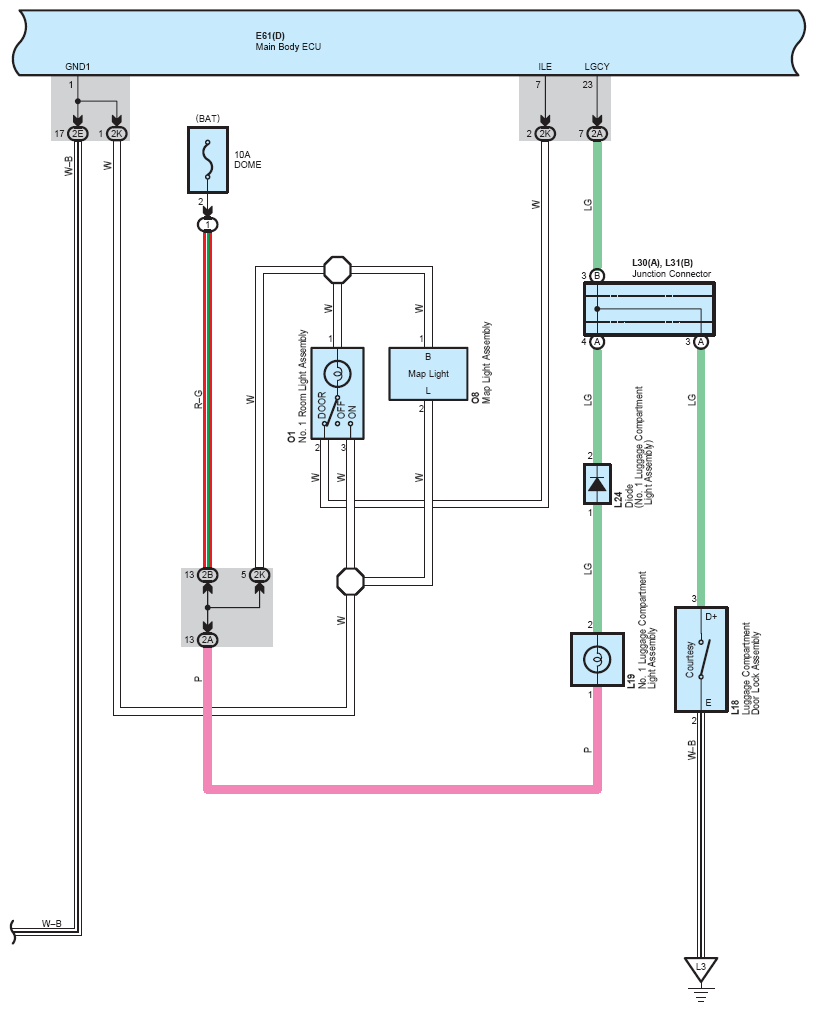

Fig 2: Interior Light (TMC Made) (2 Of 3)
G07115004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

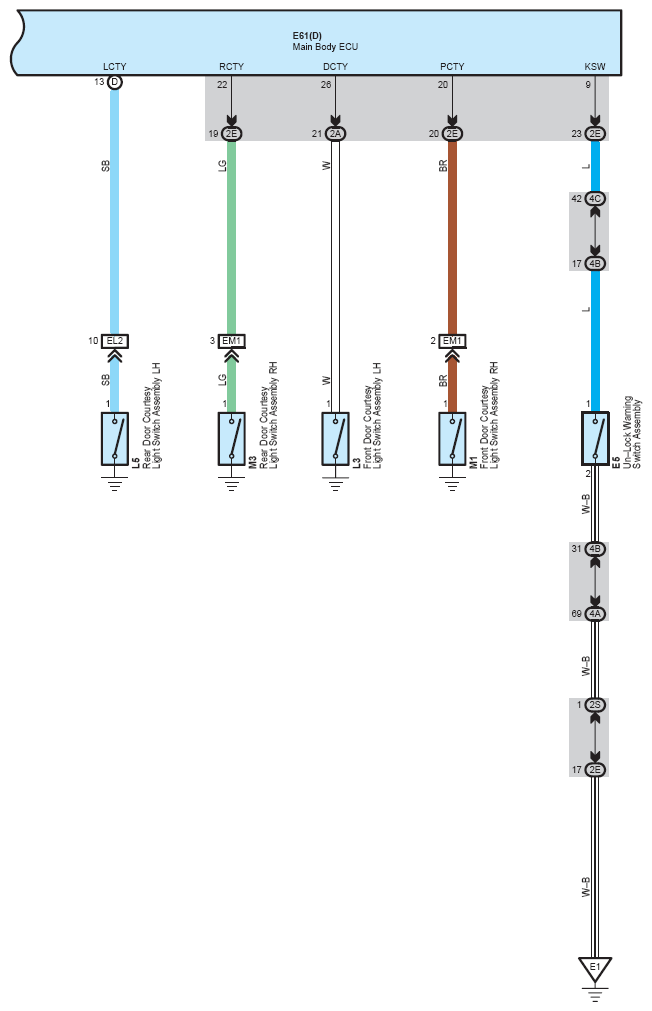

Fig 3: Interior Light (TMC Made) (3 Of 3)
G07115005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
