Horn (TMC Made): Notes

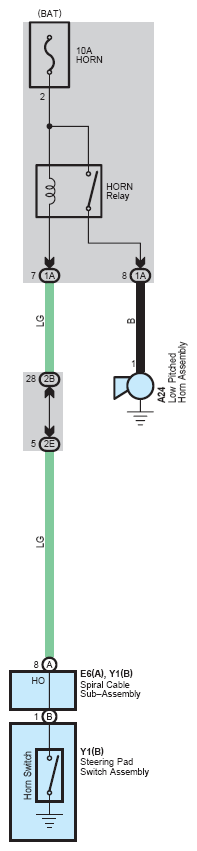

Fig 1: Horn (TMC Made) System Wiring Diagram

G07115060

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
