Headlight (Except TMC Made): Notes

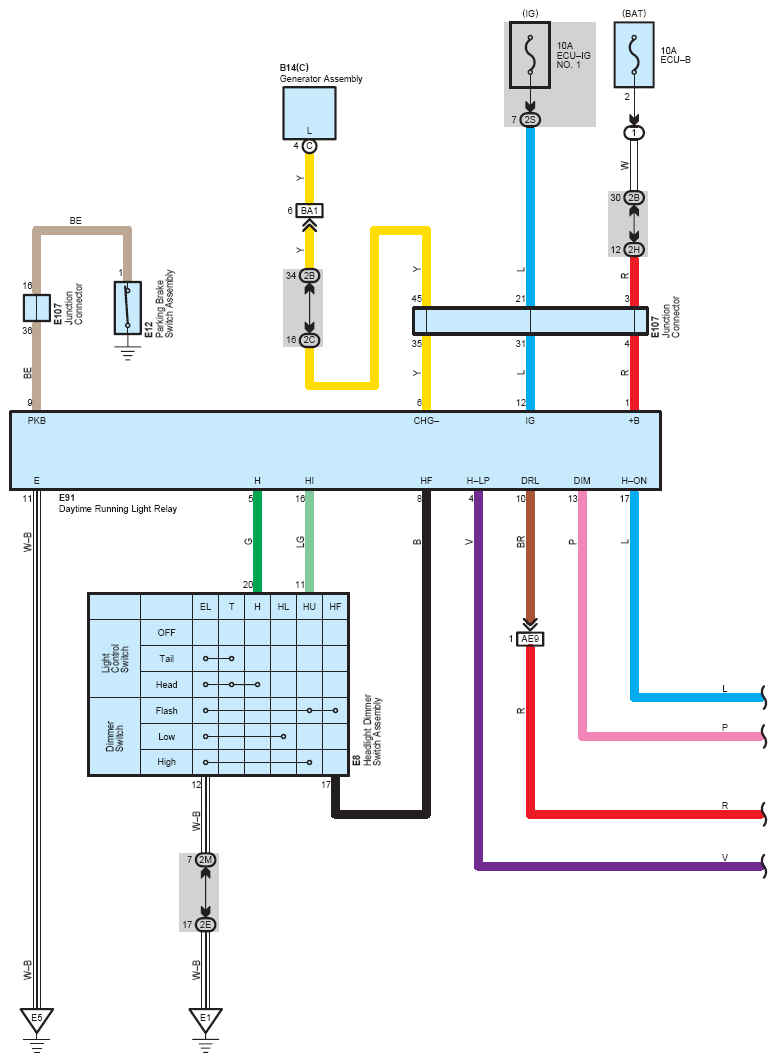

Fig 1: Headlight (Except TMC Made) System Wiring Diagram (1 Of 3)
G07115136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

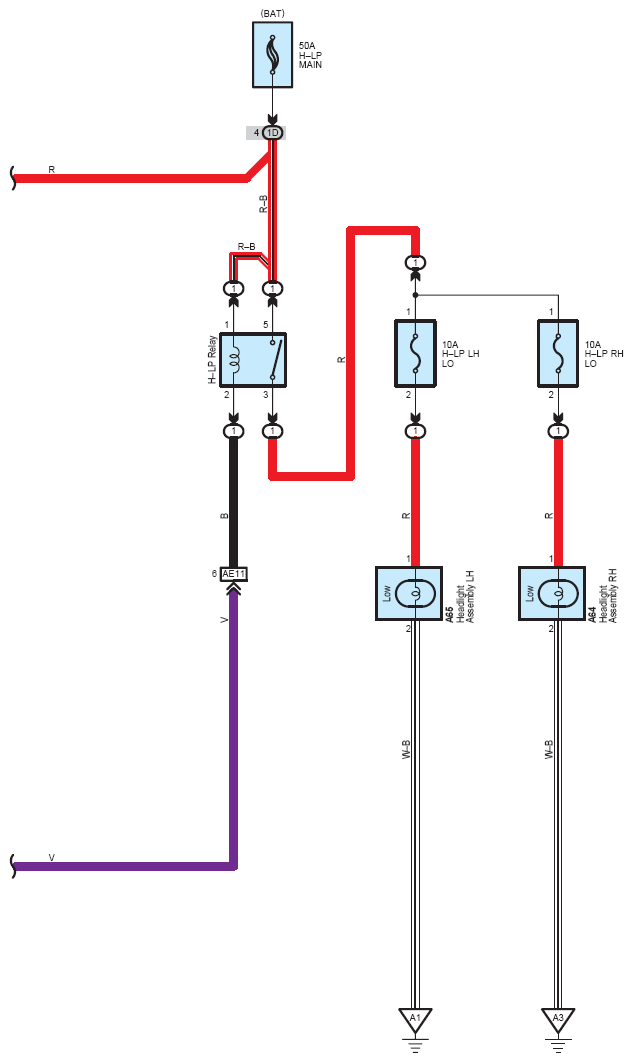

Fig 2: Headlight (Except TMC Made) System Wiring Diagram (2 Of 3)
G07115137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

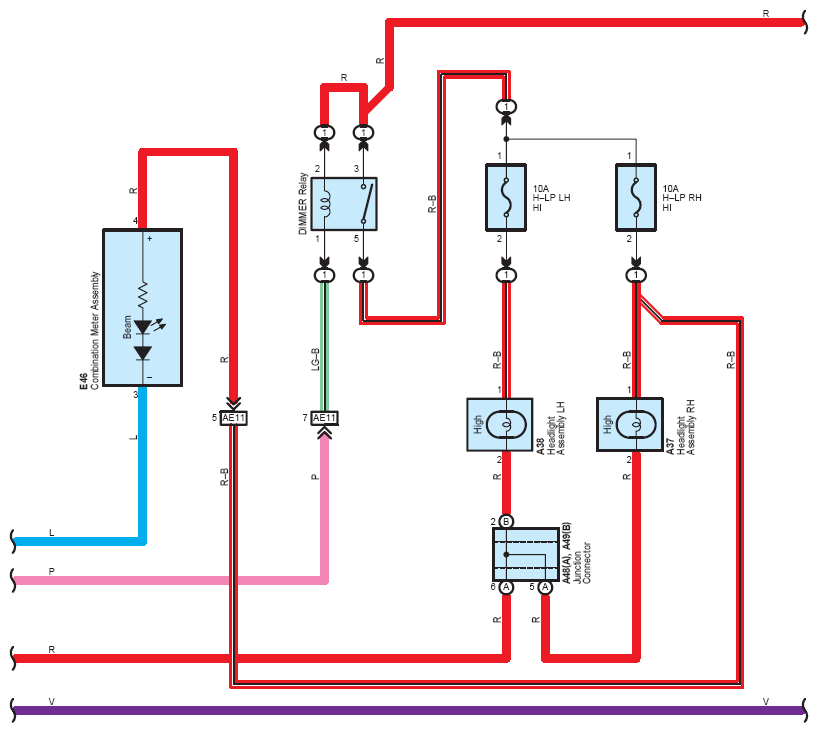

Fig 3: Headlight (Except TMC Made) System Wiring Diagram (3 Of 3)
G07115138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
