Engine Immobiliser System (TMC Made): Notes

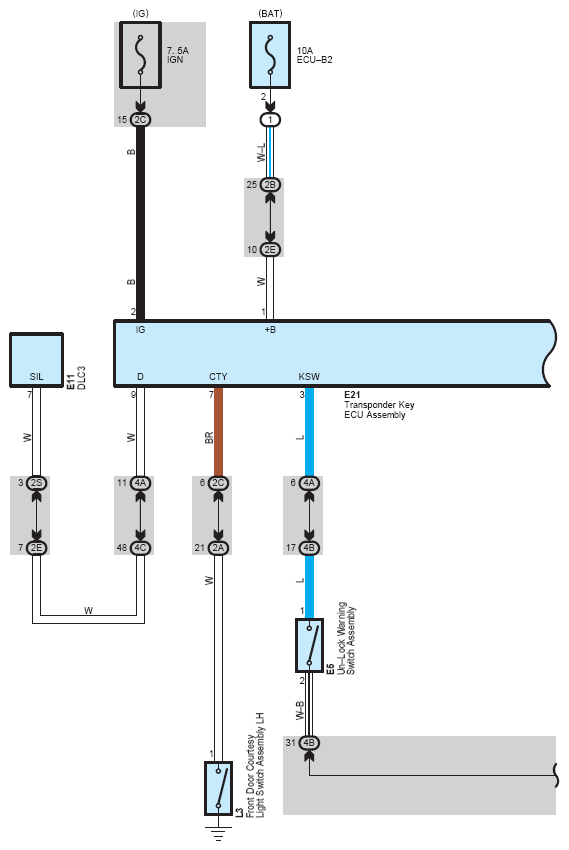

Fig 1: Engine Immobiliser System (TMC Made) Wiring Diagram (1 Of 2)
G07114984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

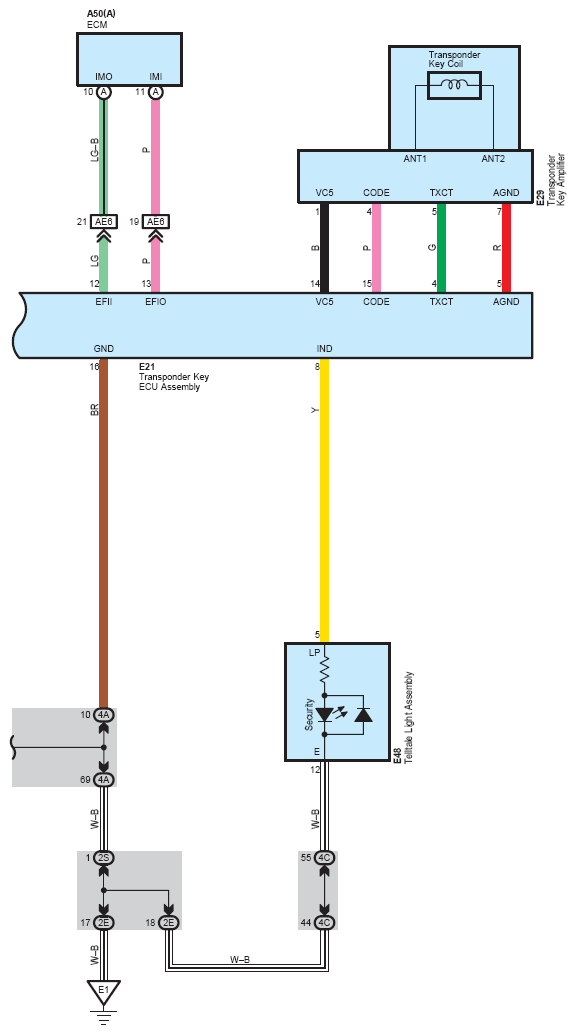

Fig 2: Engine Immobiliser System (TMC Made) Wiring Diagram (2 Of 2)
G07114985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
