Engine Control (2ZR-FE) (Except TMC Made): Notes

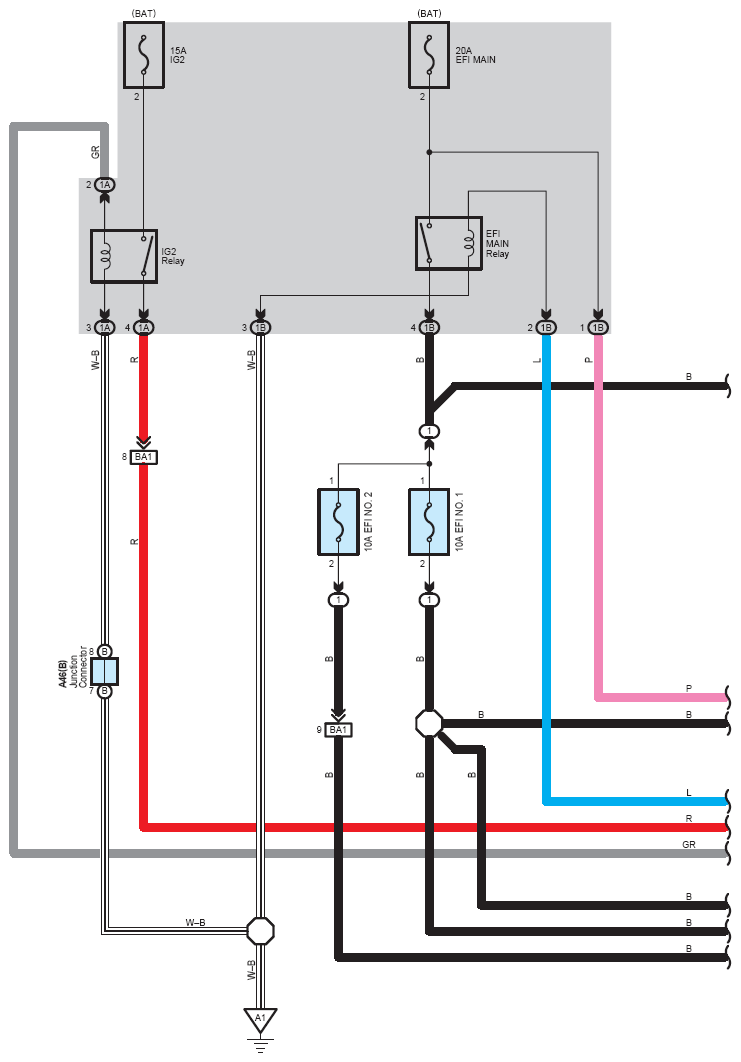

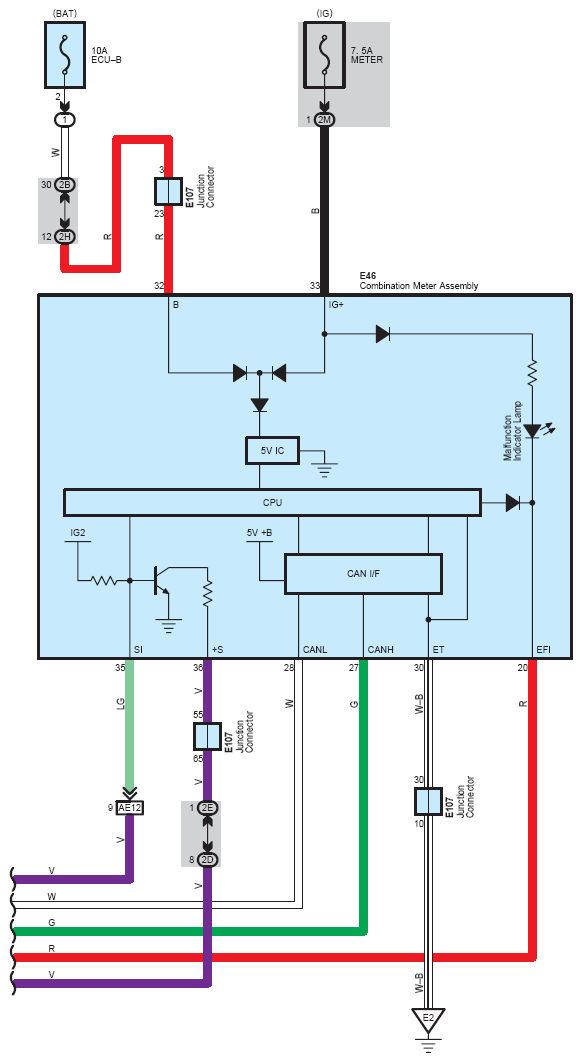

Fig 1: Engine Control (2ZR-FE) (Except TMC Made) System Wiring Diagram (1 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

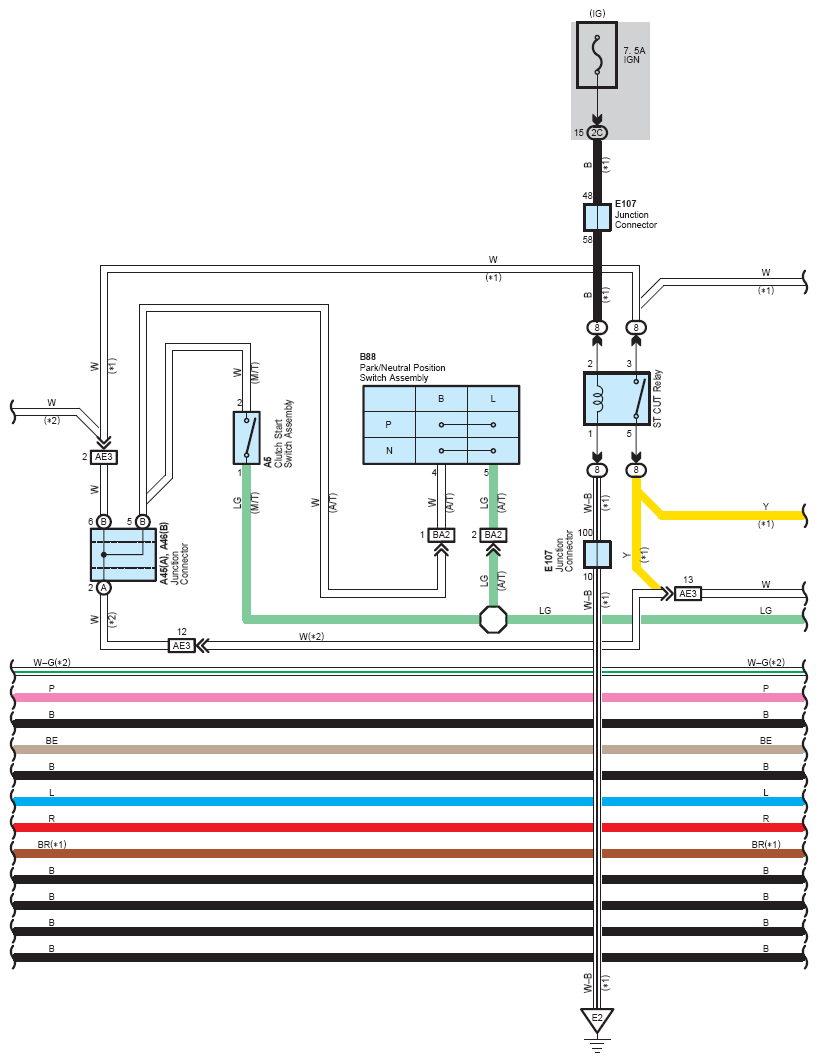

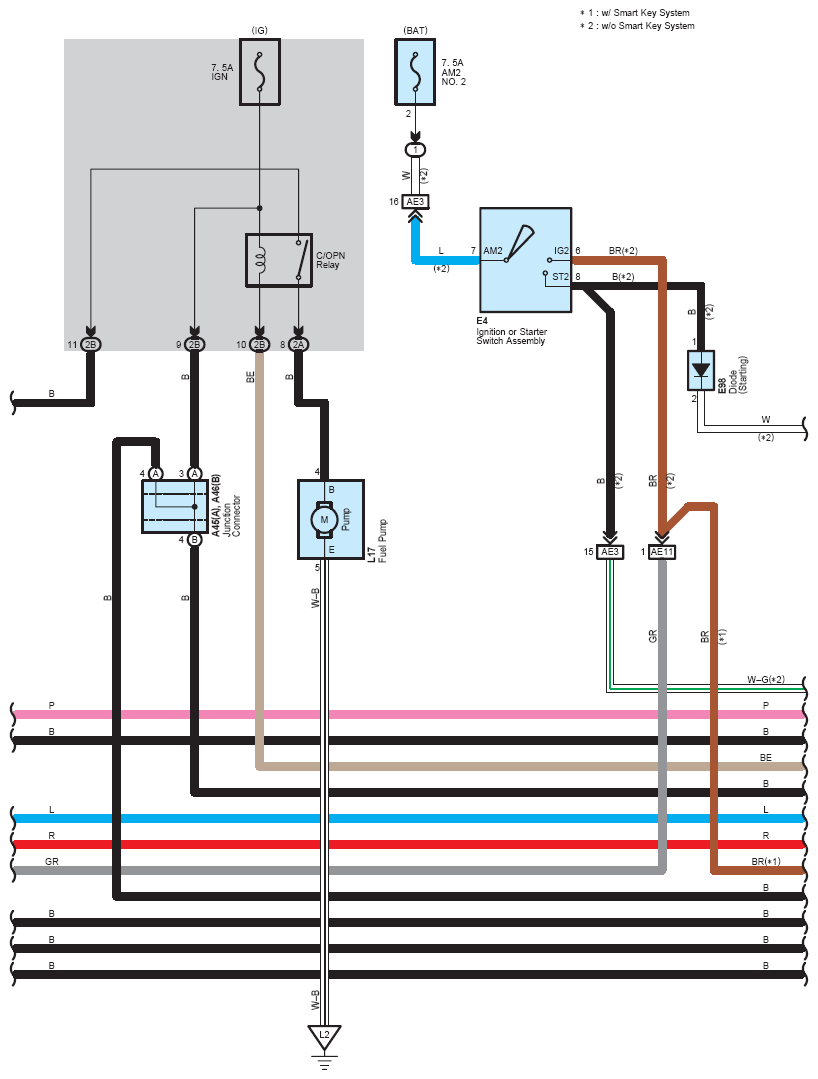

Fig 2: Engine Control (2ZR-FE) (Except TMC Made) System Wiring Diagram (2 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

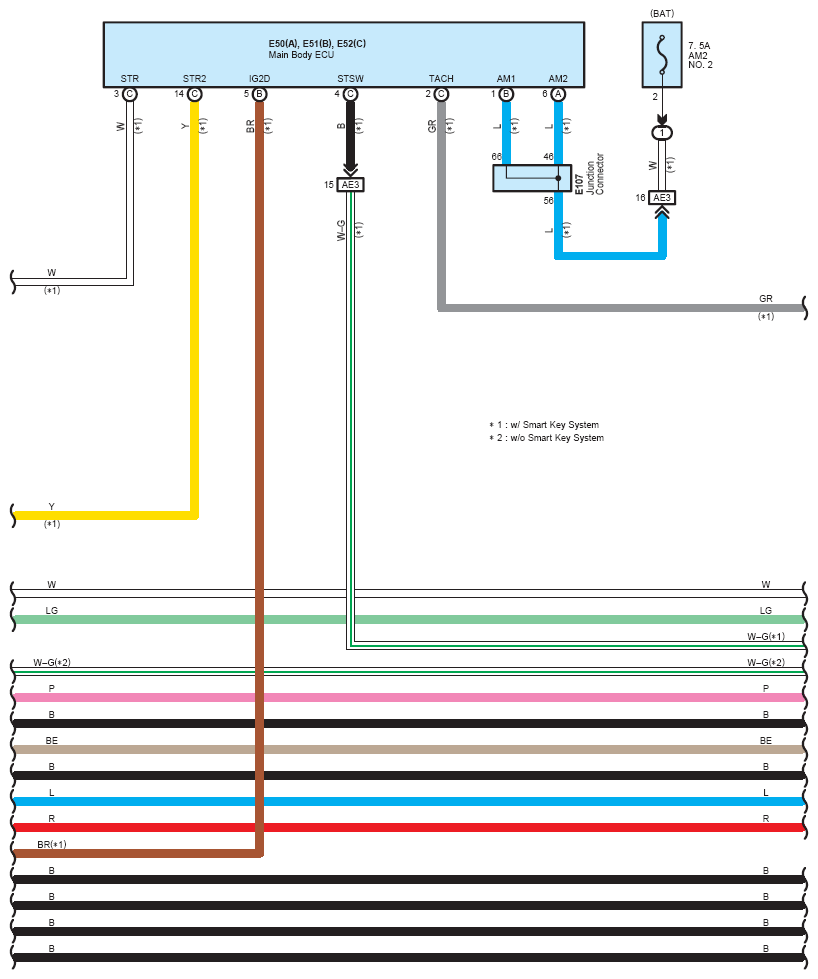

Fig 3: Engine Control (2ZR-FE) (Except TMC Made) System Wiring Diagram (3 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

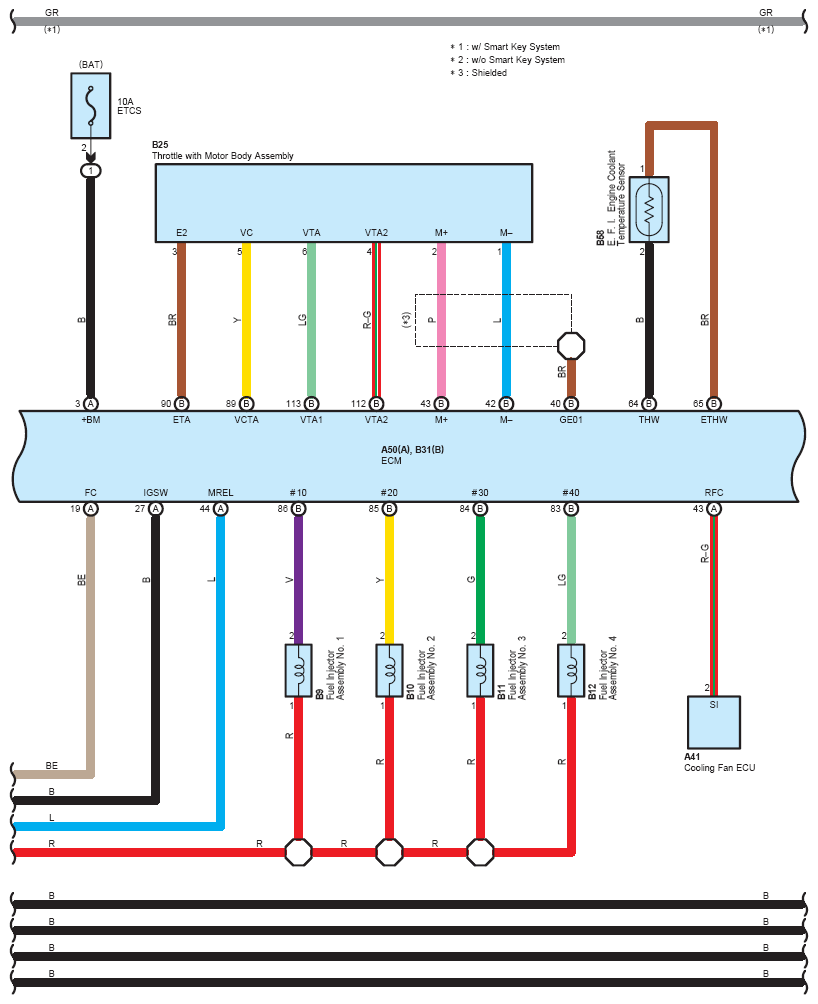

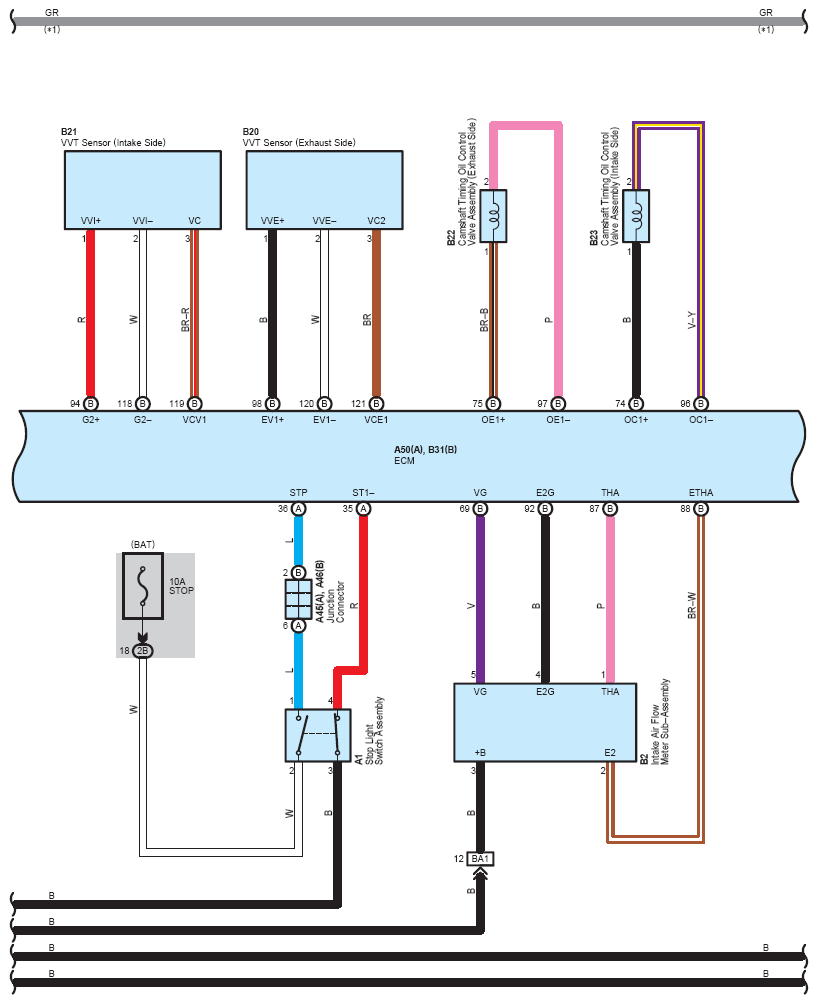

Fig 4: Engine Control (2ZR-FE) (Except TMC Made) System Wiring Diagram (4 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Engine Control (2ZR-FE) (Except TMC Made) System Wiring Diagram (5 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

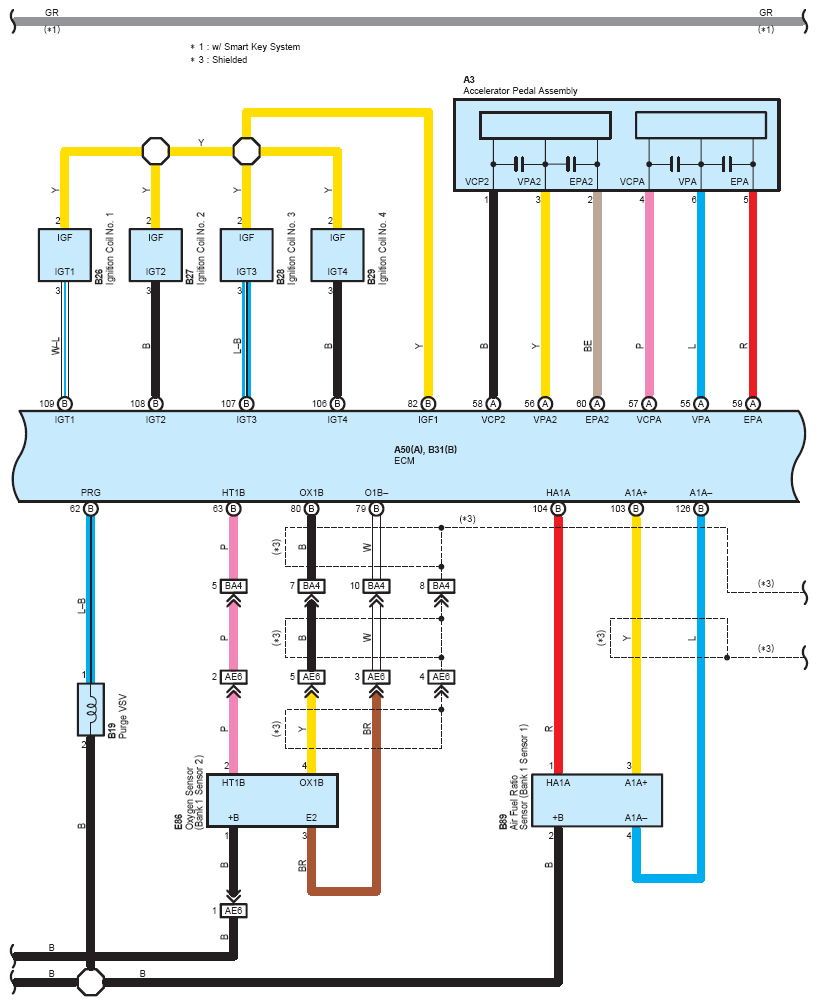

Fig 6: Engine Control (2ZR-FE) (Except TMC Made) System Wiring Diagram (6 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

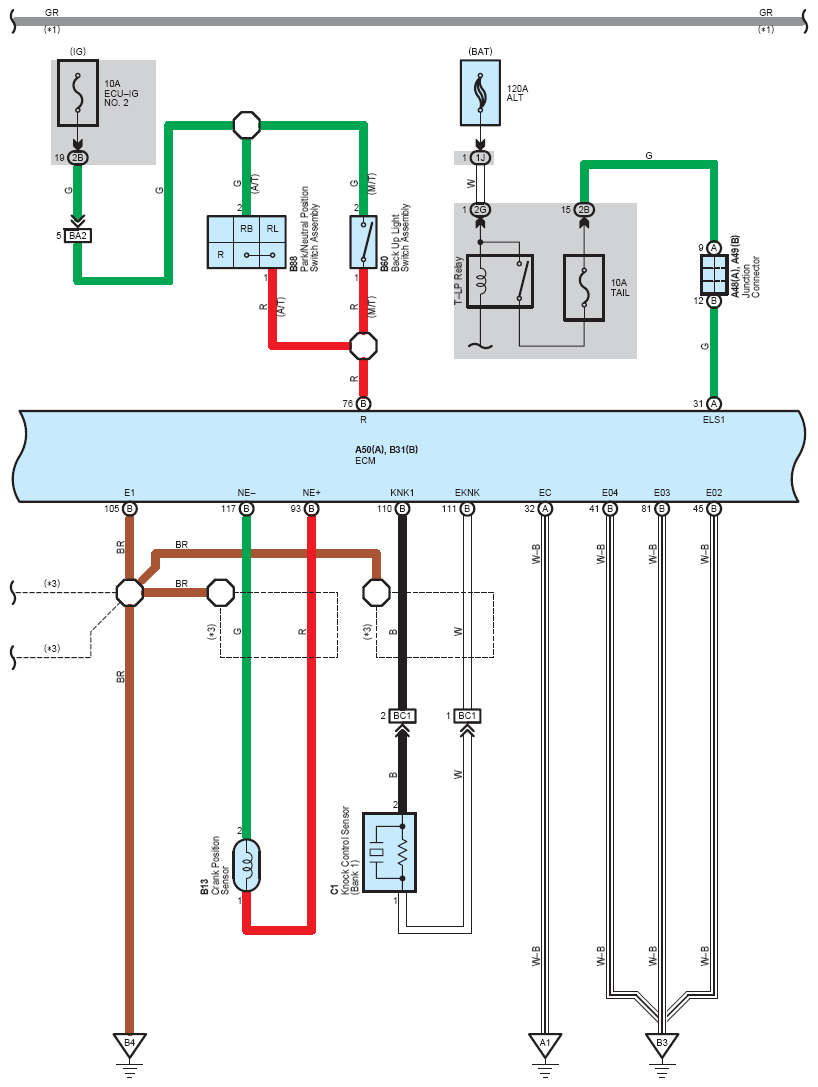

Fig 7: Engine Control (2ZR-FE) (Except TMC Made) System Wiring Diagram (7 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

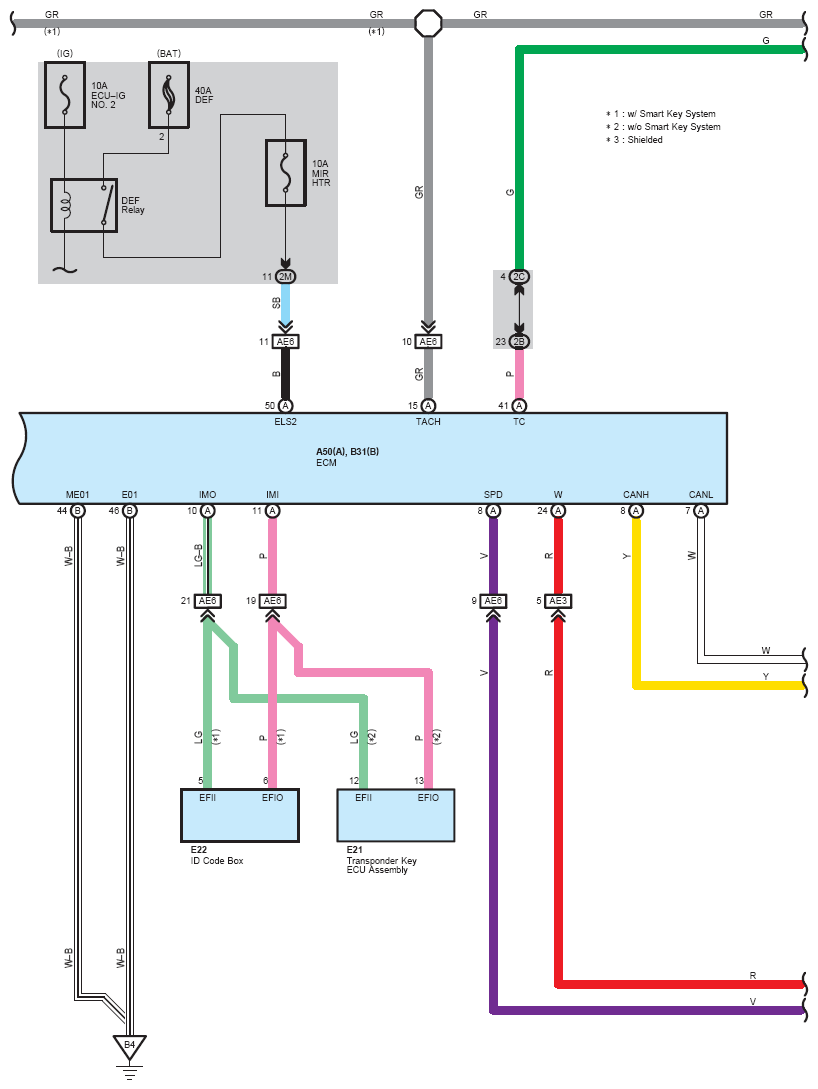

Fig 8: Engine Control (2ZR-FE) (Except TMC Made) System Wiring Diagram (8 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

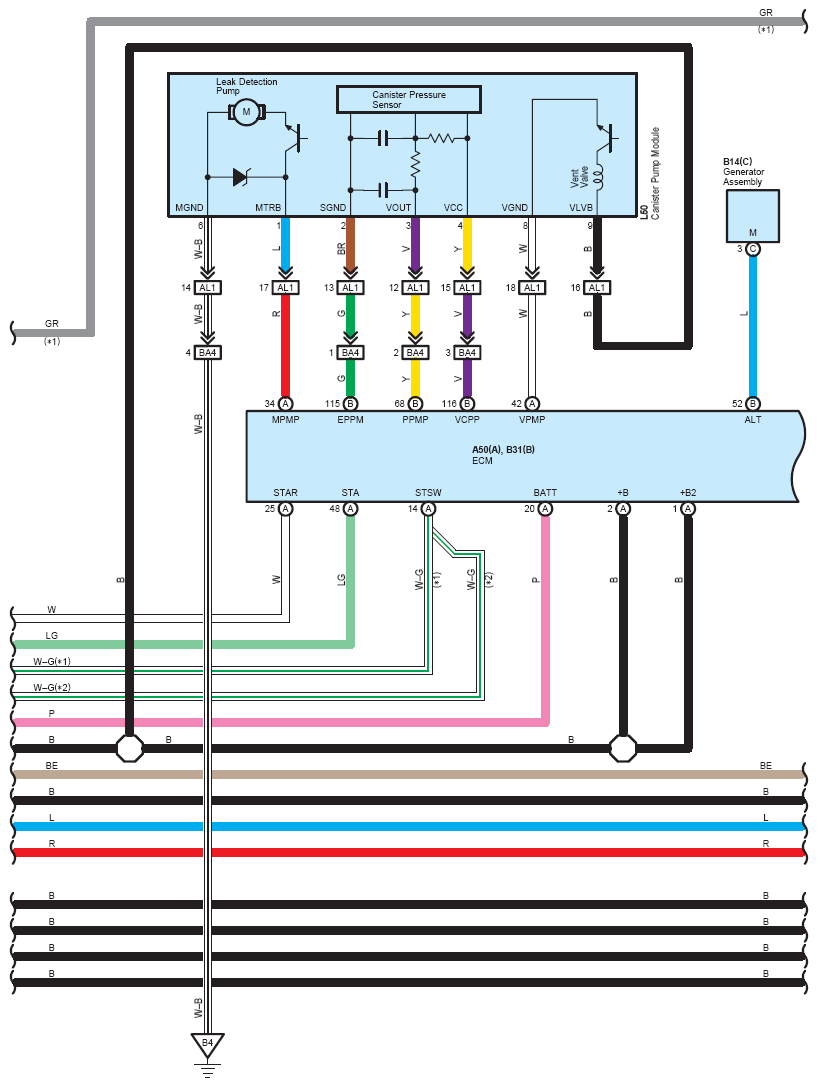

Fig 9: Engine Control (2ZR-FE) (Except TMC Made) System Wiring Diagram (9 Of 12)

Fig 10: Engine Control (2ZR-FE) (Except TMC Made) System Wiring Diagram (10 Of 12)

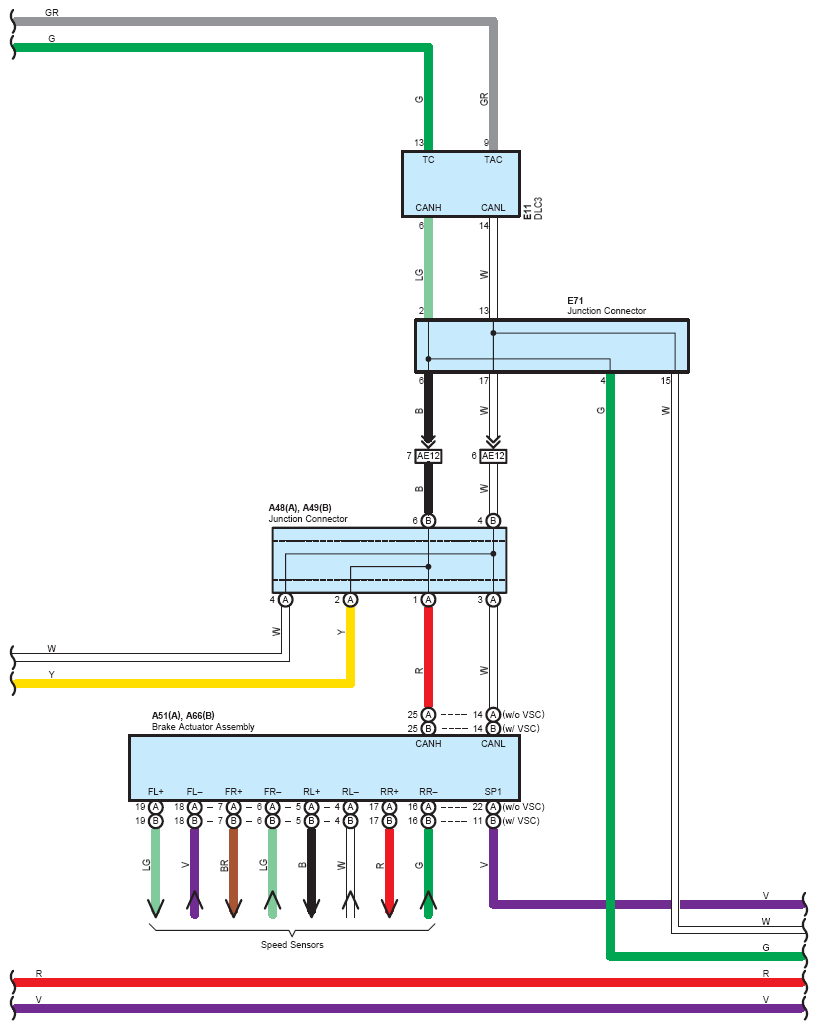

Fig 11: Engine Control (2ZR-FE) (Except TMC Made) System Wiring Diagram (11 Of 12)

Fig 12: Engine Control (2ZR-FE) (Except TMC Made) System Wiring Diagram (12 Of 12)
