Engine Control (2AZ-FE) (Except TMC Made): Notes

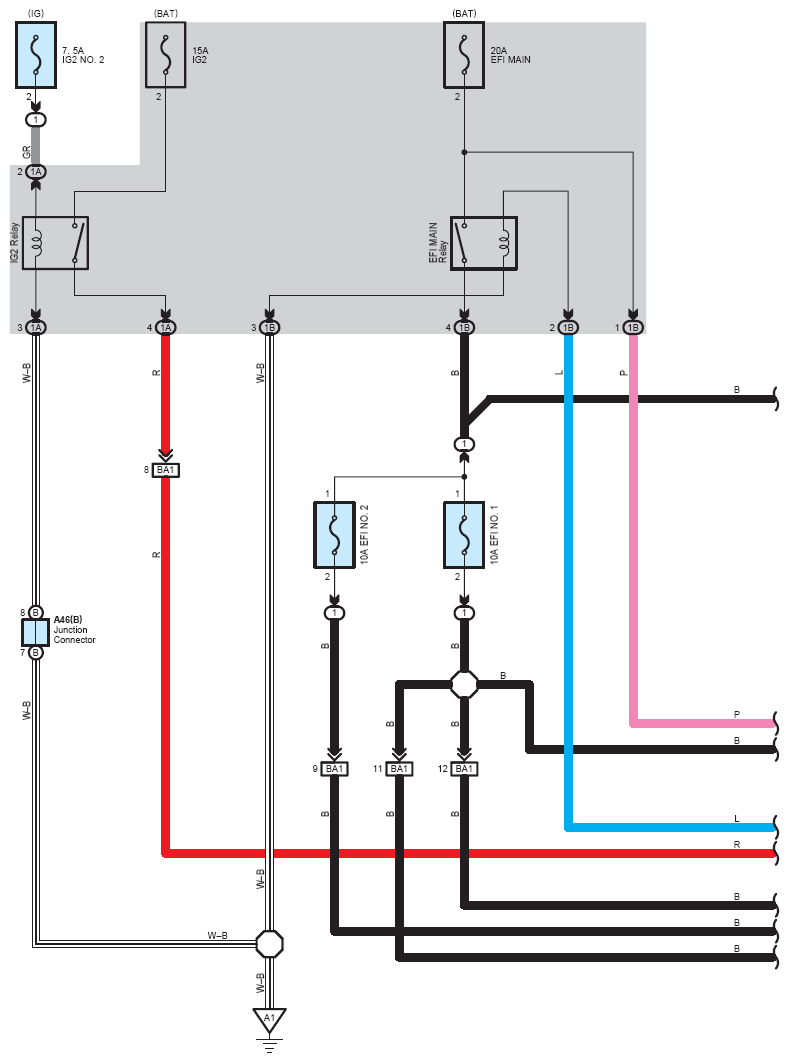

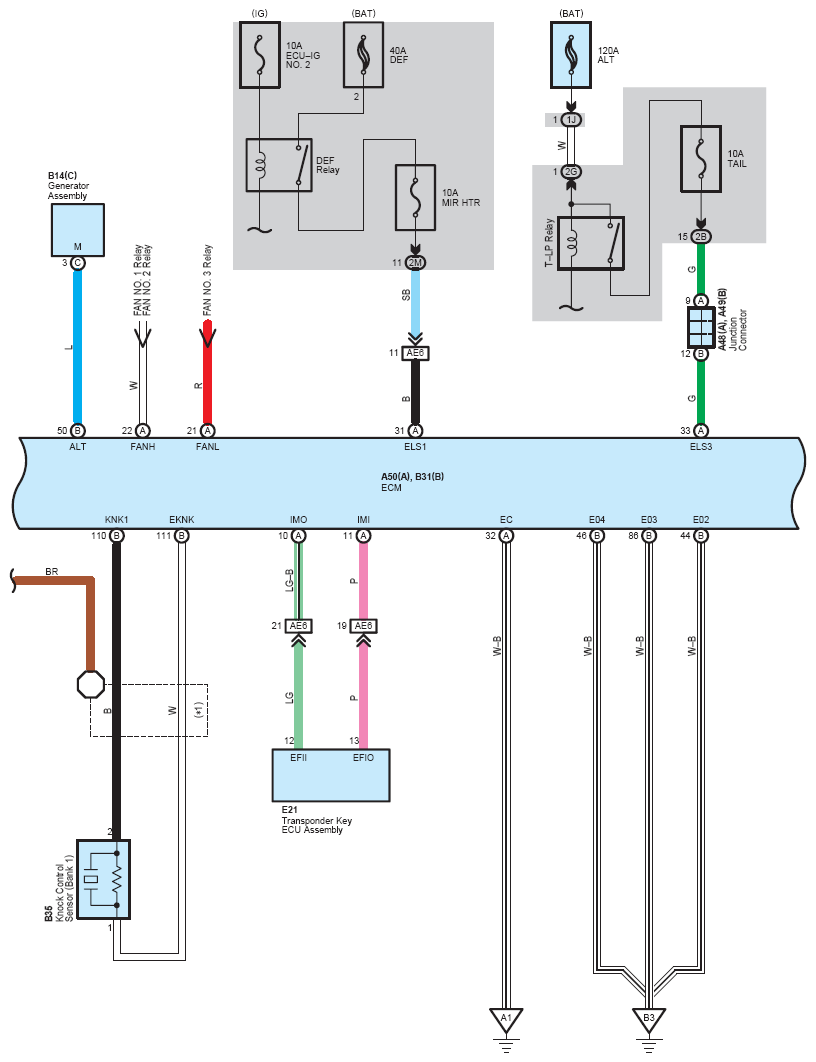

Fig 1: Engine Control (2AZ-FE) (Except TMC Made) System Wiring Diagram (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Engine Control (2AZ-FE) (Except TMC Made) System Wiring Diagram (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

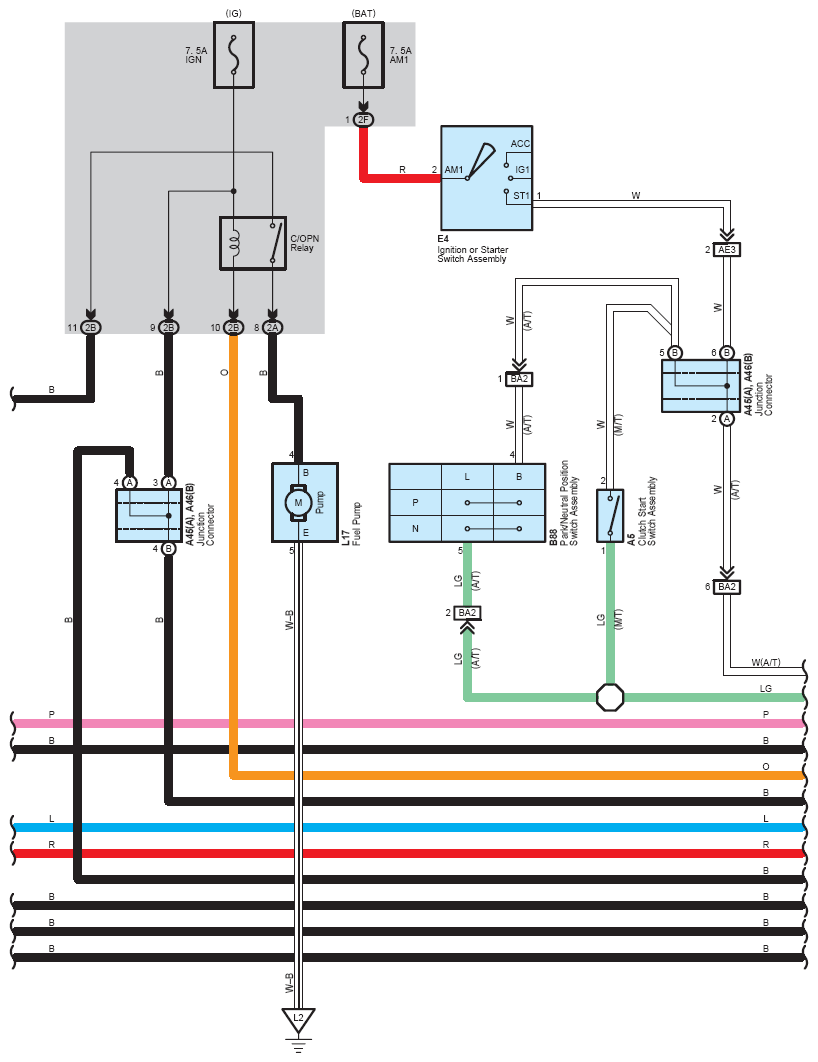

Fig 3: Engine Control (2AZ-FE) (Except TMC Made) System Wiring Diagram (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

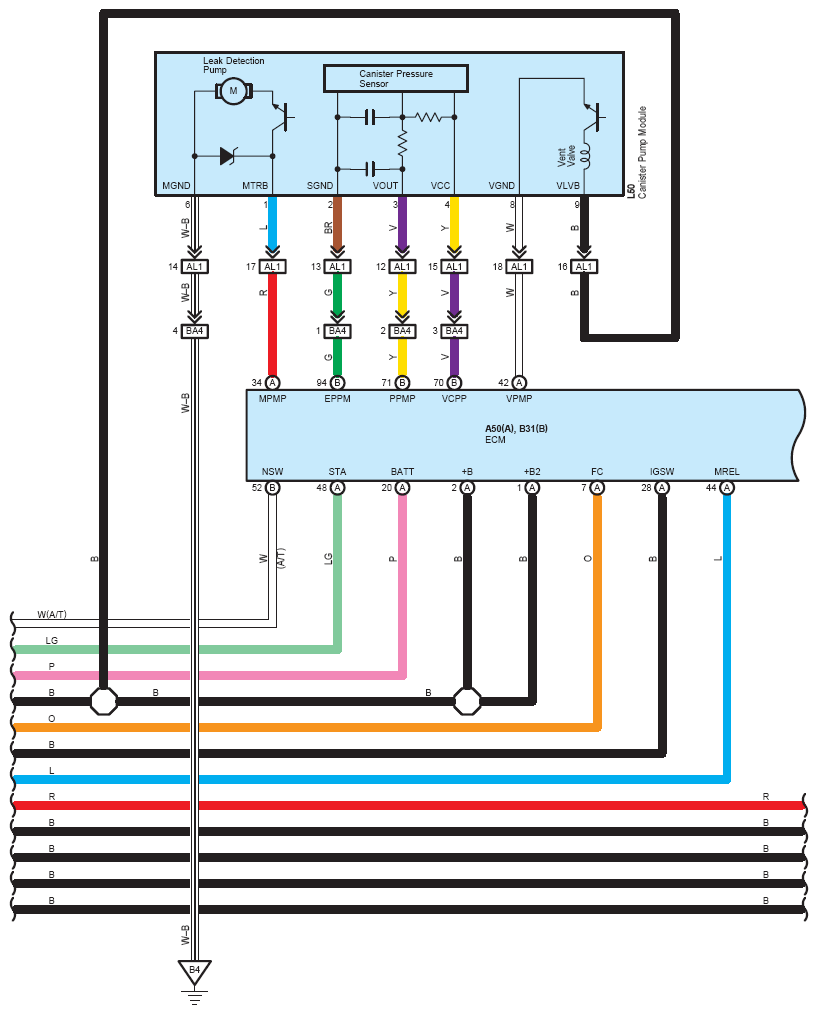

Fig 4: Engine Control (2AZ-FE) (Except TMC Made) System Wiring Diagram (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

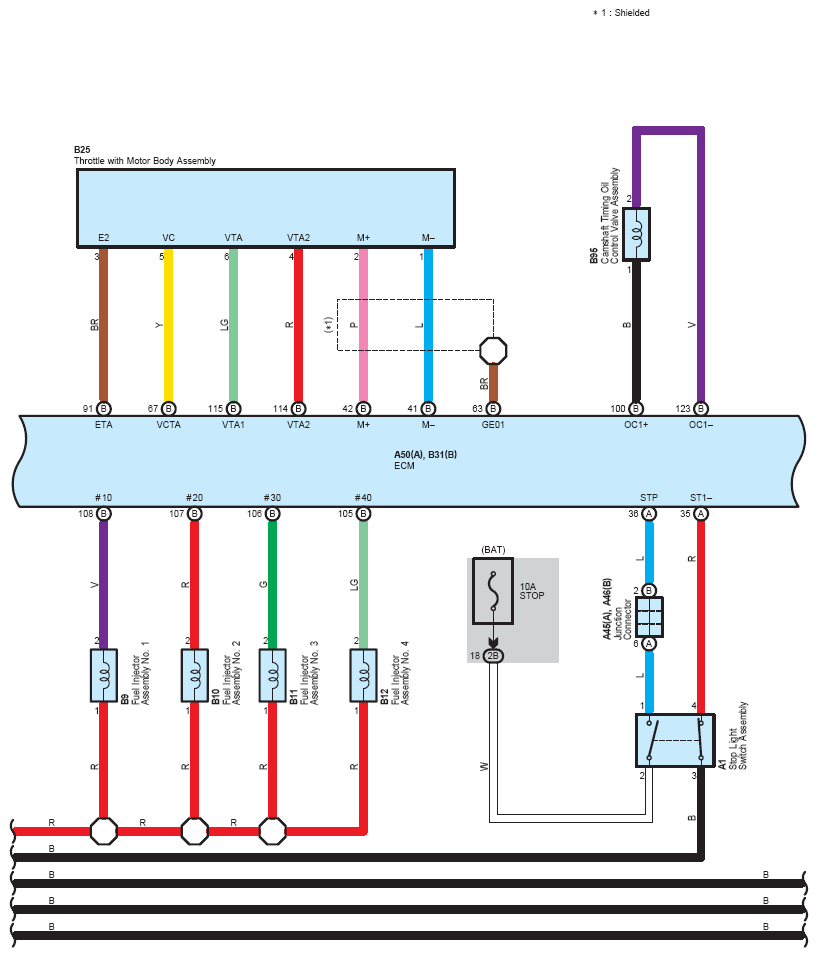

Fig 5: Engine Control (2AZ-FE) (Except TMC Made) System Wiring Diagram (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

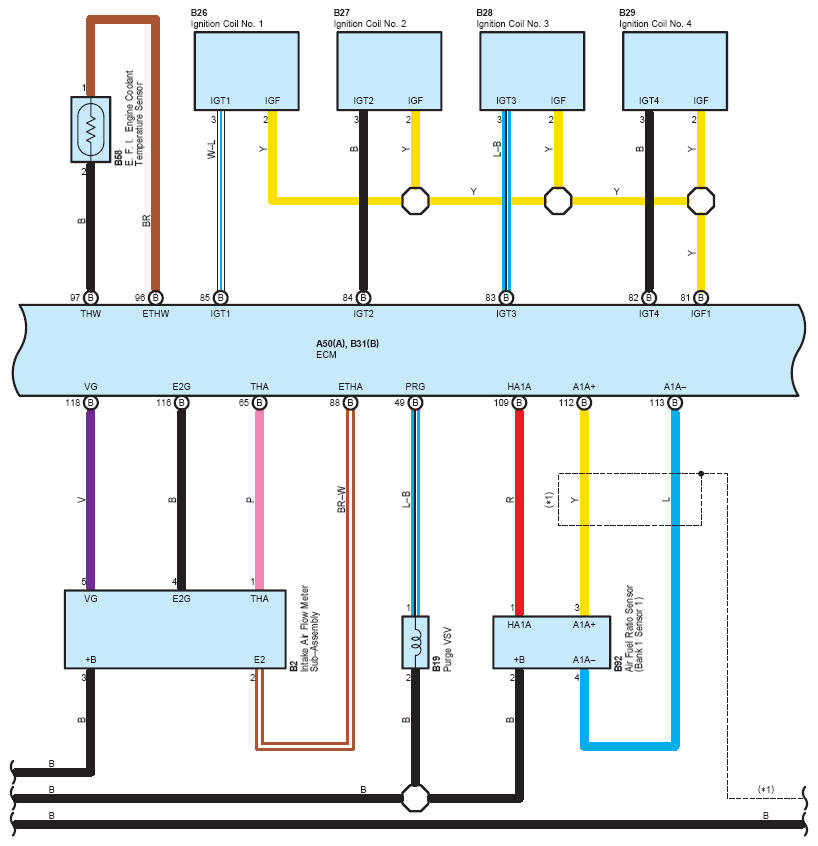

Fig 6: Engine Control (2AZ-FE) (Except TMC Made) System Wiring Diagram (6 Of 9)

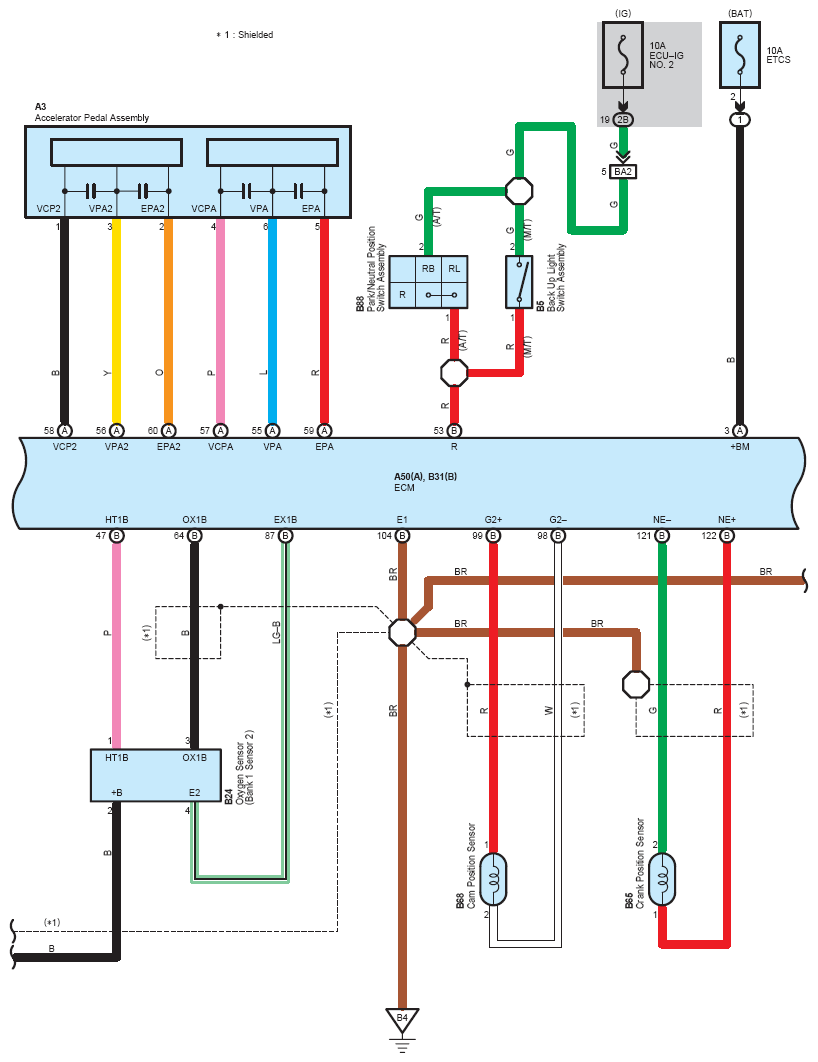

Fig 7: Engine Control (2AZ-FE) (Except TMC Made) System Wiring Diagram (7 Of 9)

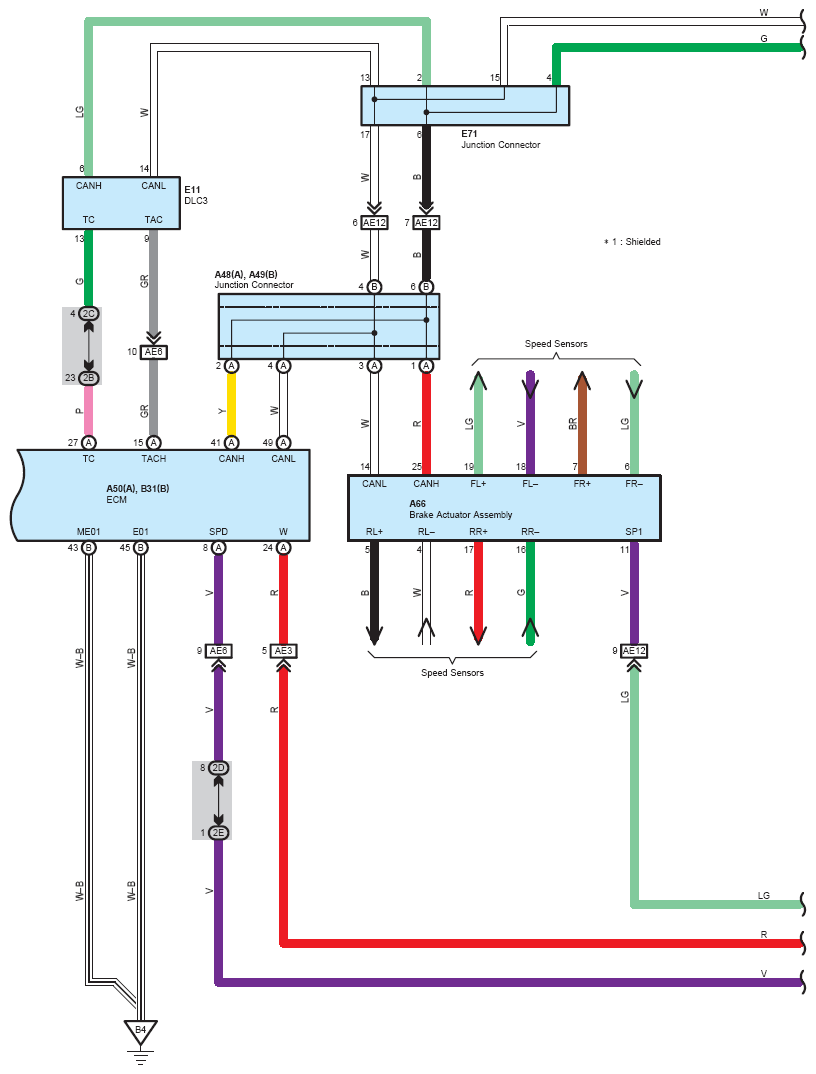

Fig 8: Engine Control (2AZ-FE) (Except TMC Made) System Wiring Diagram (8 Of 9)

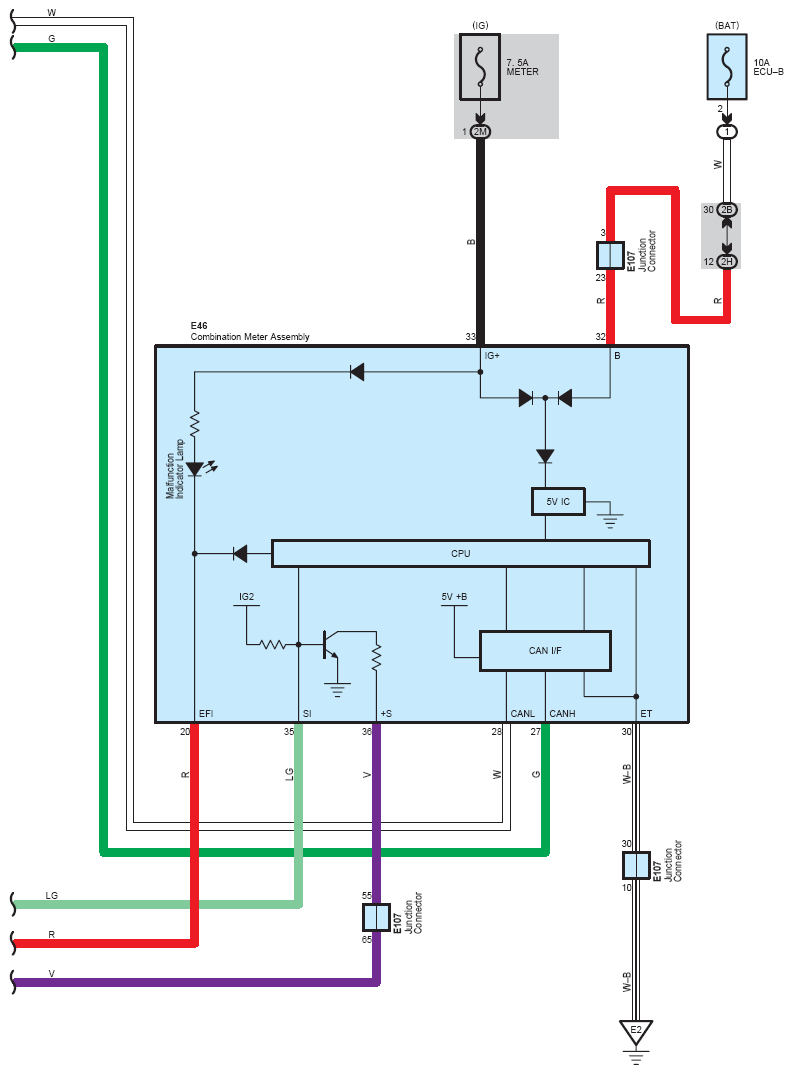

Fig 9: Engine Control (2AZ-FE) (Except TMC Made) System Wiring Diagram (9 Of 9)
