Cruise Control (TMC Made): Notes

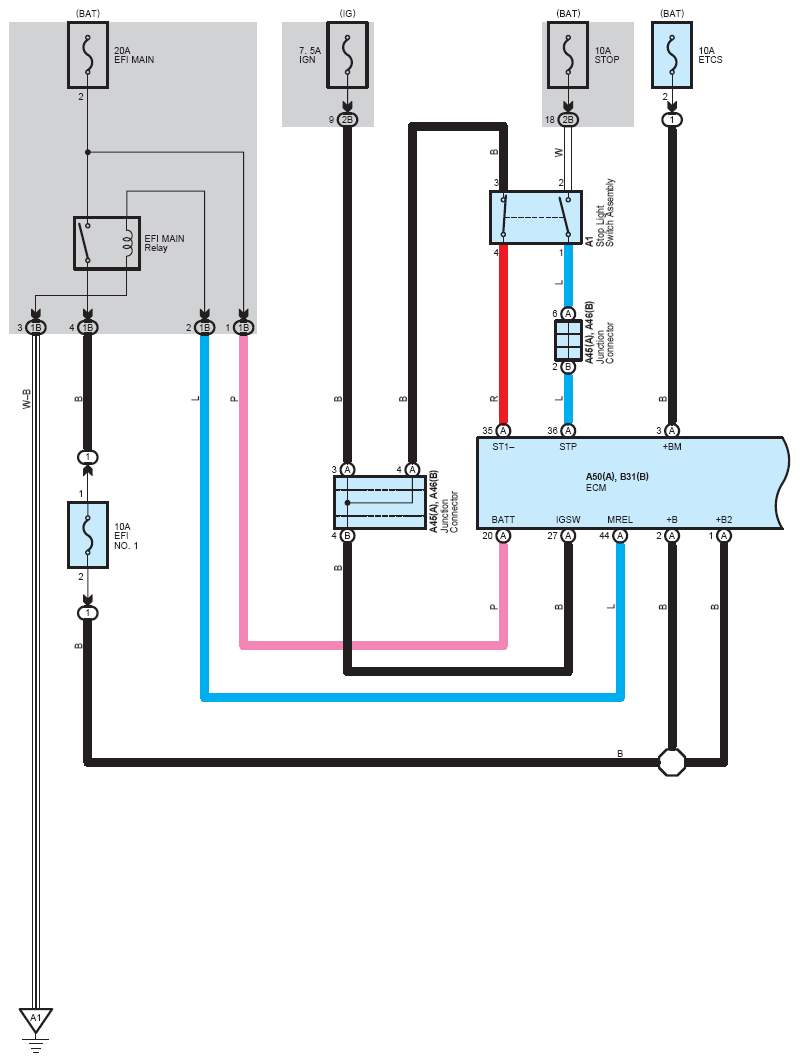

Fig 1: Cruise Control (TMC Made) System Wiring Diagram (1 Of 5)
G07115037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

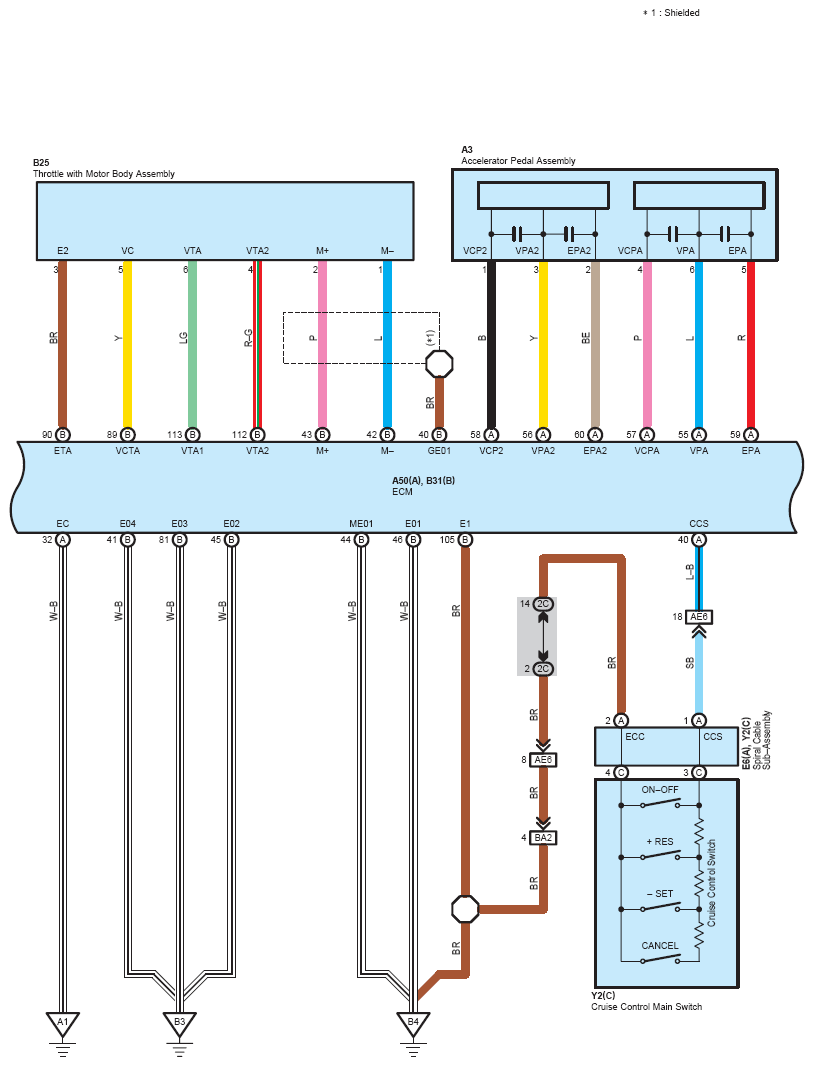

Fig 2: Cruise Control (TMC Made) System Wiring Diagram (2 Of 5)
G07115038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

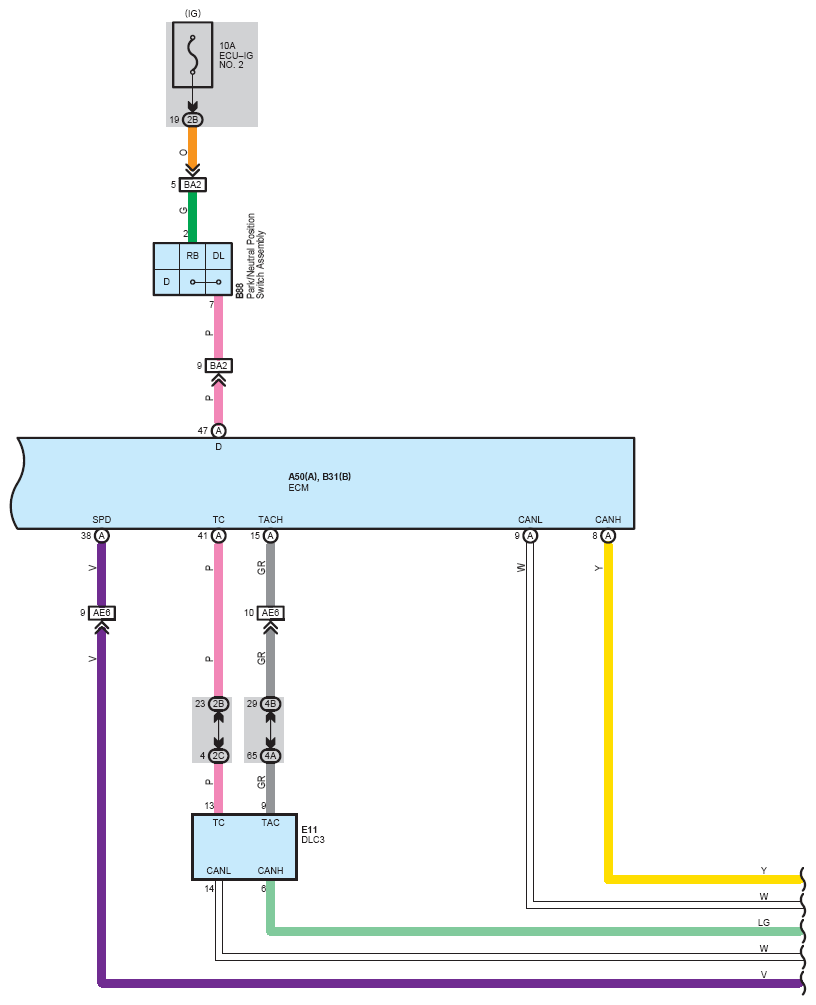

Fig 3: Cruise Control (TMC Made) System Wiring Diagram (3 Of 5)
G07115039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

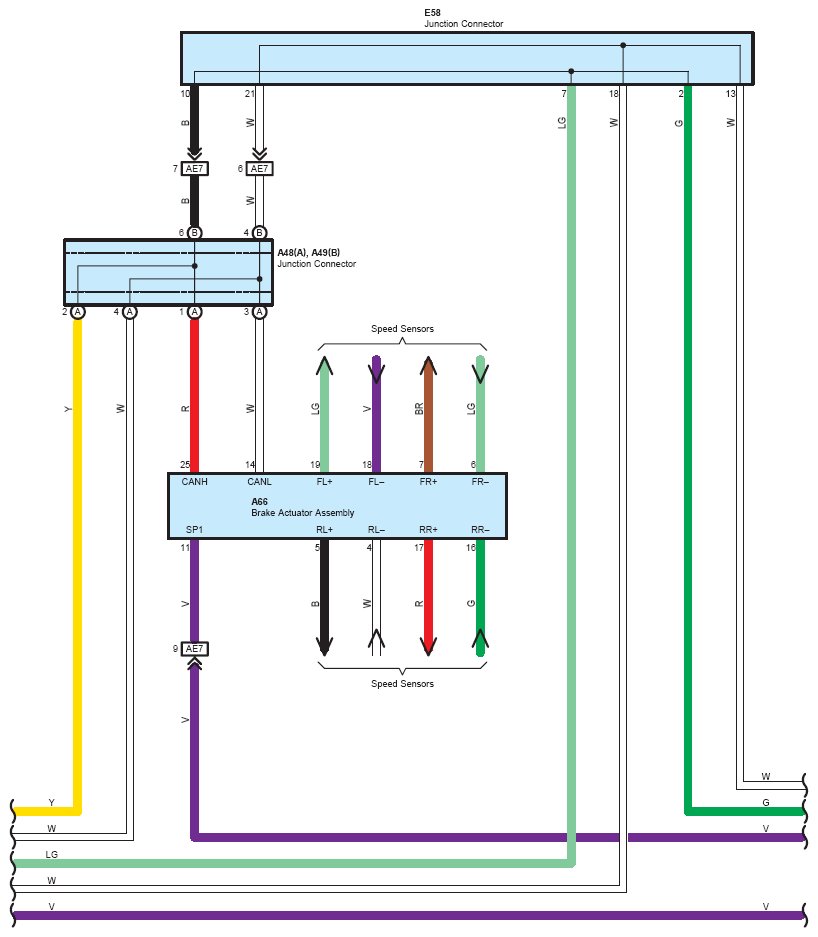

Fig 4: Cruise Control (TMC Made) System Wiring Diagram (4 Of 5)
G07115040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

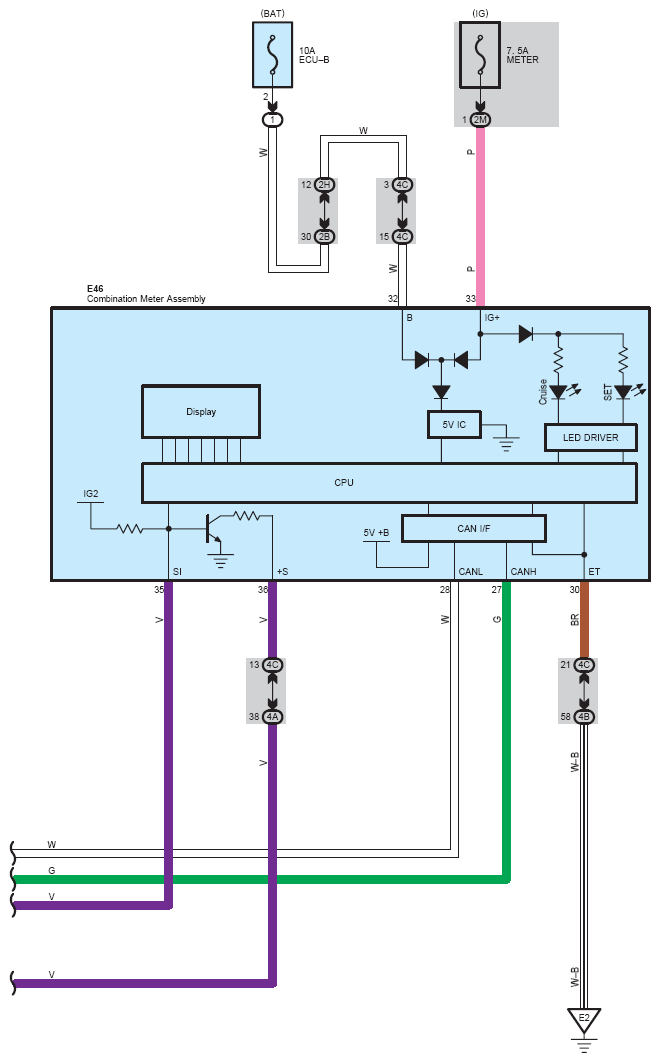

Fig 5: Cruise Control (TMC Made) System Wiring Diagram (5 Of 5)
G07115041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
