Charging (Except TMC Made): Notes

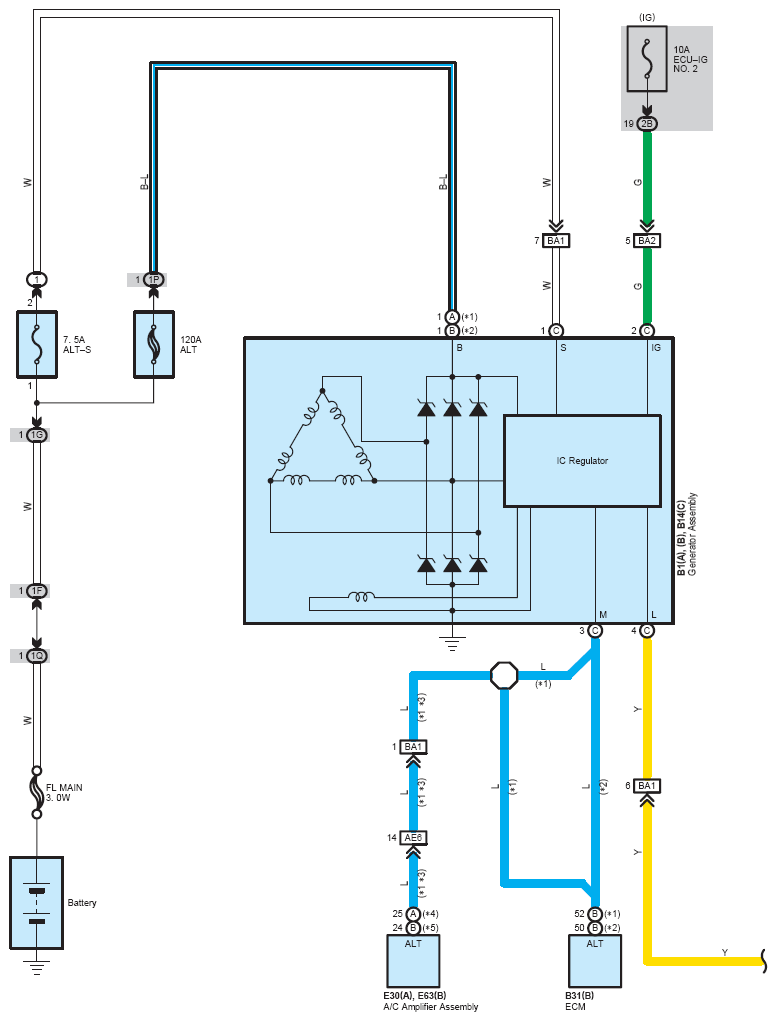

Fig 1: Charging (Except TMC Made) System Wiring Diagram (1 Of 2)
G07115107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

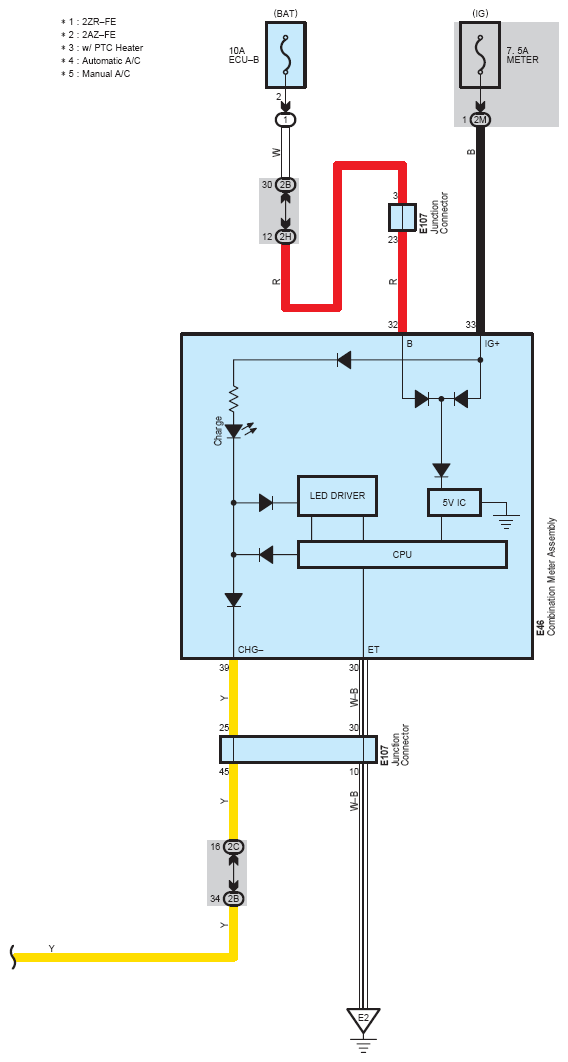

Fig 2: Charging (Except TMC Made) System Wiring Diagram (2 Of 2)
G07115108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
