Corolla Base, Standard
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM System Circuits
>>
Cooling Fan (TMC Made)
>>
Notes
Cooling Fan (TMC Made): Notes

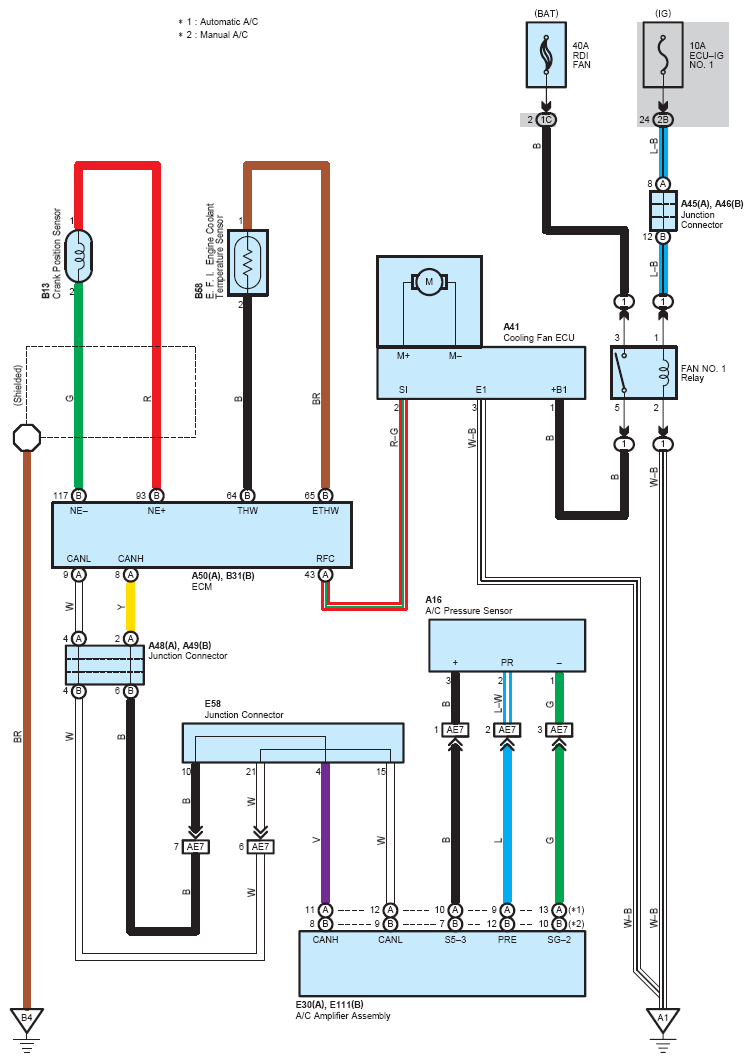

Fig 1: Cooling Fan (TMC Made) System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
