OEM System Circuits (Except Hybrid): Charging: Notes

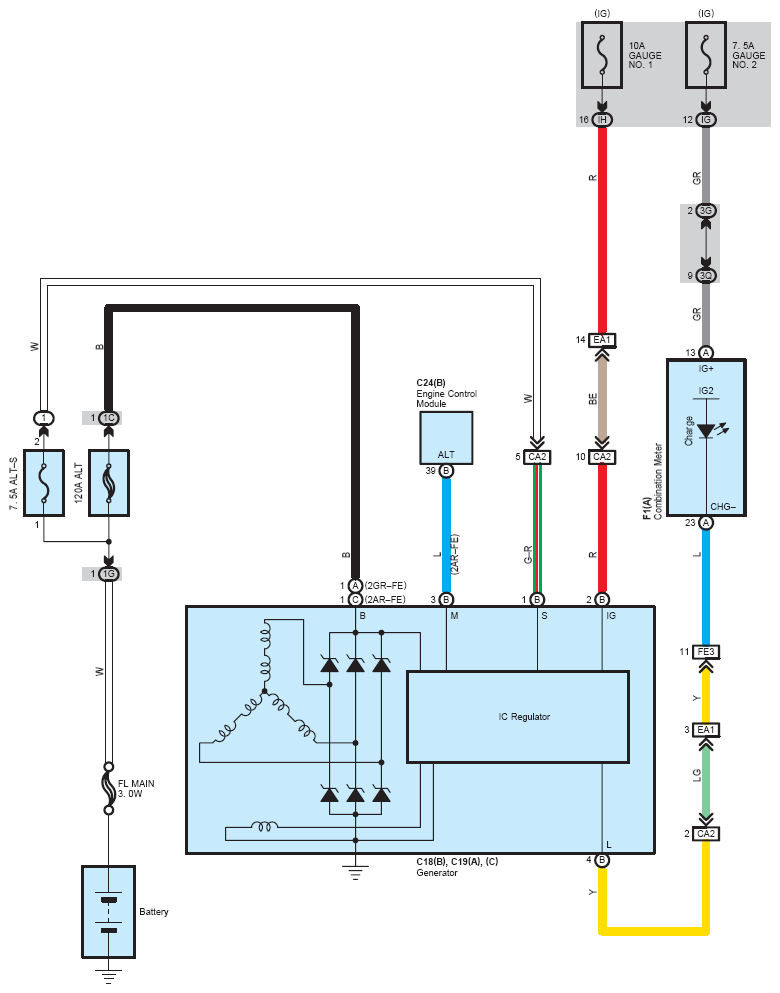

Fig 1: Charging System Wiring Diagram

G07113809

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
