Valve Body Assembly: Components: Illustration

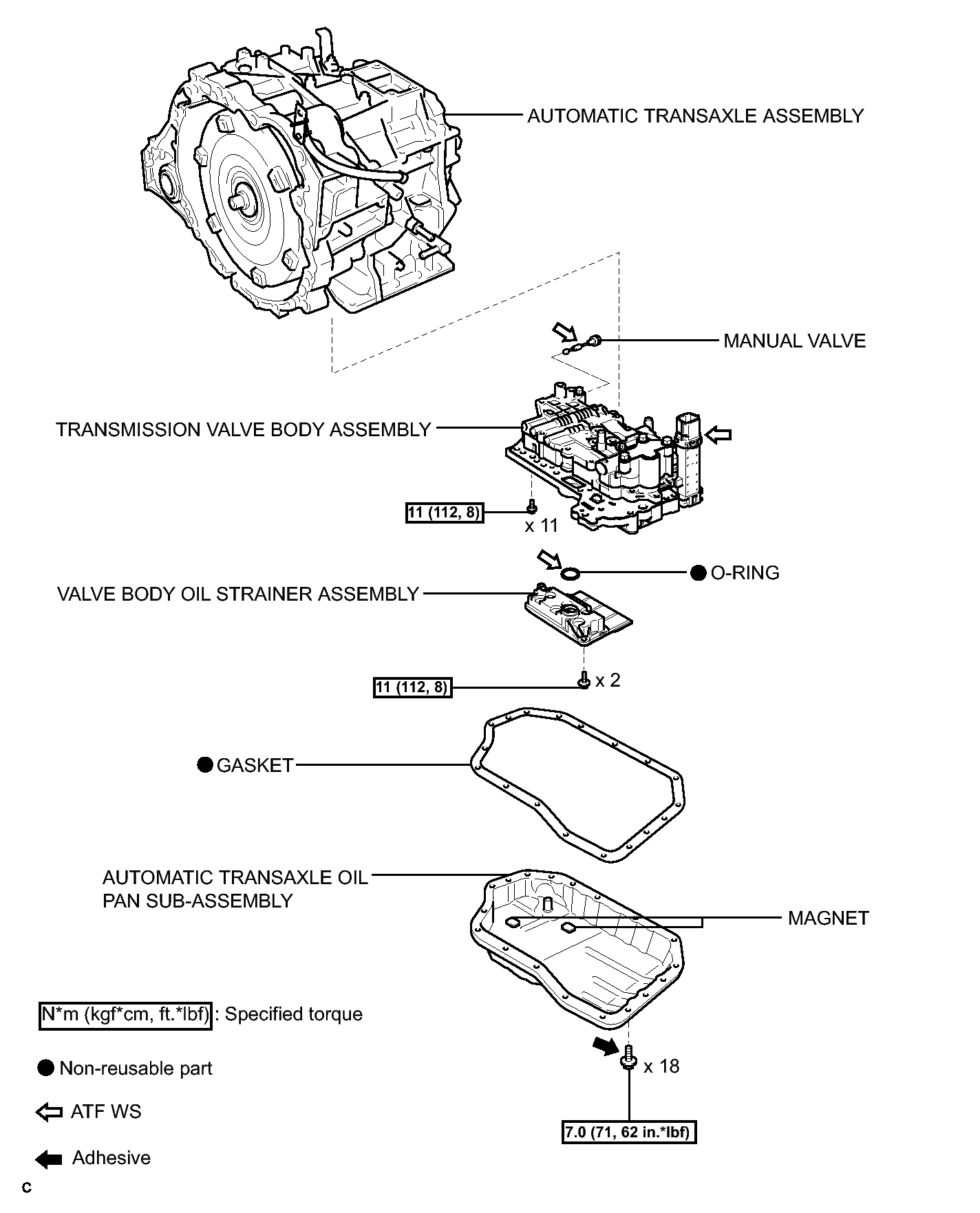

Fig 1: Identifying Valve Body Assembly Replacement Components With Torque Specifications

GTY204558

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
