Transmission Wire: Components: Illustration

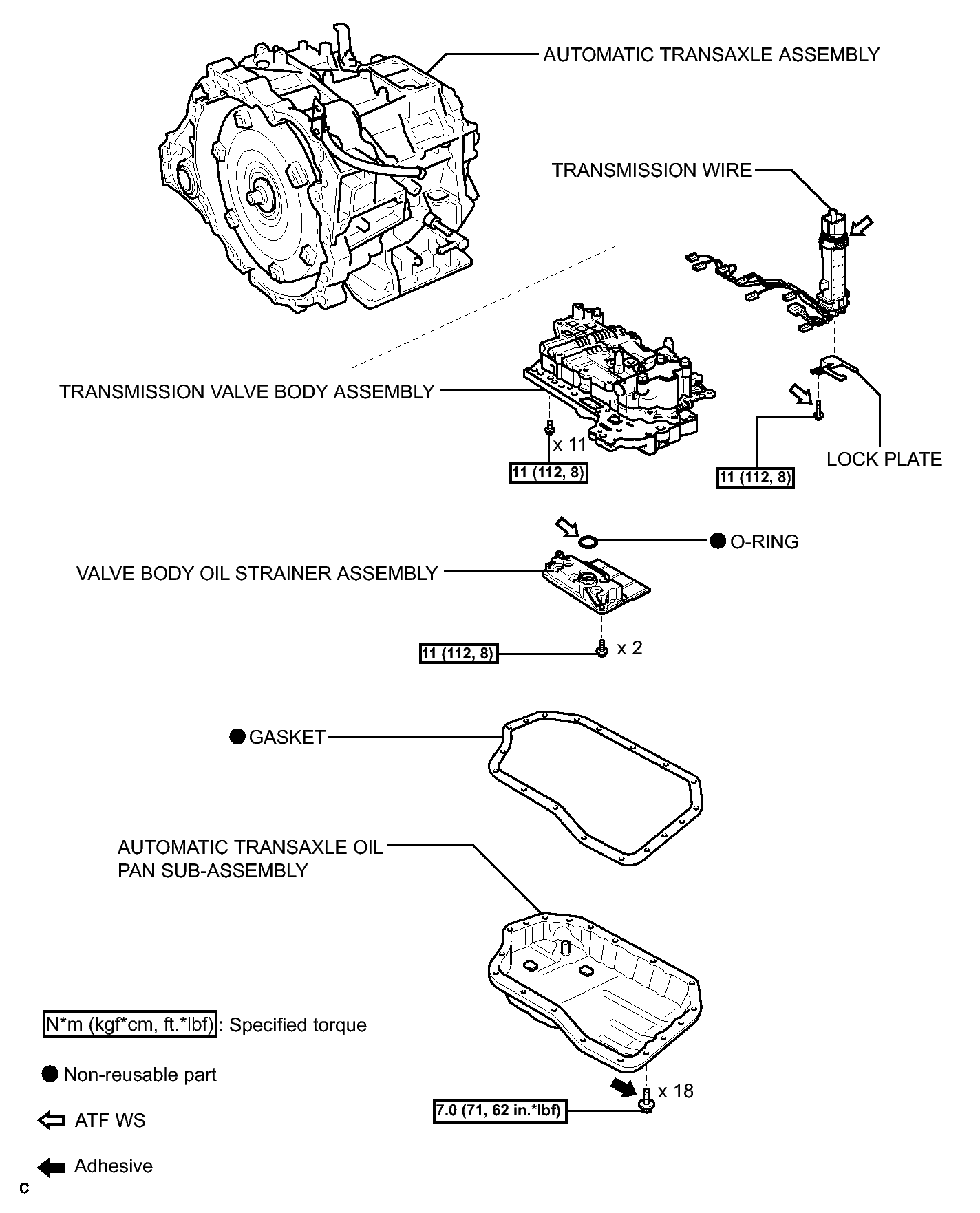

Fig 1: Identifying Transmission Wire Replacement Components With Torque Specifications

GTY204557

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
