Shift Lever: Components: Illustration

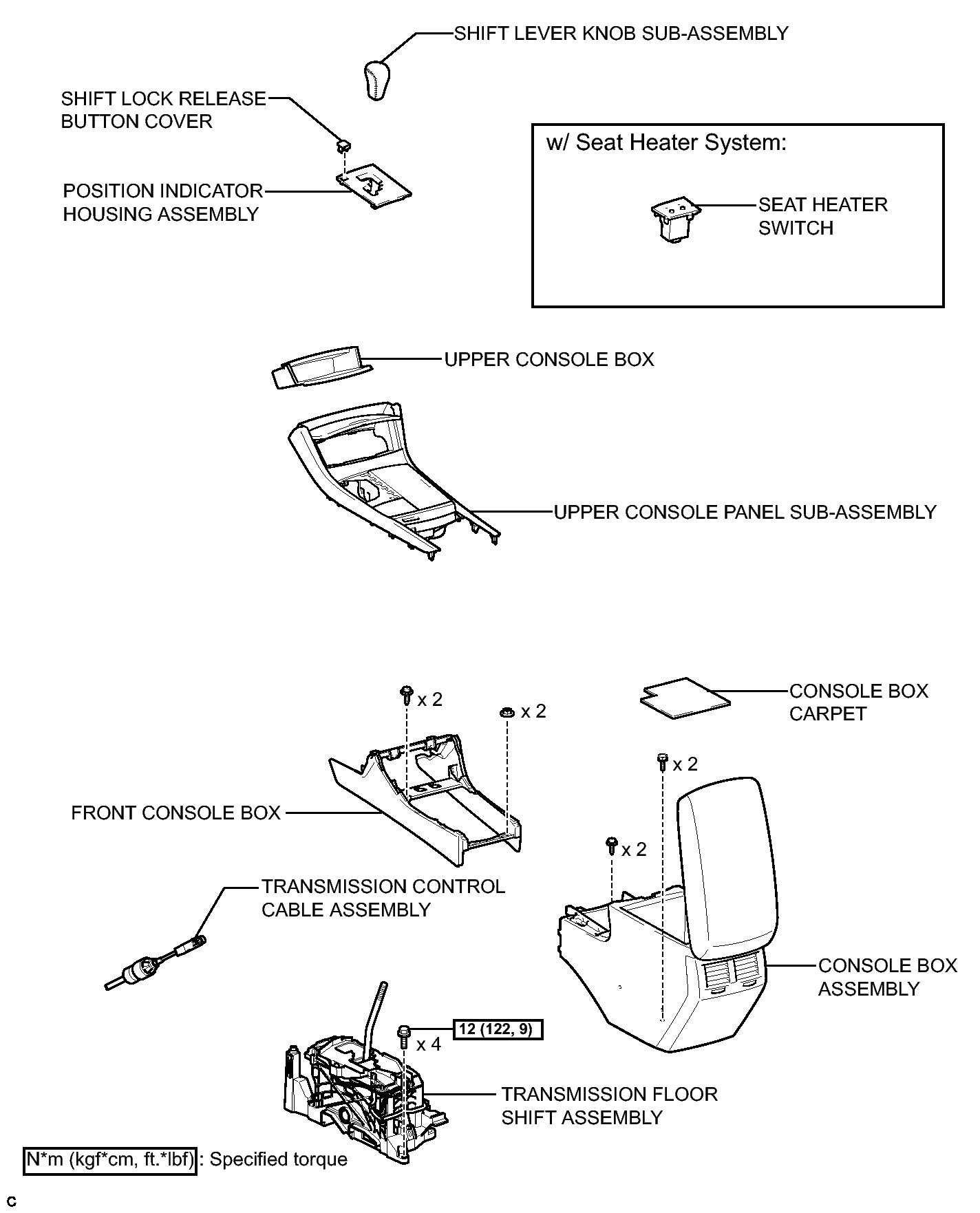

Fig 1: Identifying Shift Lever Replacement Components With Torque Specifications (1 Of 2)
GTY302510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

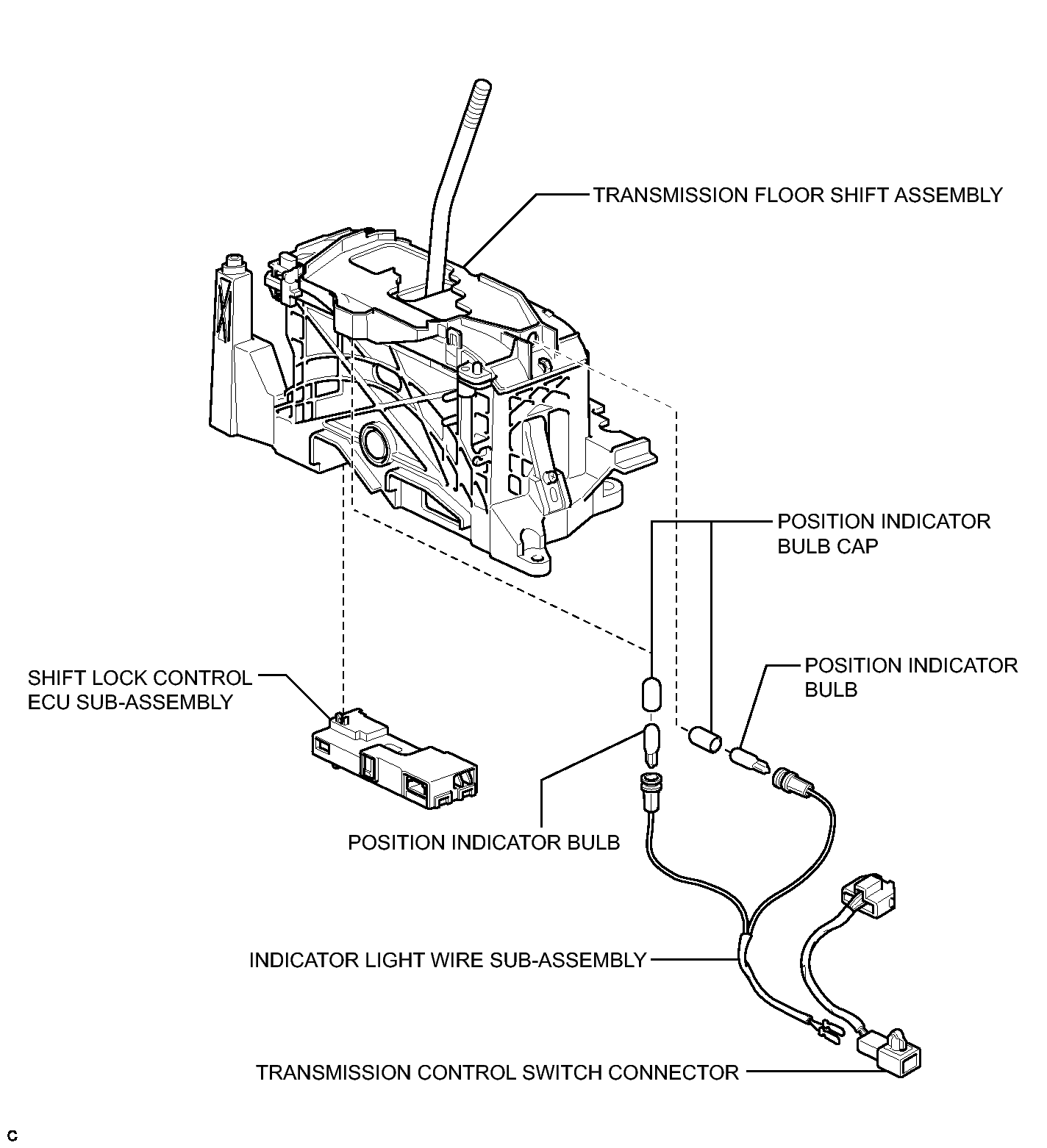

Fig 1: Identifying Shift Lever Replacement Components With Torque Specifications (2 Of 2)
GTY186405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
