Differential Case: Components: Illustration

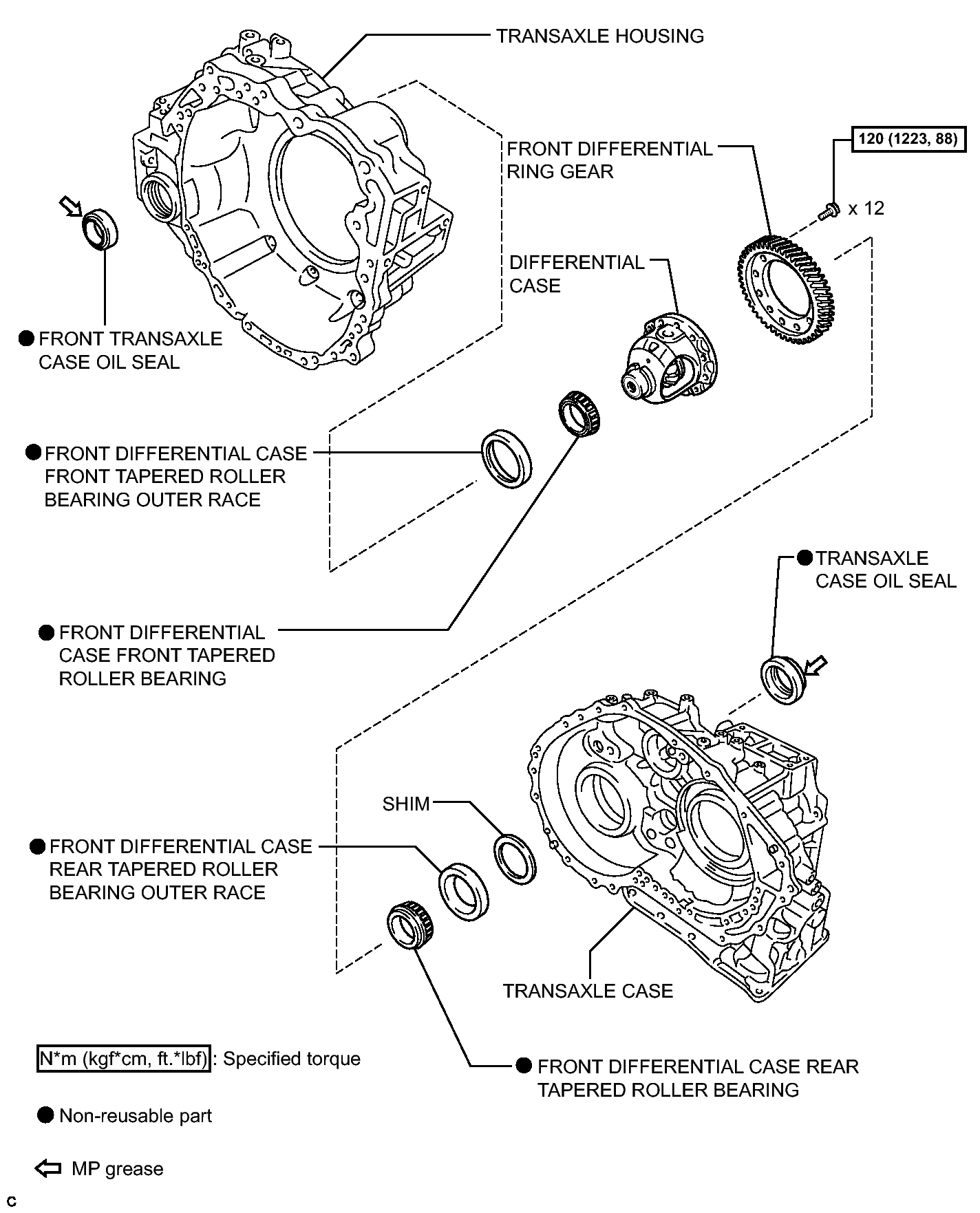

Fig 1: Identifying Differential Case Replacement Components With Torque Specifications (1 Of 2)
GTY204566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

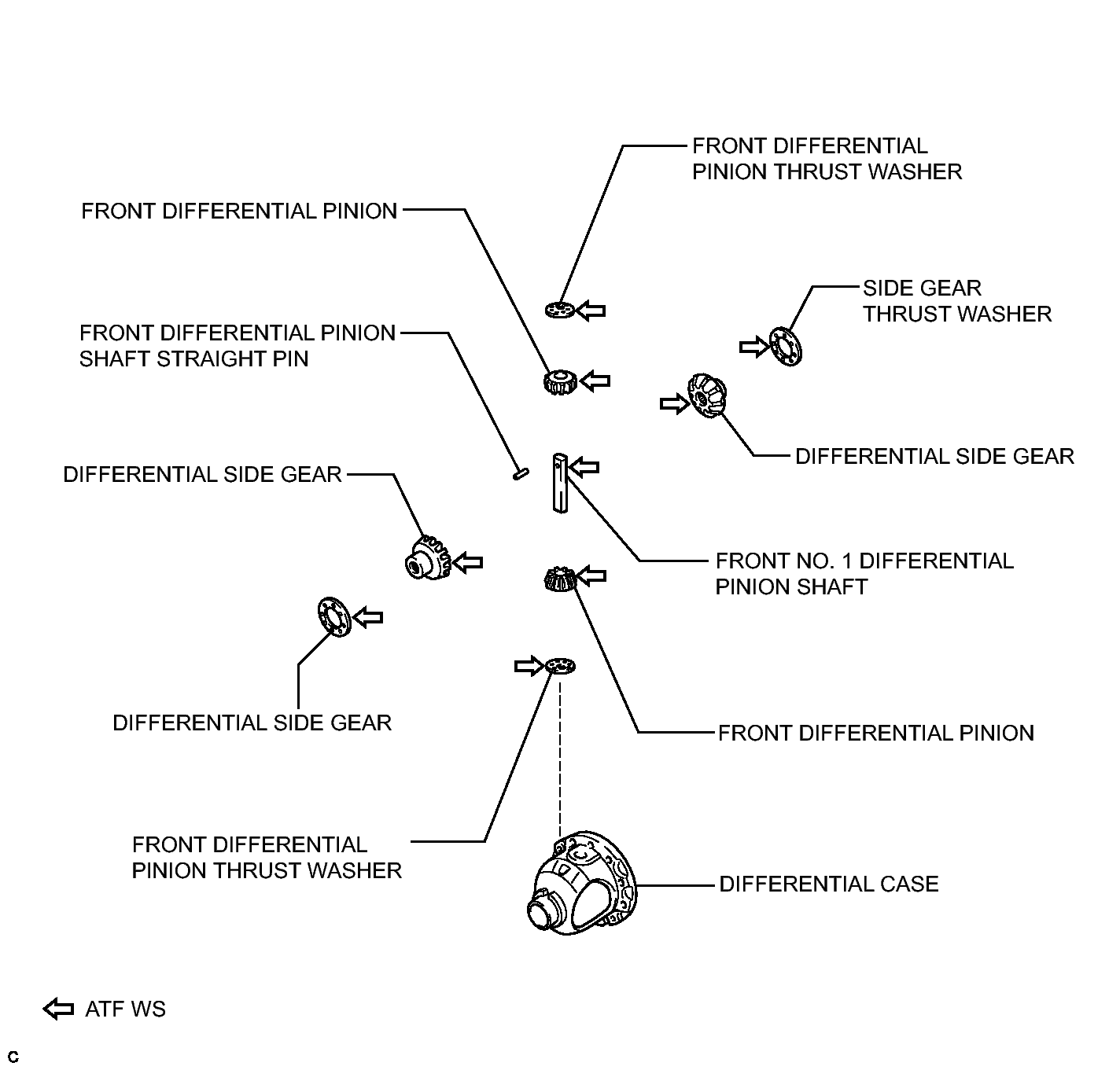

Fig 1: Identifying Differential Case Replacement Components With Torque Specifications (2 Of 2)
GTY168457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
