Fuel Tank: Components: Illustration

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (1 Of 3)
GTY192133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

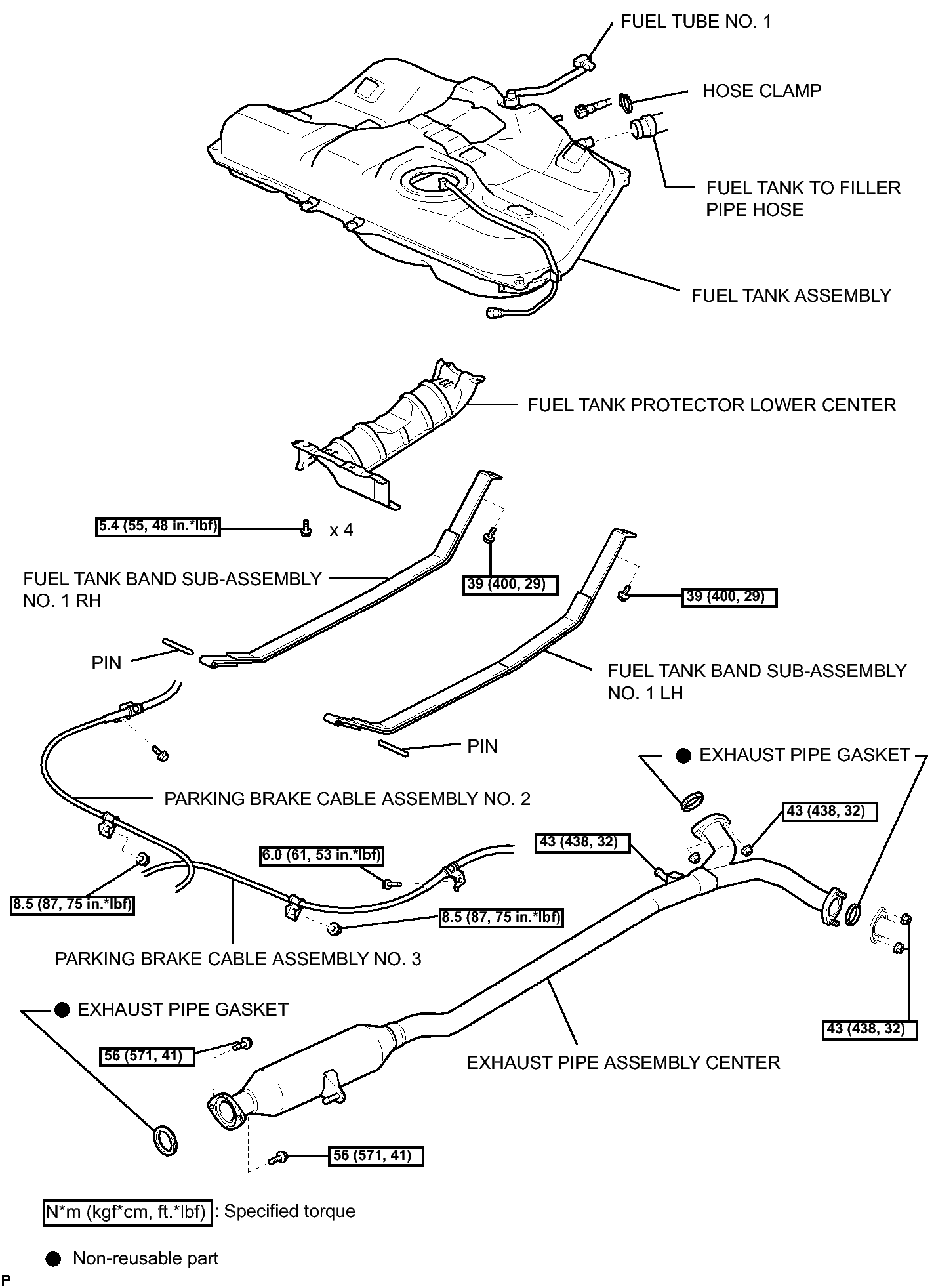

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (2 Of 3)
GTY192303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (3 Of 3)
GTY191894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
